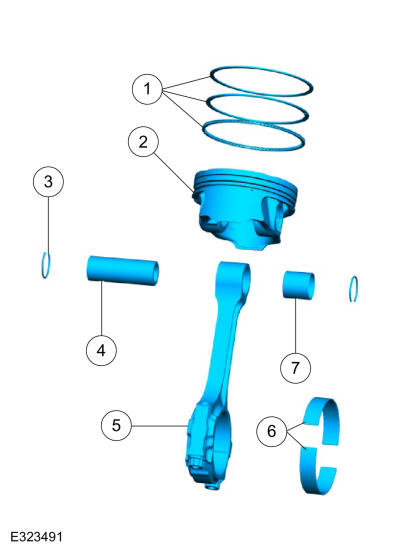

Exploded View Of Piston Assembly
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Part Number |
Description |
| 1 |
6148 |
Piston ring kit (8 required) |
| 2 |
6108 |
Piston (8 required) |
| 3 |
6140 |
Piston pin retainer (16 required) |
| 4 |
6135 |
Piston pin (8 required) |
| 5 |
6200 |
Connecting rod assembly (8 required) |
| 6 |
6211 |
Connecting rod bearing (8 required) |
| 7 |
6207 |
Connecting rod bushing (8 required) |
