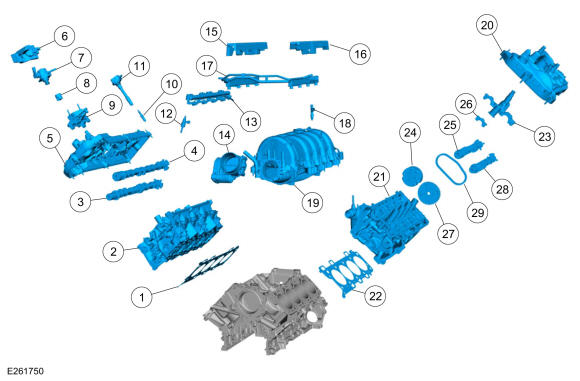

Exploded View Of Engine -- Upper Components
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6051 | RH cylinder head gasket |
| 2 | 6049 | RH cylinder head |
| 3 | 6A272 | RH exhaust camshaft |
| 4 | 6A270 | RH intake camshaft |
| 5 | 6582 | RH valve cover |
| 6 | 9U550 | Insulator |
| 7 | 9D376 | High pressure fuel pump |
| 8 | 9C587 | Tappet |
| 9 | -- | Camshaft bearing cap (part of 6049) |
| 10 | 12405 | Spark plug (8 required) |
| 11 | 12029 | Ignition coil on plug (8 required) |
| 12 | 9G929 | Fuel injector (Direct injection) (8 required) |
| 13 | 9F797 | Fuel rail (Direct injection) (2 required) |
| 14 | 9F991 | Throttle body |
| 15 | 6P013 | RH fuel injector insulator shield |
| 16 | 6P013 | LH fuel injector insulator shield |
| 17 | 9F792 | Fuel rail (PFI) |
| 18 | 9F593 | Fuel injector (PFI) (8 required) |
| 19 | 9424 | Intake manifold |
| 20 | 6582 | LH valve cover |
| 21 | 6049 | LH cylinder head |
| 22 | 6051 | LH cylinder head gasket |
| 23 | -- | Camshaft bearing cap (part of 6049) (2 required) |
| 24 | 6256 | Intake camshaft Variable Camshaft Timing (VCT) (2 required) |
| 25 | 6A271 | LH intake camshaft |
| 26 | -- | Camshaft bearing cap (part of 6049) (14 required) |
| 27 | 6C525 | Exhaust camshaft Variable Camshaft Timing (VCT) (2 required) |
| 28 | 6A273 | LH exhaust camshaft |
| 29 | 6268 | Secondary timing chain (2 required) |
