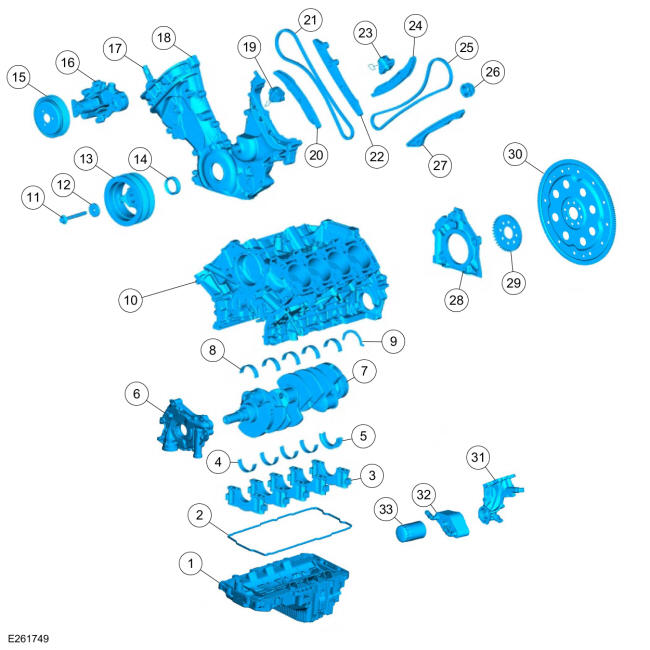

Exploded View Of Engine -- Lower Components

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	6675	Oil pan
2	6C878	Oil pan gasket
3	--	Crankshaft main bearing cap (part of 6010) (5 required)
4	6A338	Crankshaft lower main bearing (4 required)
5	6A339	Crankshaft lower thrust main bearing
6	6600	Oil pump
7	6303	Crankshaft
8	6333	Crankshaft upper main bearing (5 required)
9	6A341	Thrust washer
10	6010	Cylinder block
11	6A340	Crankshaft pulley bolt
12	N807033	Crankshaft pulley washer
13	6316	Crankshaft pulley
14	6700	Crankshaft front oil seal
15	8509	Coolant pump pulley
16	8501	Coolant pump
17	6B297	Variable Camshaft Timing (VCT) variable force solenoid (2 required)
18	6019	Engine front cover
19	6L266	RH primary timing chain tensioner
20	6K255	RH timing chain tensioner arm
21	6268	RH primary timing chain
22	6M256	RH timing chain guide
23	6L266	LH primary timing chain tensioner
24	6K255	LH timing chain tensioner arm
25	6268	LH primary timing chain
26	6306	Crankshaft sprocket
27	6B274	LH timing chain guide
28	6K318	Crankshaft rear seal retainer plate
29	12A227	Crankshaft sensor ring
30	6375	Flexplate (automatic transmission)
31	6881	Oil filter adapter
32	6A642	Oil cooler
33	6731	Oil filter
