Engine Oil Flow Illustration

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

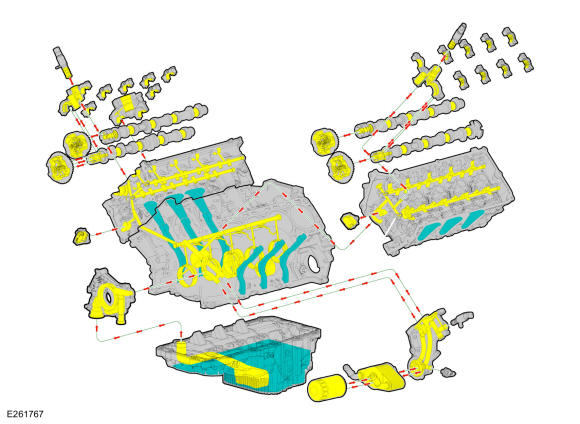

GFD460826Courtesy of FORD MOTOR COMPANY
Item Description
Yellow High pressure oil
Blue Oil return low pressure
