Port Injection Fuel Rail RH: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During the removal or installation of components, cap, tape or otherwise appropriately protect all openings and tubes/fittings to prevent the ingress of dirt or other contamination. Remove caps, tape and other protective materials prior to installation.
  1. NOTE: Make sure that new fuel injector O-ring seals are installed.

    Install the new fuel injector O-ring seals and the fuel injector retaining clips onto the fuel injectors. Lubricate the new fuel injector O-ring seals with clean engine oil. Refer to: Specifications .

    GFD459204Courtesy of FORD MOTOR COMPANY

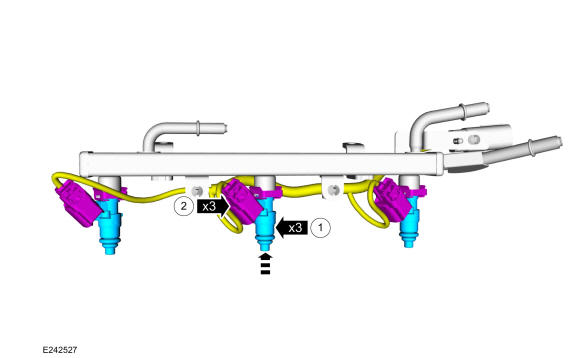

    1. Install the fuel injectors into the fuel rail.
    2. Connect the fuel injector electrical connectors.
    GFD460714Courtesy of FORD MOTOR COMPANY

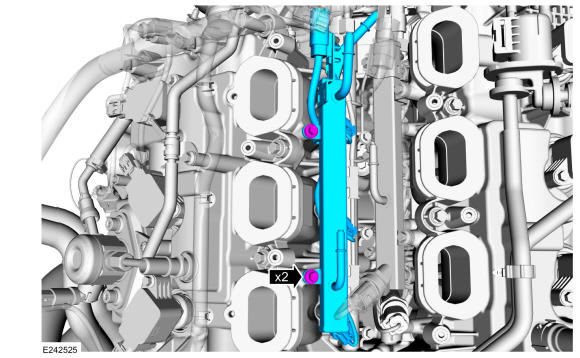

  3. NOTE: Ensure that the wiring harness is not damaged during the fuel rail installation.

    Install the fuel rail, push down on the fuel rail above the injectors, then install and tighten the fuel rail retaining bolts.

    Torque: 89 lb.in (10 Nm)

    GFD460500Courtesy of FORD MOTOR COMPANY

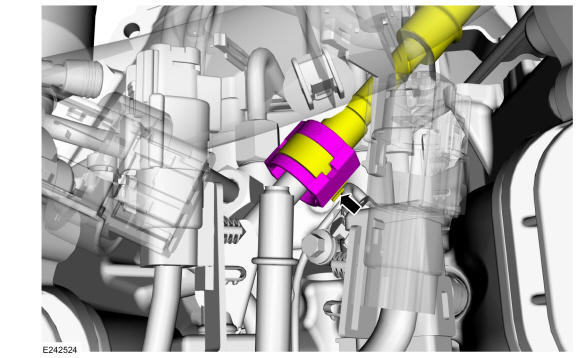

  4. Connect the fuel rail fuel feed tube quick release coupling. Refer to Quick Release Coupling
    GFD460499Courtesy of FORD MOTOR COMPANY

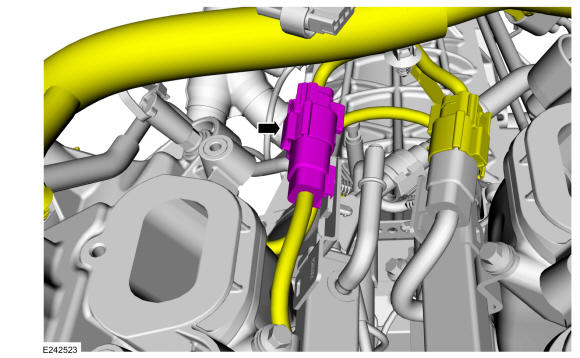

  5. Connect the fuel rail harness main electrical connector.
    GFD460498Courtesy of FORD MOTOR COMPANY

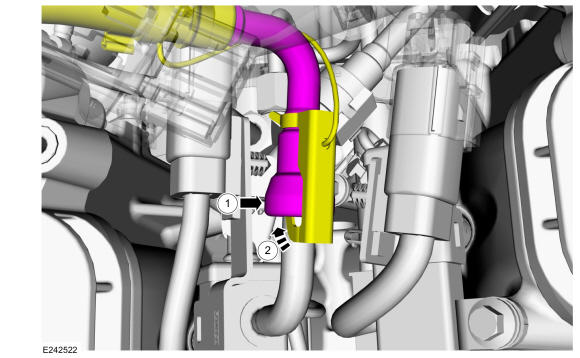

  6. NOTE: The spring lock coupling must be installed onto the fuel tube end along the centerline. The assembly is complete when the tube end bottoms out on the spring lock coupling with an audible click / snap feel. Correct assembly should be verified by pulling back on the spring lock coupling end.

    1. Connect the fuel rail fuel supply line the spring lock coupling. Refer to: Spring Lock Couplings .
    2. Install the secondary latch.

    GFD462488Courtesy of FORD MOTOR COMPANY

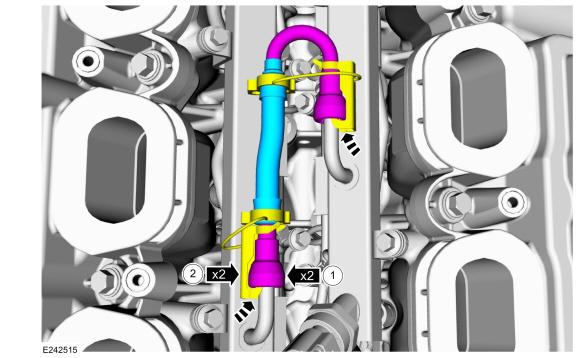

  7. NOTE: The spring lock coupling must be installed onto the fuel tube end along the centerline. The assembly is complete when the tube end bottoms out on the spring lock coupling with an audible click / snap feel. Correct assembly should be verified by pulling back on the spring lock coupling end.

    1. Install the fuel rail to fuel rail fuel supply line and then connect the spring lock couplings. Refer to: Spring Lock Couplings .
    2. Install the secondary latches.

    GFD462486Courtesy of FORD MOTOR COMPANY

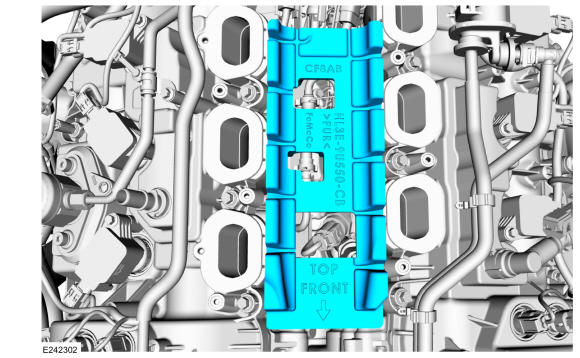

  8. Install the fuel rail insulator.
    GFD460386Courtesy of FORD MOTOR COMPANY
  9. Install the intake manifold. Refer to: Intake Manifold .
  10. Reconnect the battery. Refer to: Battery Disconnect and Connect .
  11. Pressurize the fuel system. Refer to: Fuel System Pressure Release .
