Port Injection Fuel Rail LH: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During the removal or installation of components, cap, tape or otherwise appropriately protect all openings and tubes/fittings to prevent the ingress of dirt or other contamination. Remove caps, tape and other protective materials prior to installation.

Release the fuel system pressure. Refer to: Fuel System Pressure Release .
Disconnect the battery. Refer to: Battery Disconnect and Connect .
Remove the intake manifold. Refer to: Intake Manifold .
Remove the fuel rail insulator.

Courtesy of FORD MOTOR COMPANY

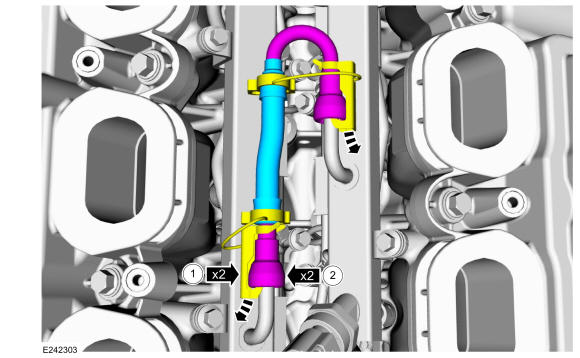

1. Disconnect the secondary latches and position out of the way.
2. Disconnect the spring lock couplings and then remove the fuel rail to fuel rail fuel supply line. Refer to: Spring Lock Couplings .
Courtesy of FORD MOTOR COMPANY
Disconnect the fuel rail harness main electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: Pull out the fuel rails in the direction of the fuel injector axis or damage may occur to the fuel injectors.

NOTE: Use compressed air to remove any dirt or foreign material from the cylinder head, block and general surrounding area of the fuel rail and the fuel injectors.

NOTE: Should any of the fuel injectors remain in the cylinder head, then the injector electrical connectors will need to be disconnected as the fuel rail is being removed.

Remove the fuel rail retaining bolts and then remove the fuel rail.

Courtesy of FORD MOTOR COMPANY

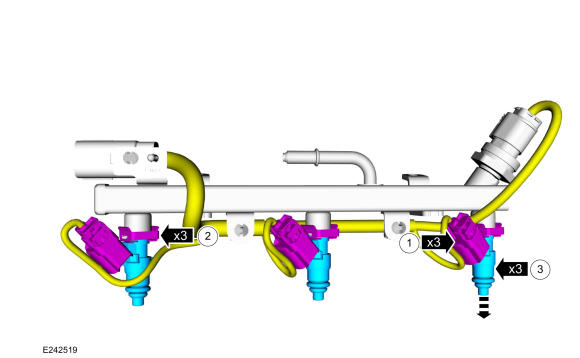

1. Disconnect the fuel injector electrical connectors.
2. Remove the fuel injector retaining clips.
3. Remove the fuel injectors from the fuel rail.
Courtesy of FORD MOTOR COMPANY
Remove and discard all of the fuel injector O-ring seals.

Courtesy of FORD MOTOR COMPANY
