Transmission Range (TR) Sensor: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Install the TR sensor.

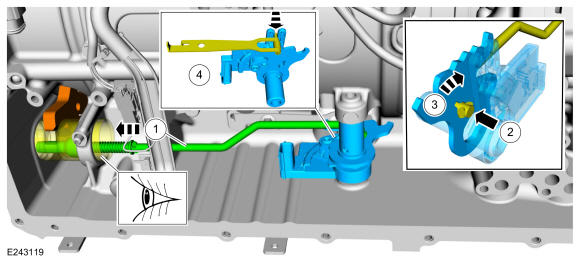

1. Position the park pawl actuator rod into the park pawl sleeve.
2. Connect the park pawl actuator rod to the TR sensor.
3. Rotate the TR sensor.
4. Align the TR sensor to the detent spring.
Courtesy of FORD MOTOR COMPANY

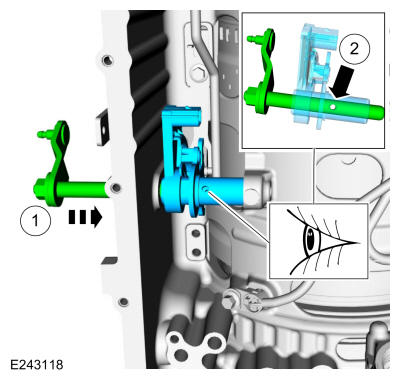

1. Slide the manual shaft and selector lever into the TR sensor.
2. Align the TR sensor roll pin hole.
Courtesy of FORD MOTOR COMPANY

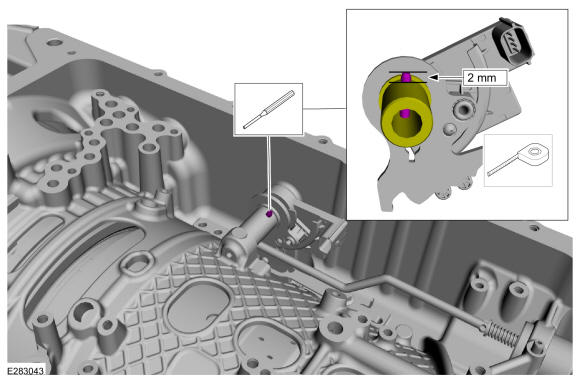

Install the new manual shaft-to-TR sensor roll pin to the specified height. Use the General Equipment: Punch

Courtesy of FORD MOTOR COMPANY

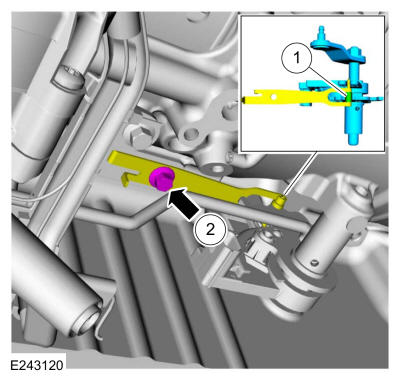

1. Align the detent spring in the center of the TR sensor.
2. Torque
  : 97 lb.in (11 Nm)
Courtesy of FORD MOTOR COMPANY

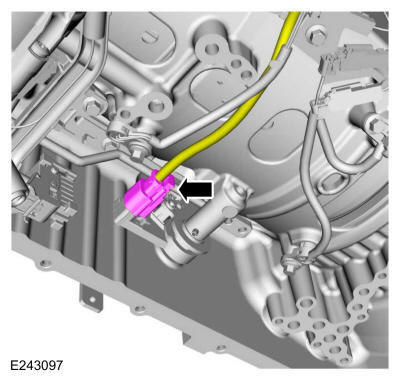

Connect the TR sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

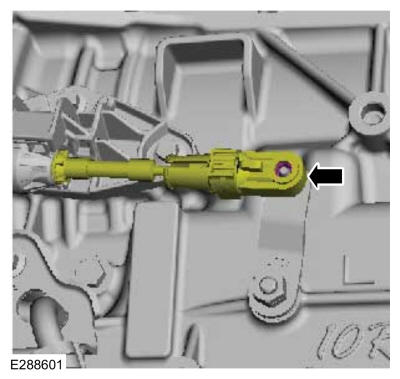

Connect the selector lever cable onto the manual control lever.
- Pull back on the selector lever cable to verify it is installed correctly to the manual lever.
Courtesy of FORD MOTOR COMPANY

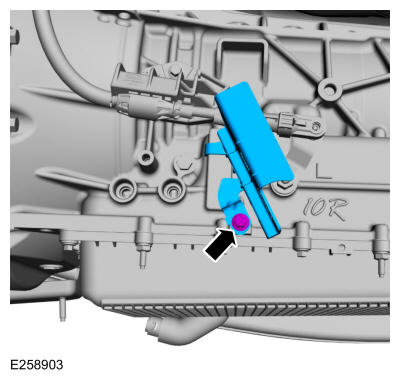

If equipped, install the selector lever cable splash shield and the bolt.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
Install the main control valve body. Refer to: Main Control Valve Body .
Verify that the selector lever cable is correctly adjusted. Refer to: Selector Lever Cable Adjustment - 10-Speed Automatic Transmission - 10R80, Vehicles With: Column Shift . Refer to: Selector Lever Cable Adjustment - 10-Speed Automatic Transmission - 10R80, Vehicles With: Floor Shift .
