Transmission Internal Wiring Harness: Installation

Transmission Case Harness

1. Install the wiring harness. Lubricate the O-ring seals with petroleum jelly. Align the tab on the electrical connector with the indention in the transmission case and install the main electrical connector in the transmission case. Align the wiring harness and install the bolts.
   1. Torque

      : 97 lb.in (11 Nm)

   2. Torque

      : 106 lb.in (12 Nm)

   Courtesy of FORD MOTOR COMPANY

2. If equipped, connect the transmission fluid auxiliary pump electrical connector.

   Courtesy of FORD MOTOR COMPANY

3. Support the opposite side of the TR sensor and connect the electrical connector.

   Courtesy of FORD MOTOR COMPANY

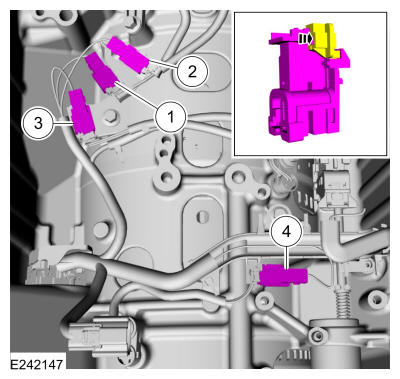

4. NOTE: After connecting the electrical connectors, slide the plastic lock to the locked position.

   Connect and lock the speed sensors.

   1. TSS sensor
   2. Intermediate speed A sensor
   3. Intermediate speed B sensor
   4. OSS sensor

   Courtesy of FORD MOTOR COMPANY

5. 1. Rotate the locking arm down and connect the transmission electrical connector.
   2. Slide the safety lock in.

   Courtesy of FORD MOTOR COMPANY

   Main Control Valve Body Harness

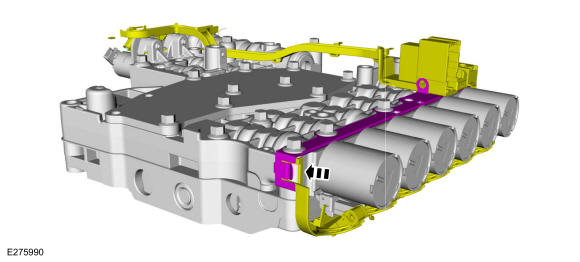

6. Install the internal wiring harness assembly and attach the retainer.

   Courtesy of FORD MOTOR COMPANY

7. Connect the internal wiring harness electrical connectors.
   • Slide the plastic lock to the locked position.

   Courtesy of FORD MOTOR COMPANY

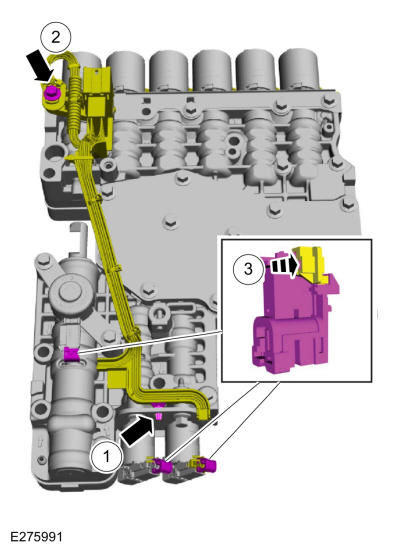

8. Connect the internal wiring harness.
   1. Connect the internal wiring harness retainer.
   2. Install the internal wiring harness retaining bolt.

      Torque: 106 lb.in (12 Nm)

   3. Connect the TCC solenoid and the LPC solenoid electrical connectors. If equipped, connect the park lock pawl solenoid electrical connector. Slide the plastic lock to the locked position.

   Courtesy of FORD MOTOR COMPANY

   All Harnesses

9. Install the main control valve body. Refer to: Main Control Valve Body .
