Transmission Fluid Temperature (TFT) Sensor: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Remove the main control valve body. Refer to: Main Control Valve Body .

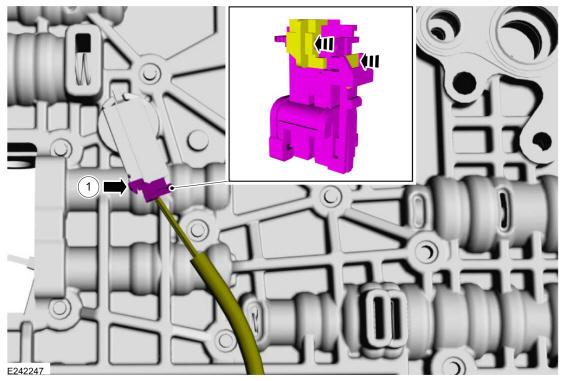

Disconnect the TFT sensor.
1. Slide the plastic lock to the unlocked position. While pressing the plastic tab, disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY
Remove the TFT sensor.
1. Lift plastic tab.
2. Rotate the TFT sensor clockwise.
3. Remove the TFT sensor.

Courtesy of FORD MOTOR COMPANY
