Transmission Fluid Temperature (TFT) Sensor: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

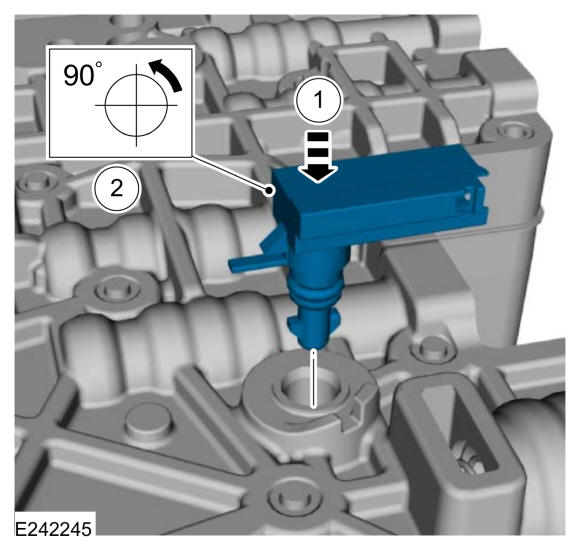

Install the TFT sensor.
1. Position the TFT sensor in the main control valve body.
2. Rotate the TFT sensor counter clockwise until the plastic tab locks into place.
Courtesy of FORD MOTOR COMPANY

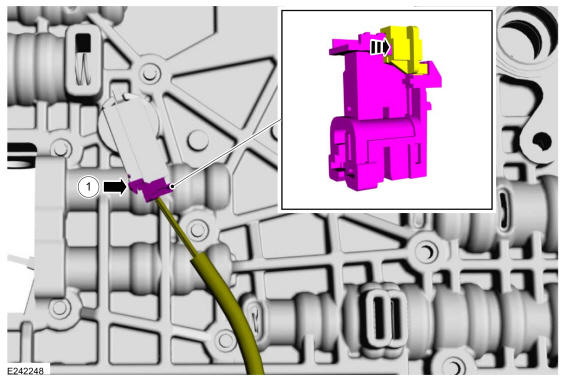

Connect the TFT sensor.
1. Slide the plastic lock to the locked position.
Courtesy of FORD MOTOR COMPANY
Install the main control valve body. Refer to: Main Control Valve Body .
