Transmission Fluid Pump Idler Gear: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

To remove the transmission assembly. Refer to: Transmission .
Using the special tool, install the transmission on a bench. Use Special Service Tool: 307-003 (T57L-500-B) Holding Fixture, Transmission.

Courtesy of FORD MOTOR COMPANY
Remove the special tool. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

Courtesy of FORD MOTOR COMPANY
Using the special tool, remove the torque converter. Use Special Service Tool: 307-091 Handle, Torque Converter.

Courtesy of FORD MOTOR COMPANY
NOTE: Note the location of the bolts and studbolts for assembly.

Remove the bolts and studbolts and the transmission fluid pan.
1. Bolts
2. Studbolts
Courtesy of FORD MOTOR COMPANY
NOTE: The transmission fluid pan gasket can be reused if not damaged.

NOTE: Note the location of the alignment tabs.

Remove the transmission fluid pan gasket.

Courtesy of FORD MOTOR COMPANY
Remove the transmission fluid level indicator and plug assembly.

Courtesy of FORD MOTOR COMPANY

Auto-Start-Stop vehicles
Remove the bolt and the transmission fluid auxiliary pump tube.

Courtesy of FORD MOTOR COMPANY
Remove and discard the transmission fluid auxiliary pump tube seal.

Courtesy of FORD MOTOR COMPANY
Disconnect the transmission fluid auxiliary pump electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the transmission fluid auxiliary pump.

Courtesy of FORD MOTOR COMPANY

All vehicles

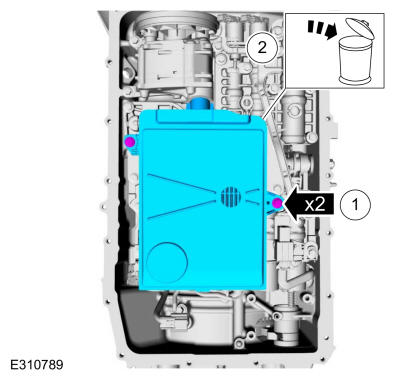

1. Remove the 71 mm and 20 mm bolts.
2. Remove and discard the transmission fluid filter (7A098).
Courtesy of FORD MOTOR COMPANY

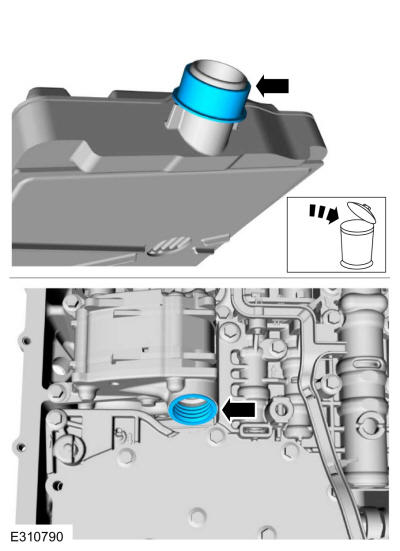

NOTE: The transmission fluid filter seal will either come off with the transmission fluid filter or it will be stuck in the pump.

Remove and discard the transmission fluid filter seal (7Z302).

Courtesy of FORD MOTOR COMPANY
Disconnect the main control main electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: Check to see if the main control-to-transmission fluid pump seal is attached to the main control.

Remove the 68 mm bolts and the main control assembly.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the transmission fluid pump.

Courtesy of FORD MOTOR COMPANY

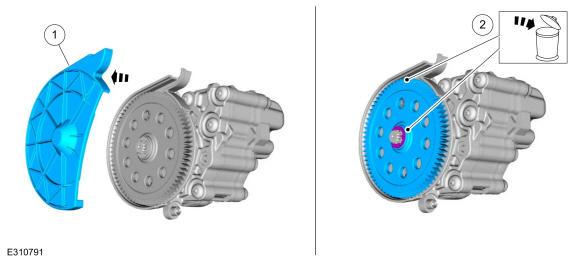

1. Remove the transmission fluid pump driven gear outer cover.
2. Remove and discard the retaining ring (W718158) and the transmission fluid pump driven gear (7J048).
Courtesy of FORD MOTOR COMPANY

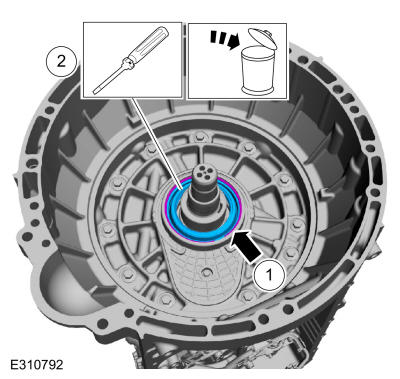

1. Remove the torque converter hub seal snap ring.
2. NOTE: When removing the torque converter hub seal. Use care not to scratch the front support cover sealing surface.

  Remove and discard the torque converter hub seal (7A248).
Courtesy of FORD MOTOR COMPANY
Remove the front support cover bolt and the front support cover snap ring.

Courtesy of FORD MOTOR COMPANY

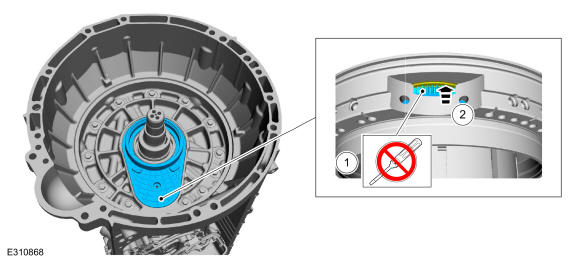

1. NOTE: Do not pry on the transmission fluid pump drive gear to remove the front support cover or damage to the transmission fluid pump drive gear can occur.
2. Push up on the back of the front support cover and remove the front support cover from the front support.
Courtesy of FORD MOTOR COMPANY

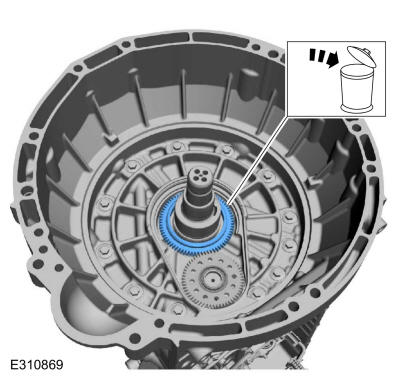

Remove and discard the transmission fluid pump drive gear (7177).

Courtesy of FORD MOTOR COMPANY

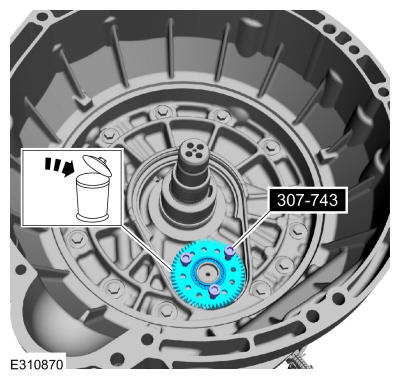

NOTE: Tighten the special tools evenly to remove the transmission fluid pump idler gear.

Using the special tools, remove and discard the transmission fluid pump idler gear (6652) and bearing (7025). Use Special Service Tool: 307-743 Remover, Pump Drive Gear.

Courtesy of FORD MOTOR COMPANY

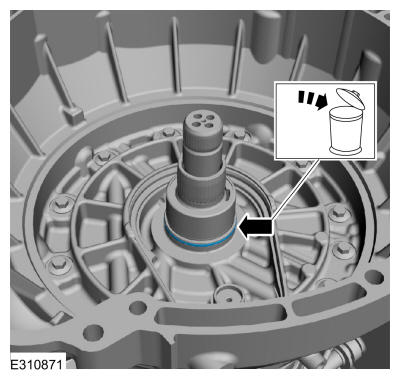

Remove and discard the stator support seal (7G090).

Courtesy of FORD MOTOR COMPANY

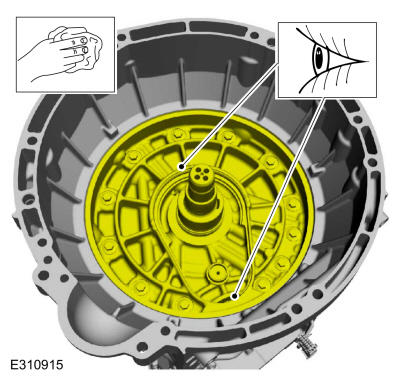

Clean all debris from the front support.

Courtesy of FORD MOTOR COMPANY
