Transmission Fluid Auxiliary Pump - 5.0L 32V Ti-VCT: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Remove the transmission fluid pan, gasket and filter. Refer to: Transmission Fluid Pan, Gasket and Filter .

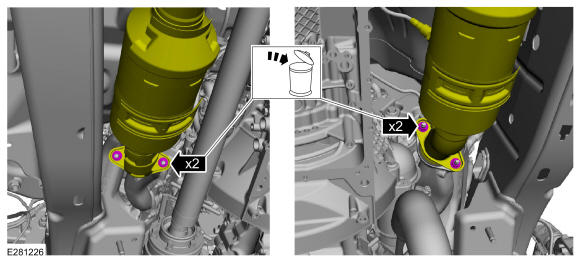

Remove and discard the LH and RH catalytic converter nuts (W520514).

Courtesy of FORD MOTOR COMPANY

Rear Wheel Drive (RWD) vehicles
Remove the bolt and the LH isolator cap.

Courtesy of FORD MOTOR COMPANY

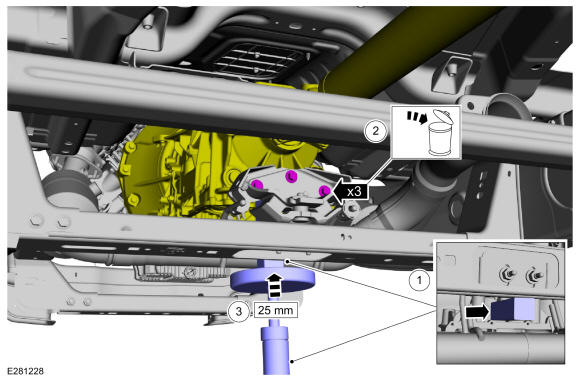

1. Using an adjustable stand and a wooden block support the transmission. Use the General Equipment: Wooden Block. Use the General Equipment: Vehicle/Axle Stands
2. Remove and discard the transmission support insulator bolts (5863).
3. Raise the rear of the transmission with the adjustable stand.
Courtesy of FORD MOTOR COMPANY

All vehicles
Remove the bolt and the transmission fluid auxiliary pump tube.

Courtesy of FORD MOTOR COMPANY
Remove the transmission fluid auxiliary pump tube seal.

Courtesy of FORD MOTOR COMPANY
Disconnect the transmission fluid auxiliary pump.

Courtesy of FORD MOTOR COMPANY
NOTE: A short 1/4" drive T-30 socket is required to remove the front pump bolts.

Remove the bolts and the transmission fluid auxiliary pump.
