Transmission Fluid Auxiliary Pump - 5.0L 32V Ti-VCT: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Install the transmission fluid auxiliary pump and loosely install the bolts.

Courtesy of FORD MOTOR COMPANY
Install the transmission fluid auxiliary pump tube seal.

Courtesy of FORD MOTOR COMPANY
Inspect the transmission fluid auxiliary pump tube O-ring.

Courtesy of FORD MOTOR COMPANY
Install the transmission fluid auxiliary pump tube and loosely install the bolt.

Courtesy of FORD MOTOR COMPANY
1. Transmission fluid auxiliary pump bolts
  Torque: 97 lb.in (11 Nm)
2. Transmission fluid auxiliary pump tube bolt
  Torque: 106 lb.in (12 Nm)
Courtesy of FORD MOTOR COMPANY
Connect the transmission fluid auxiliary pump electrical connector.

Courtesy of FORD MOTOR COMPANY

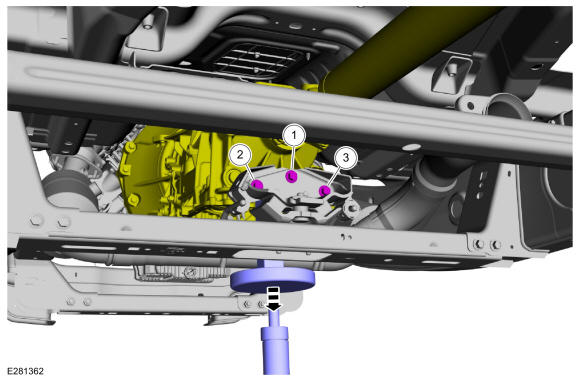

Rear Wheel Drive (RWD) vehicles
- Loosely install the new transmission support insulator bolts.
- Tighten the transmission support insulator bolts in the sequence shown below.
  Torque: 66 lb.ft (90 Nm)
Fig 1: Transmission Support Insulator Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY

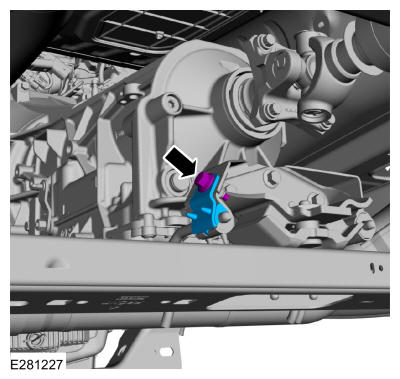

Install the LH isolator cap and the bolt.
Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles
NOTE: Evenly tighten the catalytic converter nuts.

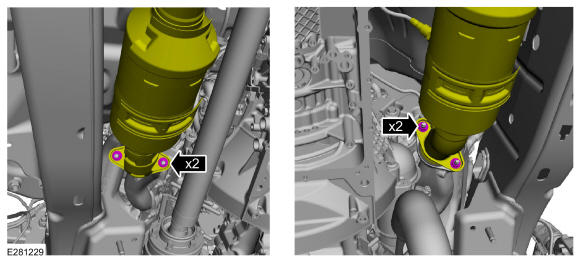

Install the LH and RH new catalytic converter nuts.

Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
Install the transmission fluid pan, gasket and filter. Refer to: Transmission Fluid Pan, Gasket and Filter .
Check the exhaust system for leaks.
