Transmission - Raptor: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the nuts and the engine appearance cover.
    GFD464240Courtesy of FORD MOTOR COMPANY
  3. Disconnect the LH HO2S electrical connector.
    GFD464213Courtesy of FORD MOTOR COMPANY
  4. Disconnect the RH HO2S electrical connector and the harness retainer.
    GFD464214Courtesy of FORD MOTOR COMPANY
  5. Remove the starter motor assembly. Refer to: Starter Motor .
  6. Remove the rear driveshaft assembly. Refer to: Rear Driveshaft .
  7. Remove the front driveshaft assembly. Refer to: Front Driveshaft .
  8. Remove the retainers and heatshield.
    GFD464241Courtesy of FORD MOTOR COMPANY

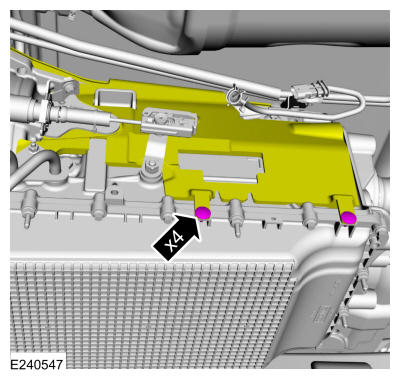

  9. Remove the retainers and position aside the NVH cover.
    GFD464242Courtesy of FORD MOTOR COMPANY
  10. NOTE: If transmission disassembly or installation of a new transmission is necessary, drain the transmission fluid.
    NOTE: Note the location of the bolts and studbolts for assembly.

    Remove the bolts and the transmission fluid pan.

    GFD463991Courtesy of FORD MOTOR COMPANY
  11. NOTE: It is not necessary to torque transmission fluid pan bolts at this time.

    Install the transmission fluid pan and the bolts.

    GFD463991Courtesy of FORD MOTOR COMPANY
  12. NOTE: Secure the transmission to the transmission jack with a safety strap.
    NOTE: Make sure the transmission jack makes contact on the outer ribs of the transmission fluid pan.

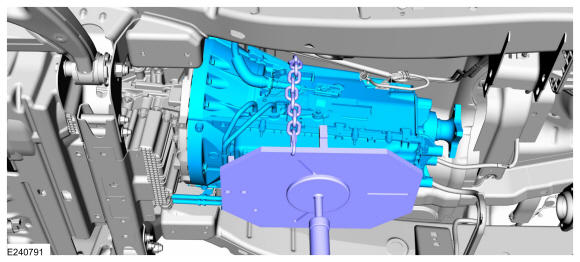

    Using a high-lift transmission jack, support the transmission. Use the General Equipment: Transmission Jack

    GFD464154Courtesy of FORD MOTOR COMPANY
  13. Remove the LH catalytic converter. Refer to: Catalytic Converter LH - Vehicles With: Dual Exhaust System .
  14. Remove the transmission support insulator. Refer to: Transmission Support Insulator .
  15. Disconnect the catalyst monitor sensor electrical connector.
    GFD464215Courtesy of FORD MOTOR COMPANY
  16. Remove the bolts from the catalytic converter flange to the muffler inlet pipe.
    GFD463521Courtesy of FORD MOTOR COMPANY
  17. NOTE: Clean all exhaust connections before reassembly.

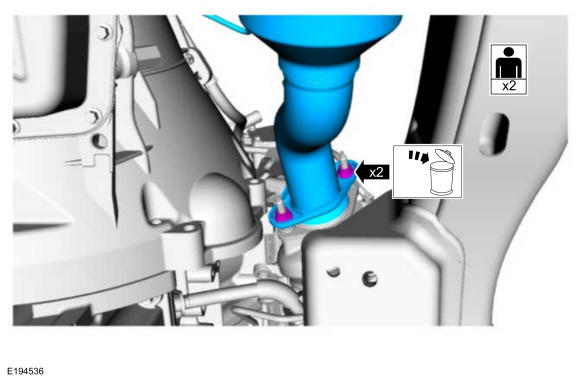

    Remove and discard the catalytic converter nuts and remove the catalytic converter. Discard the gasket.

    GFD464156Courtesy of FORD MOTOR COMPANY

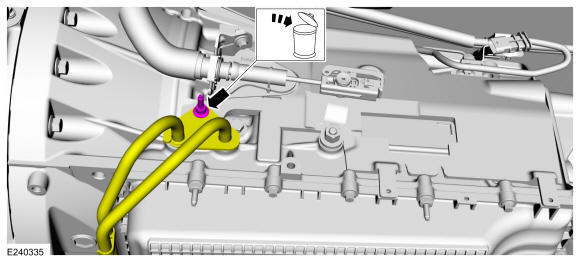

  18. Remove and discard the transmission fluid cooler tube bracket studbolt and position aside the transmission fluid cooler tubes.
    GFD464243Courtesy of FORD MOTOR COMPANY

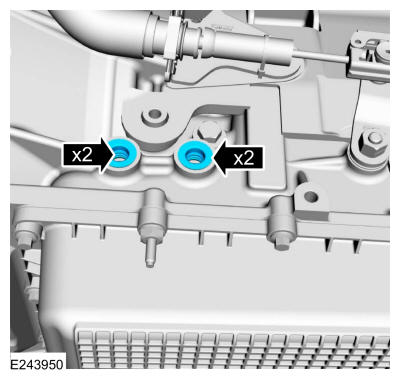

  19. Inspect the transmission to be sure the transmission fluid tube seals and backing rings were removed with the transmission fluid tubes and are not stuck in the transmission. If the transmission fluid tube seals or backing rings are stuck in the transmission, remove the seals and backing rings.
    GFD464244Courtesy of FORD MOTOR COMPANY
  20. NOTE: To prevent selector lever cable damage, do not apply force to the selector lever cable between the manual control lever and the selector lever cable bracket.

    1. Remove the selector lever cable bolt.
    2. Move the locking tab up and disconnect the selector lever cable end from the manual control lever.
    3. Disconnect the selector lever cable from the bracket and position aside.

    GFD464245Courtesy of FORD MOTOR COMPANY
  21. Remove the fuel line bracket bolt and disconnect the transfer case vent tube.
    GFD464159Courtesy of FORD MOTOR COMPANY
  22. Disconnect the transfer case electrical connector.
    GFD463528Courtesy of FORD MOTOR COMPANY
  23. NOTE: Do not pull on the wire harness to disconnect the electrical connector or damage to the electrical connector will occur.

    1. Slide the lock tab up and disconnect the transmission electrical connector.
    2. Pull the transmission electrical connector out to disconnect.
    3. Detach the retainers from the transmission and position the wiring harness aside.

    GFD464160Courtesy of FORD MOTOR COMPANY
  24. Remove the pin-type retainers and the access cover.
    GFD464216Courtesy of FORD MOTOR COMPANY
  25. NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.

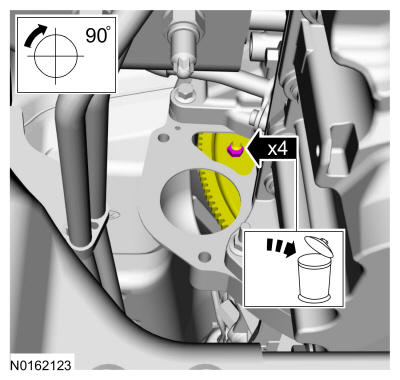

    Remove and discard the torque converter nuts.

    GFD464246Courtesy of FORD MOTOR COMPANY
  26. Remove the lower bellhousing bolt.
    GFD464217Courtesy of FORD MOTOR COMPANY
  27. Remove the RH side bellhousing bolts.
    GFD464218Courtesy of FORD MOTOR COMPANY
  28. Remove the top bellhousing bolts and position aside the bracket.
    GFD464219Courtesy of FORD MOTOR COMPANY
  29. Remove the LH bellhousing bolts and the selector lever cable bracket.
    GFD464220Courtesy of FORD MOTOR COMPANY
  30. Slide the transmission back enough to install the special tool. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.
    GFD464221Courtesy of FORD MOTOR COMPANY
    1. Make sure the transmission is securely fastened to the transmission jack.
    2. Slide the transmission towards the rear of the vehicle.
    3. Tilt the front of the transmission down.
    4. Remove the transmission from the vehicle.
    GFD464169Courtesy of FORD MOTOR COMPANY

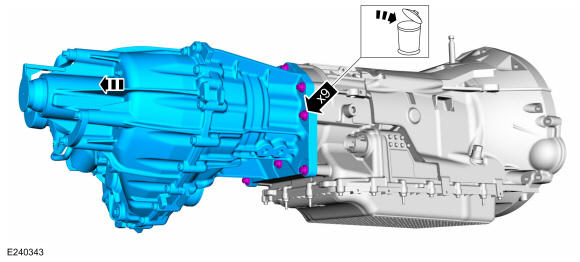

  32. If the transmission is to be overhauled or if installing a new or re-manufactured transmission, remove and discard the bolts and separate the transfer case from the transmission.
    GFD464170Courtesy of FORD MOTOR COMPANY

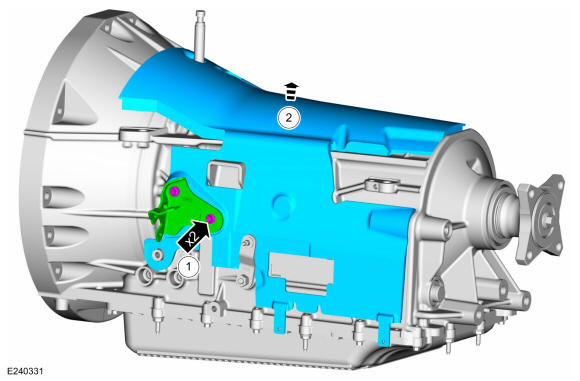

  33. If installing a new or re-manufactured transmission,

    1. Remove the bolts and the shift cable bracket.
    2. Remove the NVH cover.

    GFD464247Courtesy of FORD MOTOR COMPANY
  34. NOTE: Failure to clean the transmission fluid cooler tubes can result in transmission failure.

    If the transmission is to be overhauled or if installing a new or re-manufactured transmission, carry out the transmission fluid cooler backflushing and cleaning procedure. Refer to: Transmission Fluid Cooler - Backflushing and Cleaning - 3.3L Duratec-V6, Raptor .
