Shift Solenoids (SS): Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

All Solenoids

Remove the transmission fluid pan gasket and filter. Refer to: Transmission Fluid Pan, Gasket and Filter - Raptor . Refer to: Transmission Fluid Pan, Gasket and Filter . Refer to: Transmission Fluid Pan, Gasket and Filter - 3.0L Power Stroke Diesel .
LPC (line pressure control) and TCC (torque converter clutch) Solenoids
1. Slide the plastic lock to the unlock position. While pressing the plastic tab, disconnect the electrical connector.
2. Disconnect the internal wiring harness retainer.
Courtesy of FORD MOTOR COMPANY
Remove and discard the bolts and remove the solenoid retaining plate.

Courtesy of FORD MOTOR COMPANY
Remove the solenoid(s) from the main control valve body.
1. LPC solenoid (7G383)
2. TCC solenoid (7G136)
Courtesy of FORD MOTOR COMPANY

Solenoids D and E
Remove the bolts and the shift solenoid retaining plate.

Courtesy of FORD MOTOR COMPANY

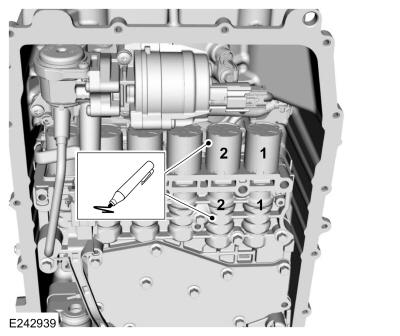

If replacing more then one solenoid, number the solenoids and number the main control valve body solenoid ports to correspond to the solenoid.

Courtesy of FORD MOTOR COMPANY

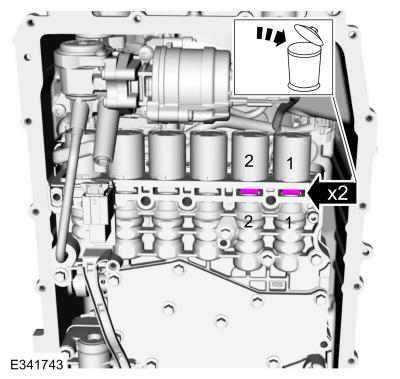

Remove and discard the shift solenoid retainer(s).

Courtesy of FORD MOTOR COMPANY
1. Slide the solenoid(s) out of the main control valve body bore.
2. Rotate the solenoid(s) in a clockwise direction.
3. Slide the plastic lock to the unlock position. While pressing the plastic tab, disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY
Remove the solenoid(s) from the main control valve body.
1. SSE (7J136)
2. SSD (7J136)
Courtesy of FORD MOTOR COMPANY

Solenoids A, B, C, and F
Remove the main control valve body. Refer to: Main Control Valve Body .
Remove the bolts and the shift solenoid retaining plate.

Courtesy of FORD MOTOR COMPANY
If replacing more then one solenoid, number the solenoids and number the main control valve body solenoid ports to correspond to the solenoid.

Courtesy of FORD MOTOR COMPANY
Remove and discard the shift solenoid retainer(s).

Courtesy of FORD MOTOR COMPANY
Slide the plastic lock to the unlock position. While pressing the plastic tab, disconnect the electrical connector(s).

Courtesy of FORD MOTOR COMPANY
Remove the solenoid(s) from the main control valve body.
1. SSA (7J136)
2. SSF (7J136)
3. SSC (7J136)
4. SSB (7J136)

Courtesy of FORD MOTOR COMPANY
