Output Shaft Speed (OSS) Sensor: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Remove the main control valve body. Refer to: Main Control Valve Body .

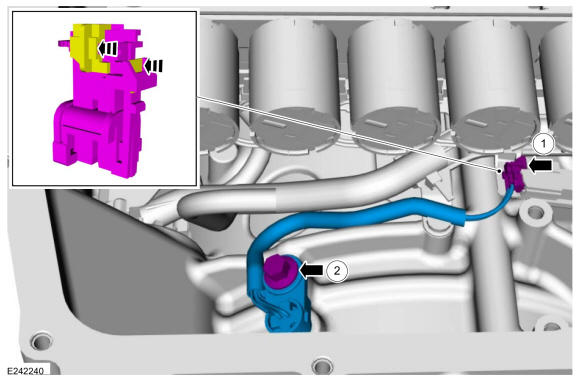

Remove the OSS sensor.
1. Slide the plastic lock to the unlocked position. While pressing the plastic tab, disconnect the electrical connector.
2. Remove the bolt and the OSS sensor.

Courtesy of FORD MOTOR COMPANY
