Output Shaft Seal: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview
.
Rear Wheel Drive (RWD) vehicles
- Remove the rear driveshaft assembly. Refer to: Rear Driveshaft .

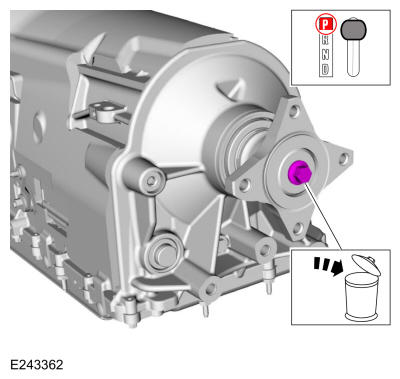

- Remove and discard the output shaft flange bolt (7N134).
- Slide the output shaft flange back to index mark the output shaft to the flange.

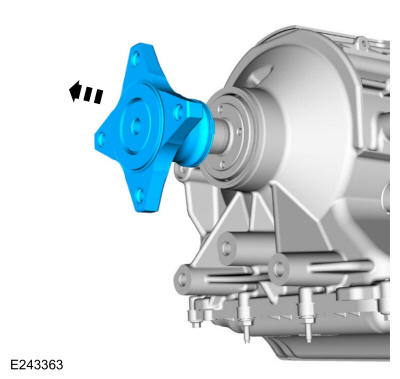

- Remove the output shaft flange.
- Remove the anti-ting ring.

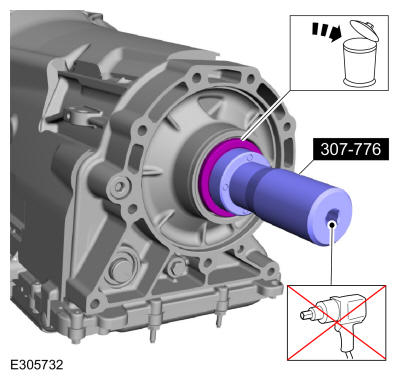

- Using the special tool, remove and discard the output shaft nut (7085). Use Special Service Tool: 307-776 Socket, Outputshaft Locknut.
Four-Wheel Drive (4WD) vehicles
- Remove the transfer case assembly. Refer to: Transfer Case
.
All vehicles

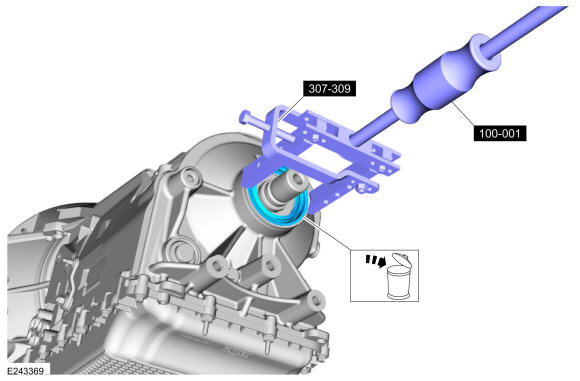

- Using the special tools, remove and discard the output shaft seal (7052). Use Special Service Tool: 307-309 Remover, Torque Converter Seal., 100-001 (T50T-100-A) Slide Hammer.
