Intermediate Speed Sensor B (ISSB): Installation
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

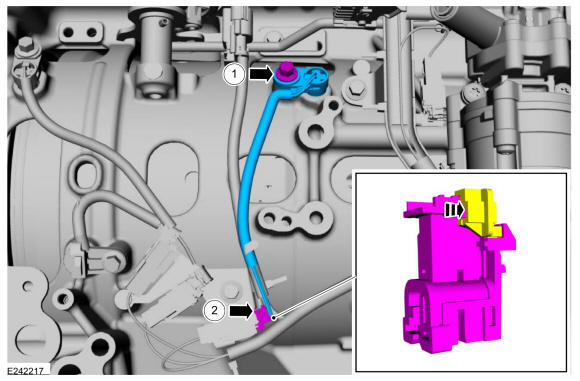

- Install the intermediate speed sensor B.
- Install the intermediate speed sensor B bolt.
Torque: 62 lb.in (7 Nm)
- Connect the electrical connector. Slide the plastic lock to the locked position.
- Install the intermediate speed sensor B bolt.
- Install the main control valve body. Refer to: Main Control Valve Body .
