Intermediate Speed Sensor A (ISSA): Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the main control valve body. Refer to: Main Control Valve Body .

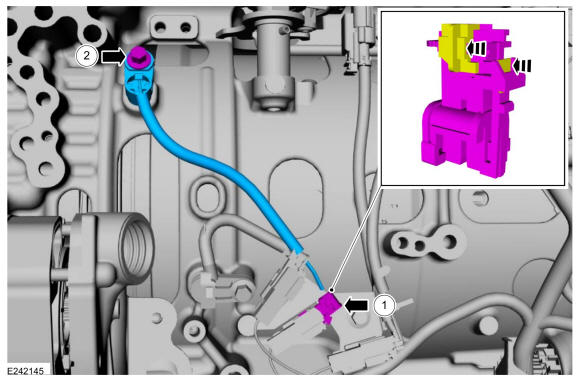

- Remove the intermediate speed sensor A.
- Slide the plastic lock to the unlocked position. While pressing the plastic tab, disconnect the electrical connector.
- Remove the bolt and the intermediate speed sensor A.
