Transmission Case

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	204-594 Forcing screw
Courtesy of FORD MOTOR COMPANY	307-549 Installer, Shift Shaft Fluid Seal TKIT-2005D1-F1
Courtesy of FORD MOTOR COMPANY	307-648 Remover/Installer, Rear Bearing TKIT-2009C-F TKIT-2009C-ROW
Courtesy of FORD MOTOR COMPANY	307-738 Installer, R2 Bearing
Courtesy of FORD MOTOR COMPANY	307-739 Installer, R3 Bearing
Courtesy of FORD MOTOR COMPANY	307-740 Installer, Dog Bone
Courtesy of FORD MOTOR COMPANY	307-745 Installer, Park Sleeve Roll Pin

NOTE: This step is only necessary if the transmission case is being replaced. A new transmission case will not come with heat shields.

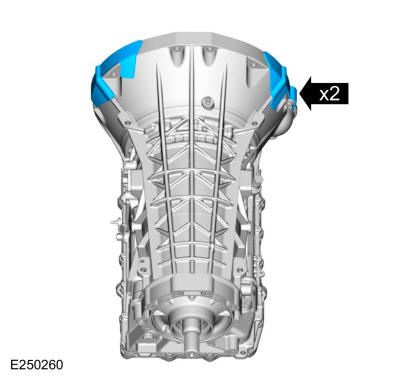

If equipped, install the new stick on heat shields to the bellhousing.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary if the transmission case is being replaced. A new transmission case will not come with a vent tube.

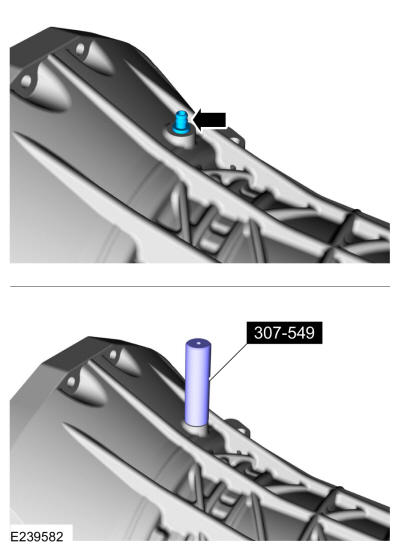

Using the special tool, install the vent tube in the transmission case. Use Special Service Tool: 307-549 Installer, Shift Shaft Fluid Seal.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary if the transmission case is being replaced.

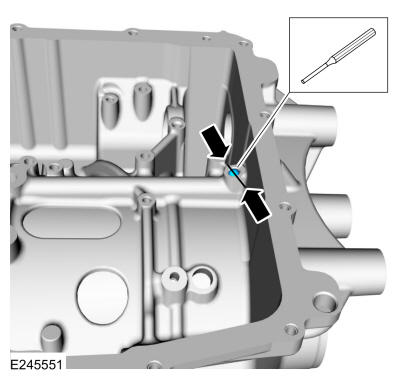

Using a brass punch, install the ball plug (7E195) flush with the transmission case surface.

Courtesy of FORD MOTOR COMPANY
Using the special tools, install the inner output shaft bearing. Use Special Service Tool: 204-594 Forcing screw., 307-648 Remover/Installer, Rear Bearing., 307-738 Installer, R2 Bearing.

Courtesy of FORD MOTOR COMPANY

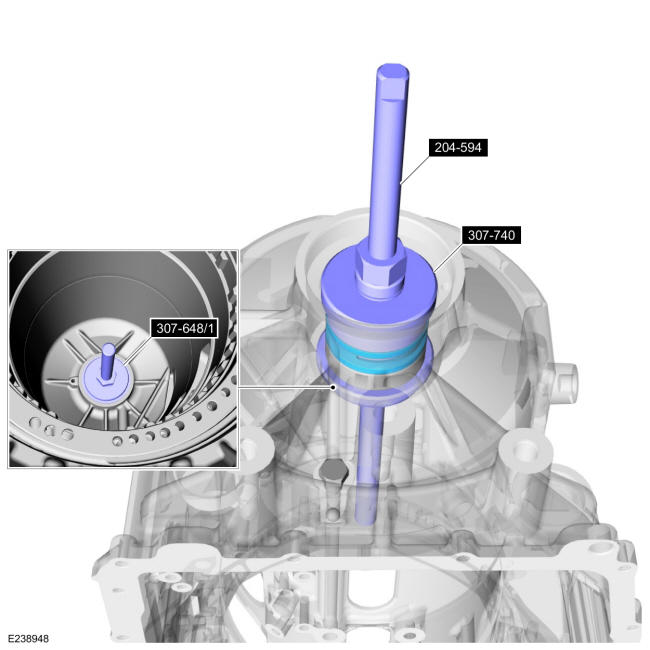

Using the special tools, install the fluid passage sleeve. Use Special Service Tool: 204-594 Forcing screw., 307-648 Remover/Installer, Rear Bearing., 307-740 Installer, Dog Bone.

Courtesy of FORD MOTOR COMPANY

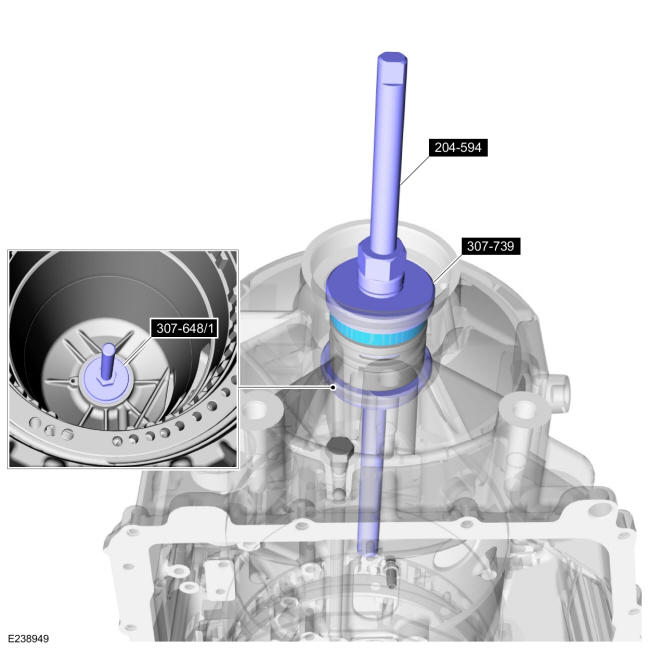

Using the special tools, install the outer output shaft bearing. Use Special Service Tool: 204-594 Forcing screw., 307-648 Remover/Installer, Rear Bearing., 307-739 Installer, R3 Bearing.

Courtesy of FORD MOTOR COMPANY

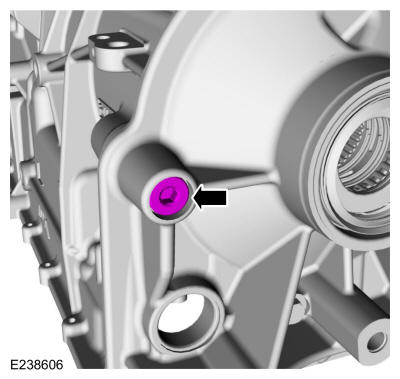

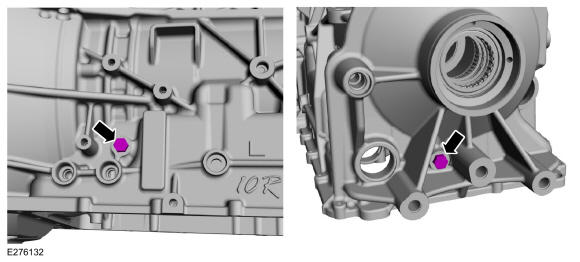

Install the line pressure port and rear case plugs.
Torque: 119 lb.in (13.5 Nm)

Courtesy of FORD MOTOR COMPANY

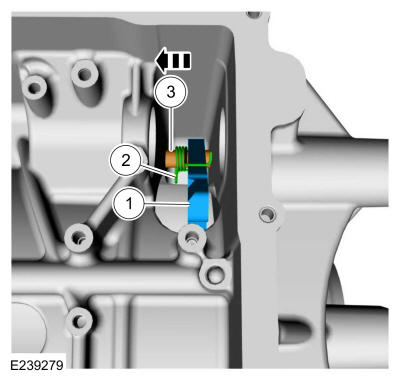

1. Install the park pawl.
2. Install the park pawl return spring.
3. Install the park pawl shaft.
Courtesy of FORD MOTOR COMPANY
Install the park pawl shaft plug.
Torque: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY
Install new park pawl actuator rod sleeve seals and lubricate them with petroleum jelly.

Courtesy of FORD MOTOR COMPANY

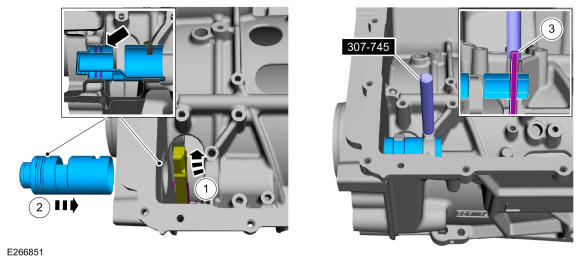

1. Position the park pawl towards the inside of the transmission case.
2. NOTE: Do not slide the park pawl actuator rod sleeve to far into the transmission case or the inner seal will be damaged.

  Slide the park pawl actuator rod sleeve into the transmission case.
3. NOTE: Align the roll pin seam to the inside of the transmission.

  Using the special tool install the roll pin to the correct depth. Use Special Service Tool: 307-745 Installer, Park Sleeve Roll Pin.
