Tailgate Moulding: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

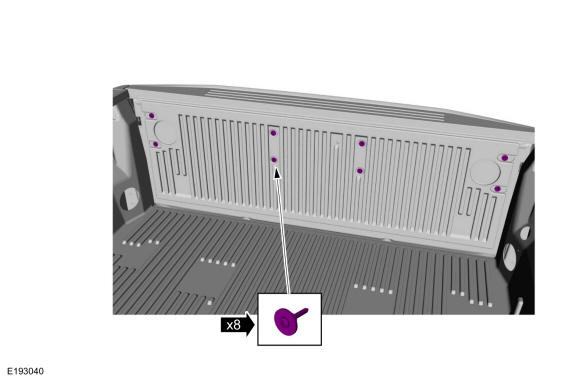

Remove the screws from the tailgate liner.
Torque 28 lb.in (3.2 Nm)

Courtesy of FORD MOTOR COMPANY

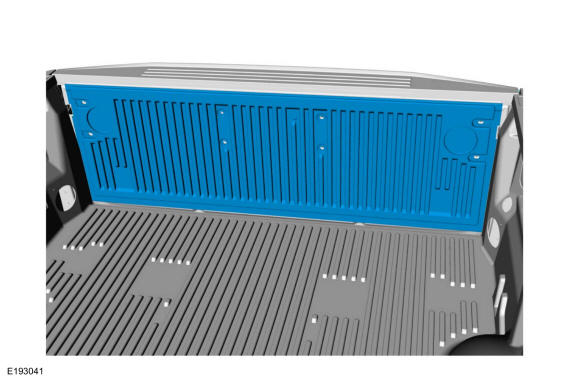

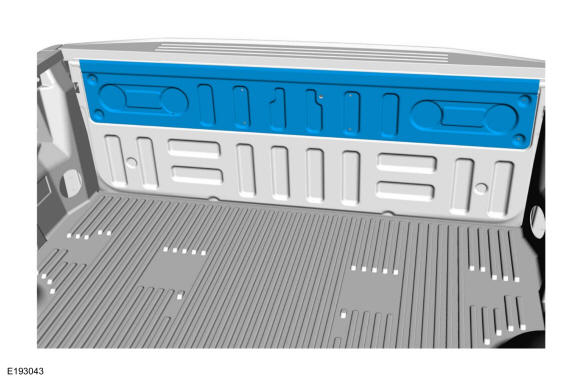

Remove the tailgate liner.

Courtesy of FORD MOTOR COMPANY
Remove the screws from the inner panel.
Torque: 28 lb.in (3.2 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the inner panel.

Courtesy of FORD MOTOR COMPANY

Vehicles without Flexible Step

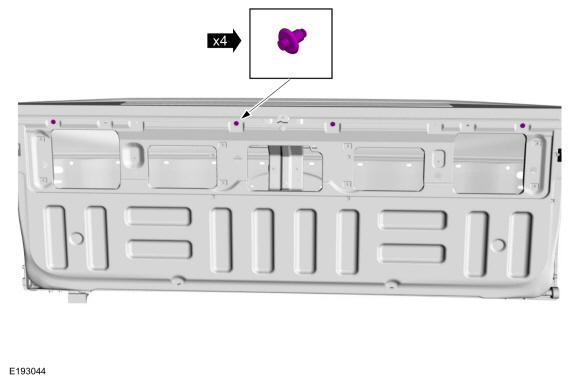

Remove the push pin retainers.

Courtesy of FORD MOTOR COMPANY

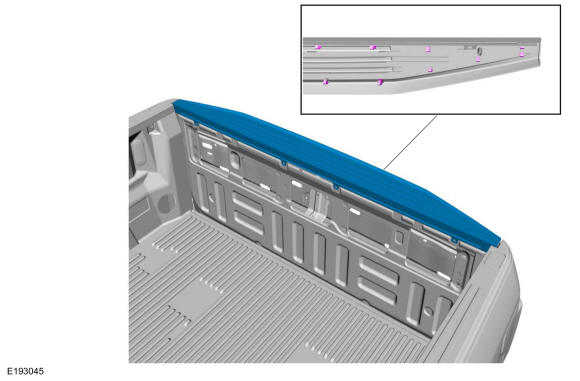

Using a non-marring trim tool, disengage the retainers from the tailgate and remove the moulding.

Courtesy of FORD MOTOR COMPANY

Vehicles with Flexible Step

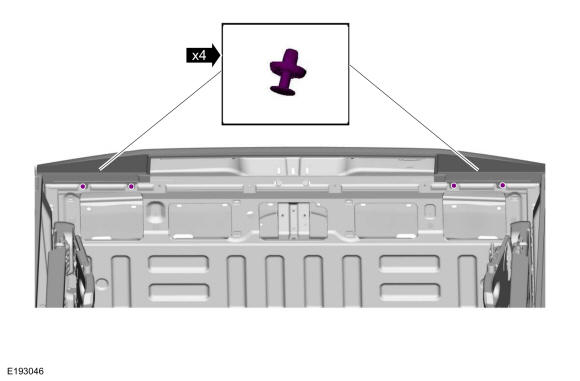

Remove the push pin retainers.

Courtesy of FORD MOTOR COMPANY

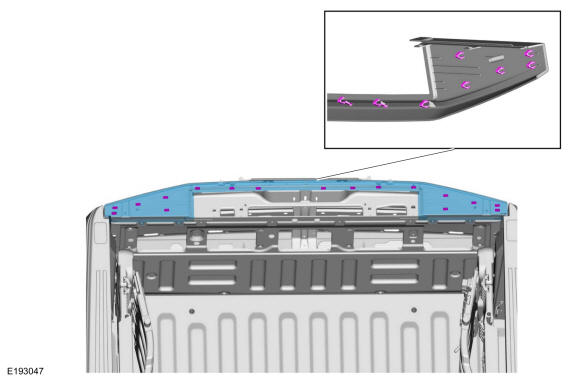

Using a non-marring trim tool, disengage the retainers from the tailgate and remove the moulding.

Courtesy of FORD MOTOR COMPANY

Vehicles with Tailgate Applique

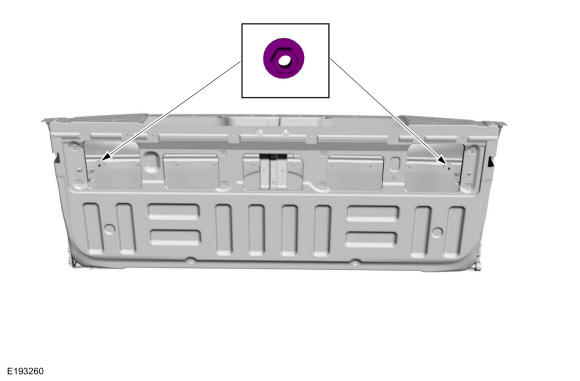

Remove the 2 retainer nuts and washers.
Torque: 36 lb.in (4.1 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when disengaging push pins from tailgate to avoid damage to the applique.

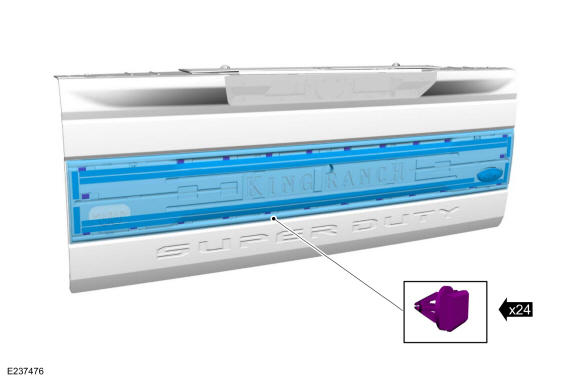

Using a non-marring trim tool, disengage the push pin retainers from the tailgate and remove the applique.

Courtesy of FORD MOTOR COMPANY
