Running Board: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
LH side shown, RH similar.
- With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview .
-
NOTE: Regular Cab shown, SuperCab and Crew Cab similar.

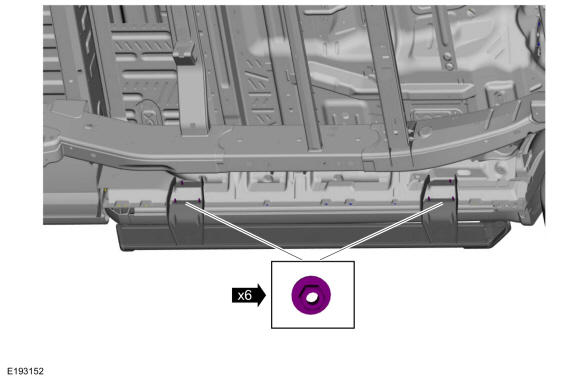

Remove the nuts from the attachment brackets.
Torque: 16 lb.ft (22 Nm)

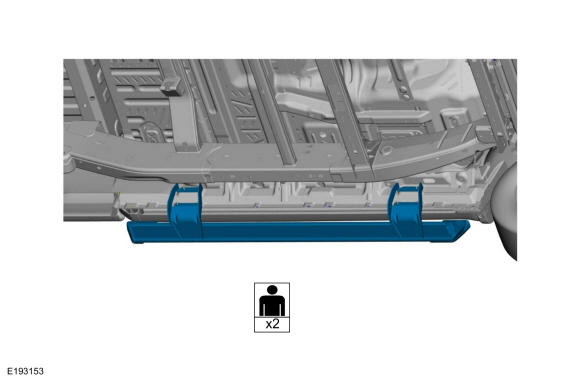

- Remove the running board assembly.
