Running Board Control Module (RBM): Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the loadspace trim panel. REFER to: Loadspace Trim Panel - Regular Cab . REFER to: Loadspace Trim Panel - Crew Cab/Super Cab .

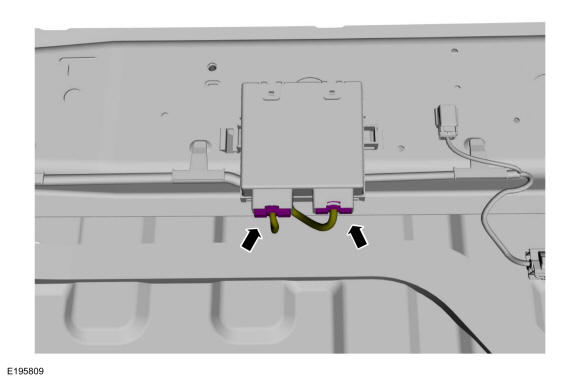

- Disconnect the electrical connectors.

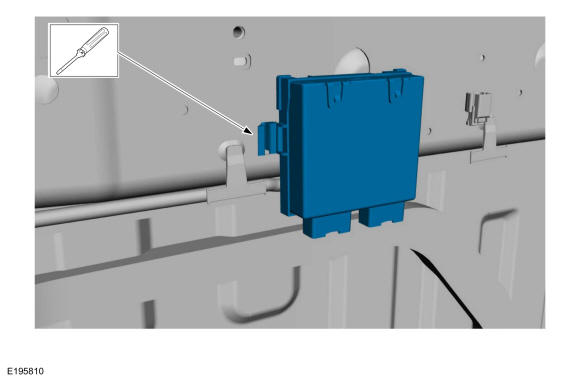

- Using a flat blade screwdriver or equivalent, depress the tab to remove the module.
