Roof Moulding: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
Regular cab shown, super and crew cabs similar.
- Remove the back glass. REFER to: Fixed Glass .

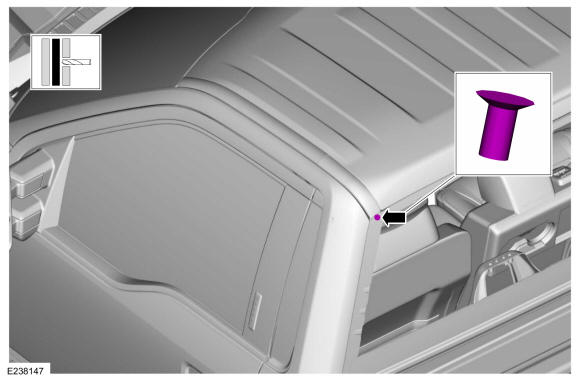

- Drill out the rivet on the rear corner of the roof molding.
-
NOTE: Use care while removing the moulding to avoid breaking tabs along the edge of the moulding.

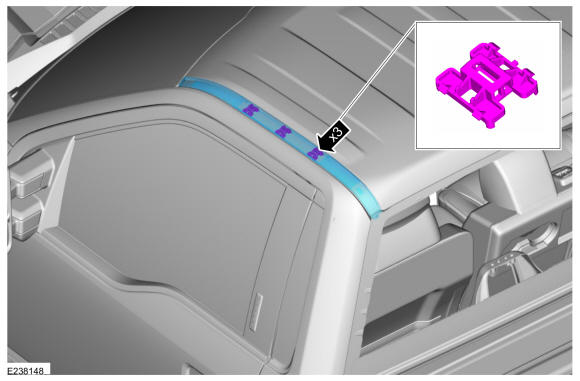

Detach the roof moulding from the retainer clips and remove the roof moulding.
