Power Running Board (PRB) Hinge: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview .
-
NOTE: LH side shown, RH side similar.NOTE: Support the running board with a jackstand.

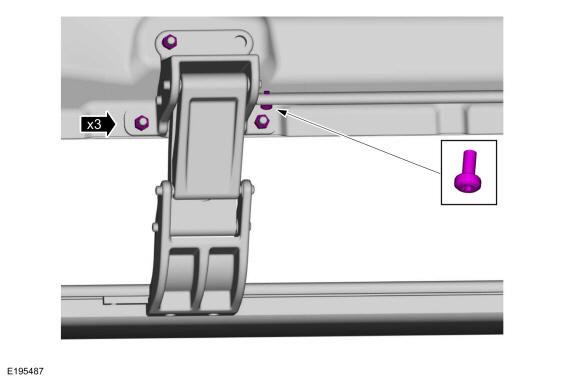

Remove the screws.

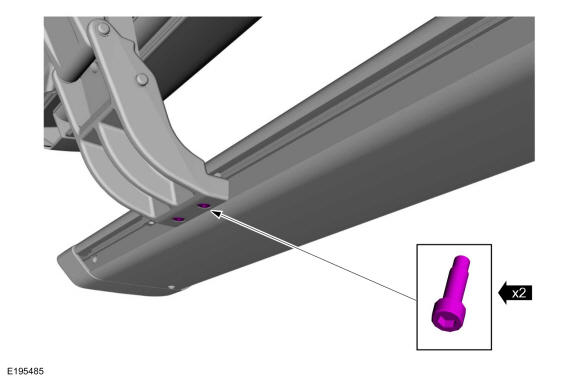

- Remove the nuts and screw.
Torque: 16 lb.ft (22 Nm)

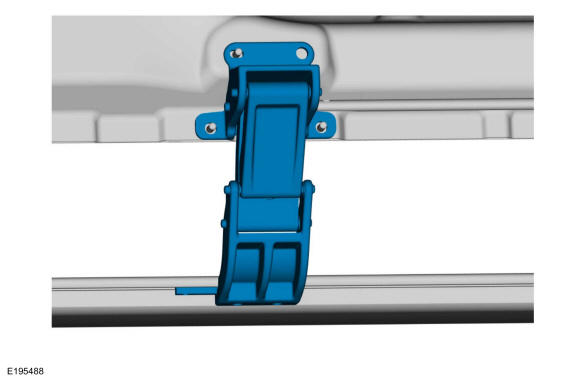

- Disengage the torque rod and remove the bracket assembly.
