Power Running Board (PRB) Connecting Rod: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH similar.
- Remove the rear running board bracket. REFER to: Power Running Board (PRB) Hinge .

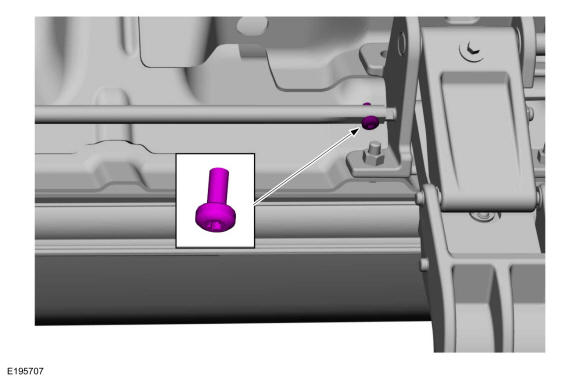

- Remove the screw.
Torque: 16 lb.ft (22 Nm)

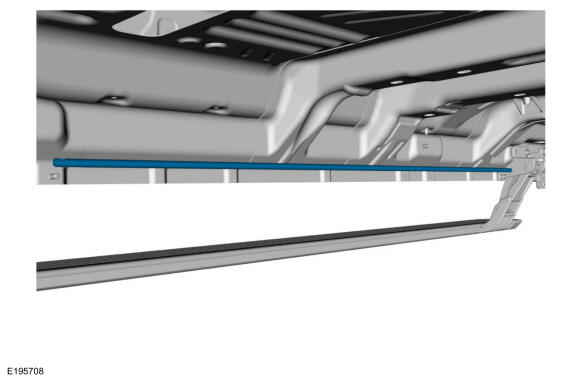

- Remove the connecting rod.
