Front Fender Moulding - F-450 F-550: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Removal steps in this procedure may contain installation details.

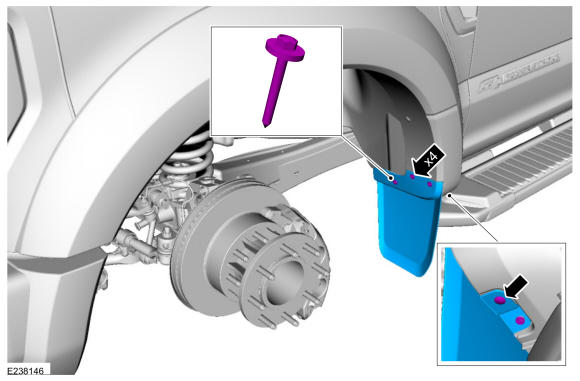

    GFD206399Courtesy of FORD MOTOR COMPANY
  2. Remove the push pins and the retainer.
    GFD206400Courtesy of FORD MOTOR COMPANY
  3. NOTE: Moulding attaches to 2 inner panels which are held on to the fender with the pushpin clips. When servicing the moulding assembly the inner panels are removed from the fender.

    Using a non-marring trim tool, disengage the trim clips and remove the front fender moulding.

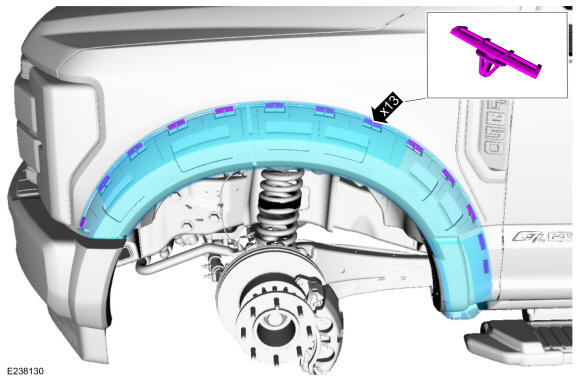

    GFD206401Courtesy of FORD MOTOR COMPANY
