Bodyside Moulding: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
The following steps detail the various bodyside mouldings located on the cab and pickup bed. It is not all inclusive as trim levels may vary from vehicle to vehicle.
NOTE:
LH side views shown, RH side similar.
Cab Upper Moulding

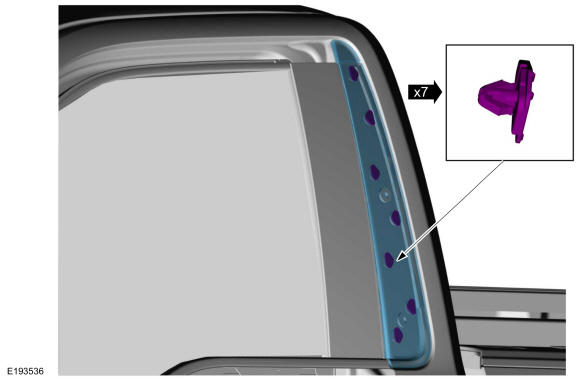

- Using a non-marring trim tool, detach the push pin retainers and remove the moulding.
Cab Lower Moulding

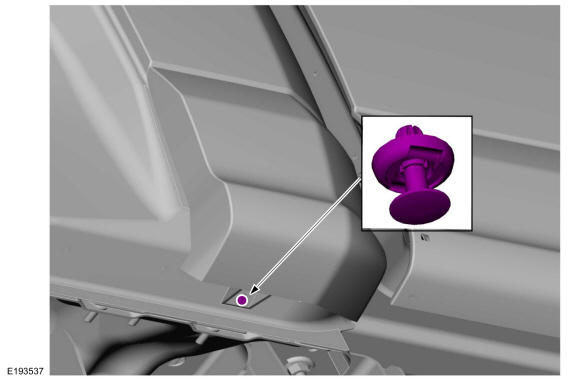

- Remove the push pin from the lower cab corner moulding.

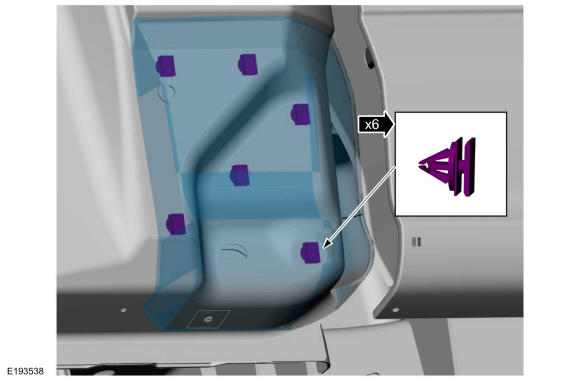

- Using a non-marring trim tool, detach the push pin retainers and remove the lower cab corner moulding.
Pickup Bed Lower Moulding

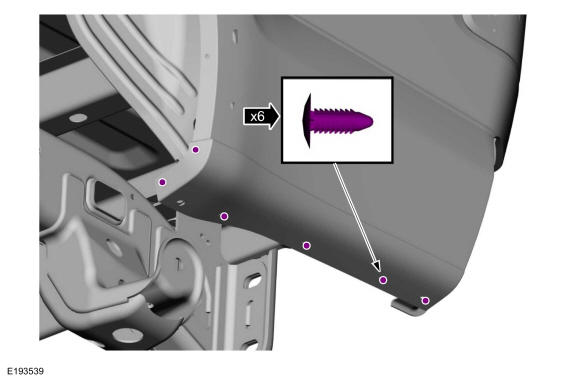

- Remove the push pin retainers.

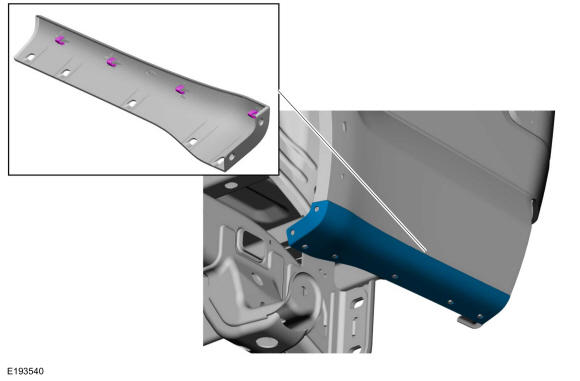

- Using a non-marring trim tool, detach the retainers from pick up bed and remove the moulding.
Pickup Bed Upper Rail Moulding

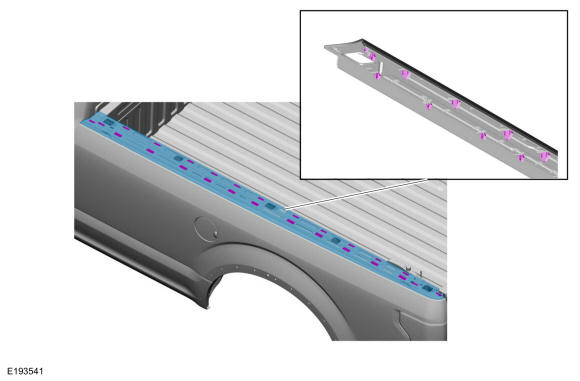

- Using a non-marring trim tool, carefully detach the retainers along the length of the moulding and remove the moulding.
