Turbocharger Coolant Supply Tube LH: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the 2 piece turbocharger cooling tubes are separated or the rubber gasket is leaking, then the rubber gasket must be replaced.
1. NOTE: Use brake cleaner and a nylon brush to clean. Do not use a metal brush, damage to sealing area will result in leaks.

  If the 2 piece turbocharger cooling tube was separated, then remove and discard the rubber gasket. Inspect and clean the turbocharger cooling tube sealing surfaces, install new components if necessary.

  Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

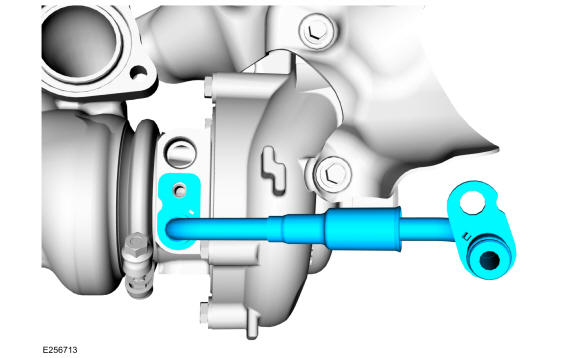

2. If the 2 piece turbocharger cooling tube was separated, then install the turbocharger cooling tube rubber gasket. After installing the new rubber gasket, lubricate with clean engine coolant. Refer to: Specifications .
Courtesy of FORD MOTOR COMPANY
Install a new turbocharger coolant supply tube O-ring seal. Lubricate the new O-ring seal with clean engine coolant. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
1. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

  Carefully use a nylon brush to remove the old O-ring residue, use brake cleaner to rinse the O-ring residue out of the turbocharger tube to turbocharger O-ring bores. Inspect the area for deep scratches and gouges. Install new components if necessary.
2. Install the turbocharger coolant return tube.
  Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
Courtesy of FORD MOTOR COMPANY
Install the turbocharger coolant return tube LH. Refer to: Turbocharger Coolant Return Tube LH .
