Ignition Coil-On-Plug: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Both sides

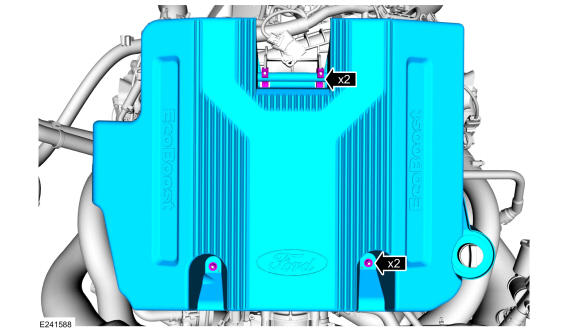

- Remove the engine appearance cover retainers, release the engine appearance cover from the rear retainers and then remove the engine appearance cover.
Left side

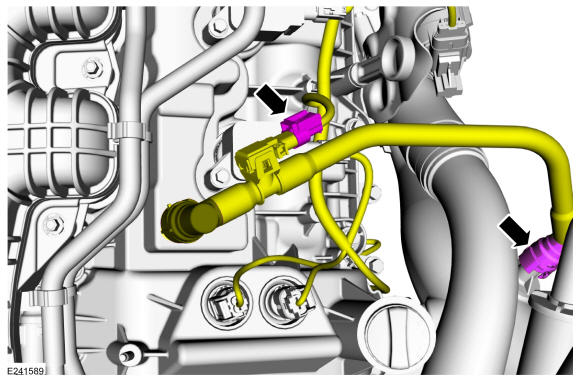

- Disconnect the electrical connector, then disconnect the crankcase ventilation tube and move out of the way.
Both sides

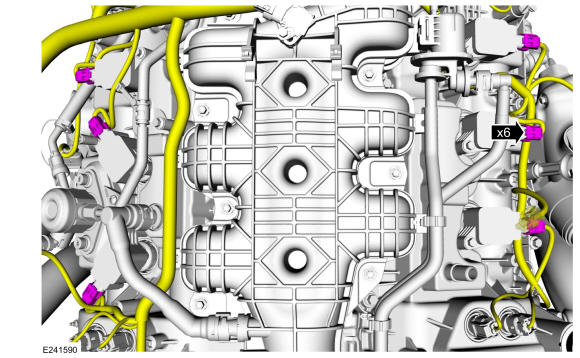

- Disconnect the ignition coil-on-plug electrical connectors.
- Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.
-
NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

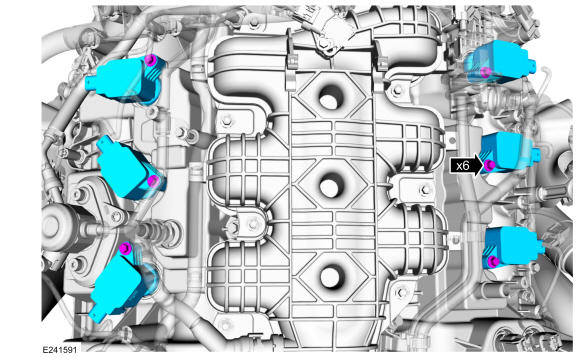

- Remove the ignition coil-on-plug retainers.
- Remove the ignition coil-on-plugs.
