Section 407 (Engine Ignition - 3.5L ECOBOOST (272KW/370PS))
>>
Description And Operation
>>
Engine Ignition - Component Location
Engine Ignition - Component Location
WARNING:
This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

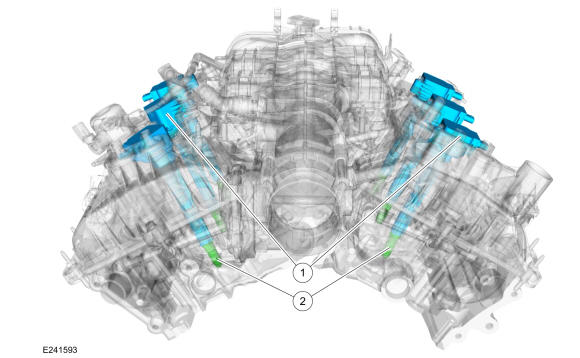

3.5L EcoBoost
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Ignition coil-on-plug(s)
2
Spark plug(s)
