Transmission Fluid Cooler Coolant Hose: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Clamp off the coolant hoses. Use the General Equipment: Locking Pliers

Courtesy of FORD MOTOR COMPANY
Follow the directions to release quick release coupling type 25. Disconnect the coolant tubes. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY
Remove the nut and position the transmission fluid cooler coolant tube aside.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

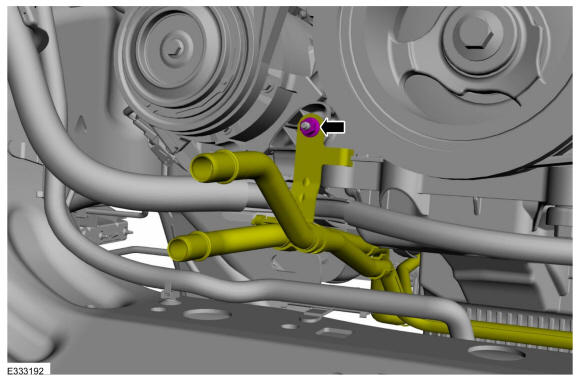

Remove the bolt and position the transmission fluid cooler coolant tube aside.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

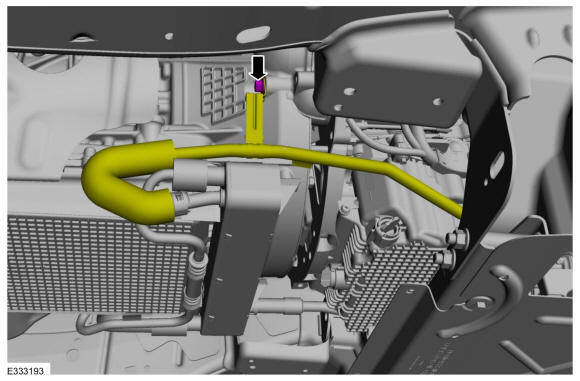

Remove the bolt and position the transmission fluid cooler coolant tube aside.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

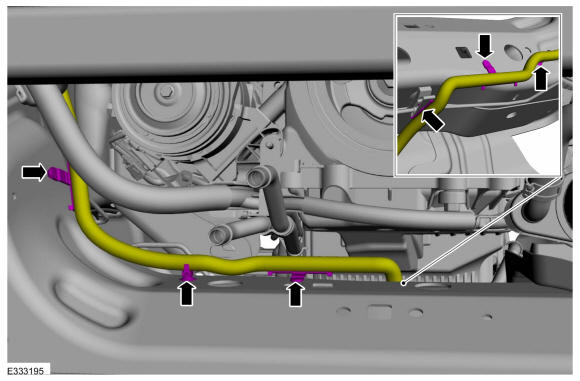

Detach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

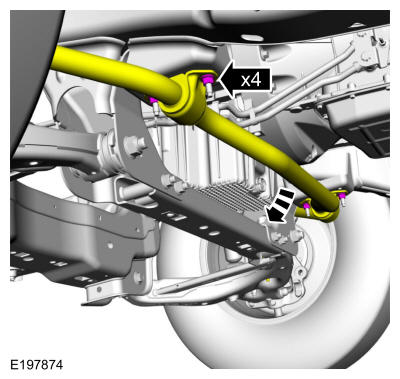

Remove the sway bar bracket nuts and lower the front sway bar.
Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY
- Follow the directions to release quick release coupling type 25. Remove the coolant tube. Refer to: Quick Release Coupling .
- Release the clamp and remove the transmission fluid cooler coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY

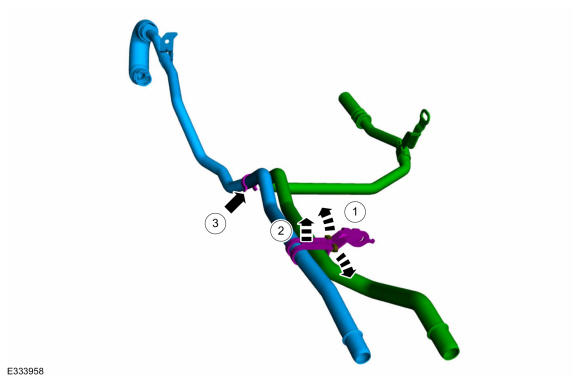

1. Bend the tabs up.
2. Open the clamp.
3. Separate the transmission fluid cooler coolant hoses.

Courtesy of FORD MOTOR COMPANY
