Cooling Fan Motor and Shroud: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
- Remove the air cleaner. Refer to: Air Cleaner .

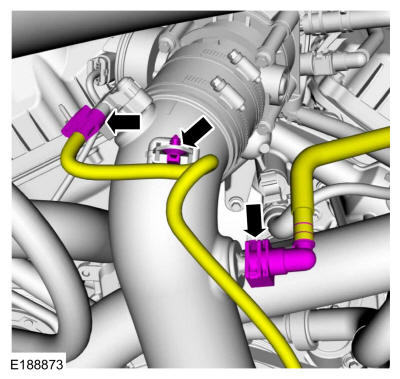

- Disconnect the electrical connector and detach the wiring harness retainer. Disconnect the quick connect coupling.

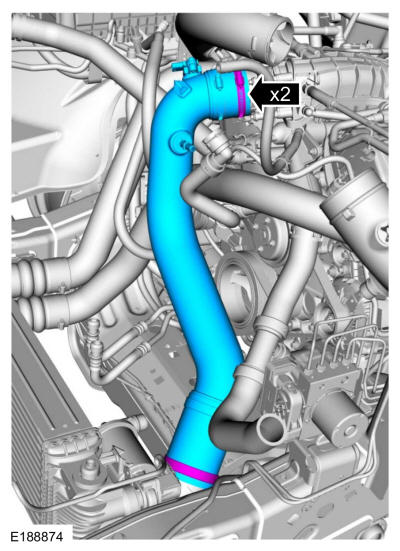

- Loosen the clamps and remove the CAC to TB (throttle body) pipe.
- Remove the bolts and position the degas bottle aside.
Torque: 62 lb.in | (7 Nm)
- Disconnect the electrical connectors, detach the pin-type retainers and position the wiring harness aside.
- Remove the bolts that secure the cooling fan motor and shroud.
Torque: 62 lb.in | (7 Nm)
- Lift the cooling fan motor and shroud upward and place wooden block to support it. Detach the pin-type retainers that secure the lower radiator shield to the cooling fan shroud.
- Remove the cooling fan motor and shroud.
