Coolant Pump: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

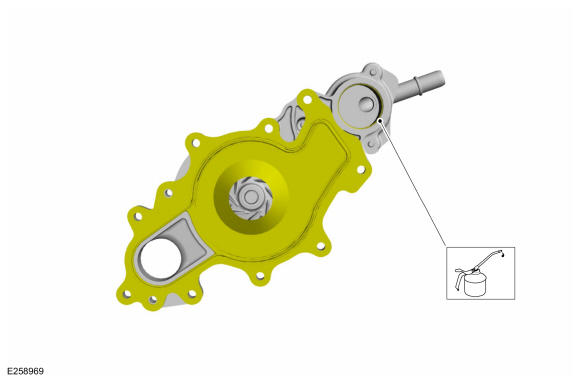

Install a new coolant pump gasket and Lubricate the O-ring seal with clean engine coolant. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
NOTE: Components not shown for clarity.

Install the coolant pump and tighten the bolts.

Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45°

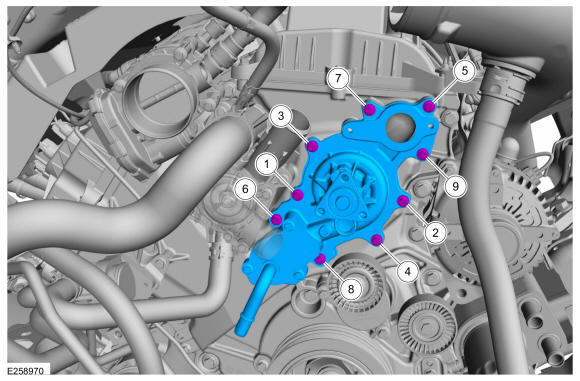

Fig 1: Coolant Pump Tightening Sequence
Courtesy of FORD MOTOR COMPANY

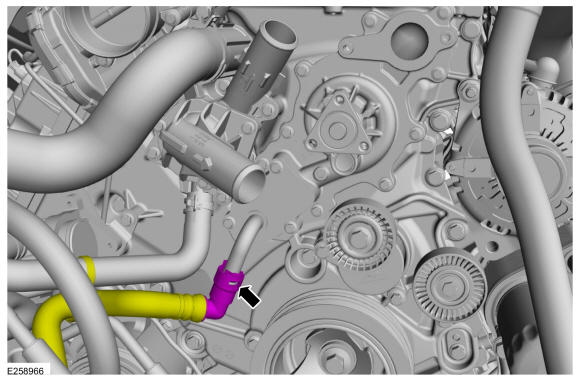

Connect the coolant hose quick release coupling.

Courtesy of FORD MOTOR COMPANY

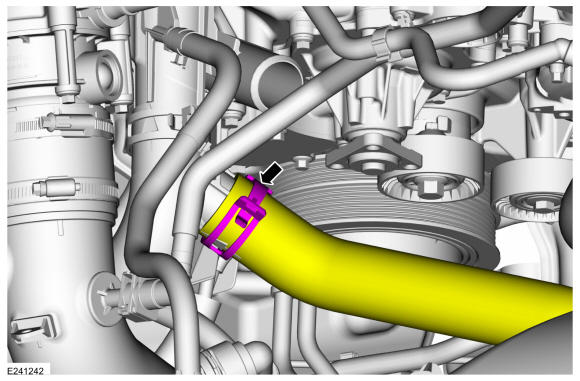

Connect the lower radiator hose and position the clamp. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

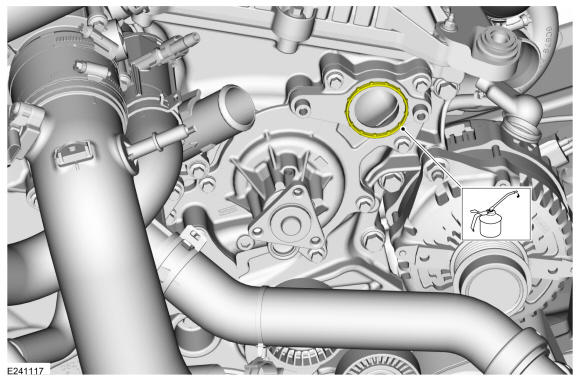

Lubricate the O-ring seal with clean engine coolant. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY

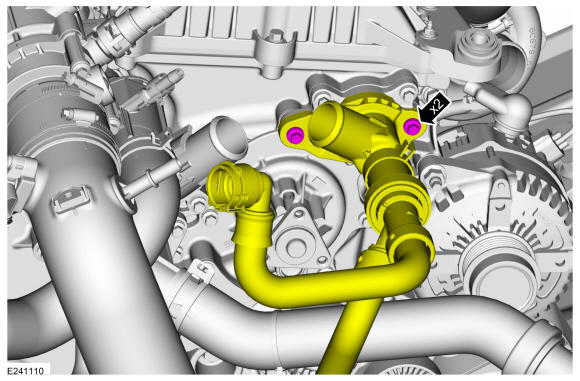

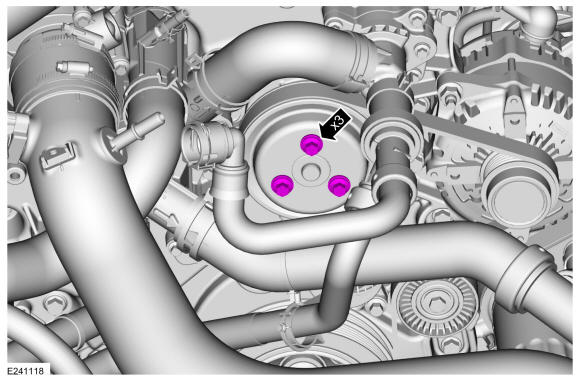

Position the water pump outlet connector and tighten the bolts.
Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45°

Courtesy of FORD MOTOR COMPANY

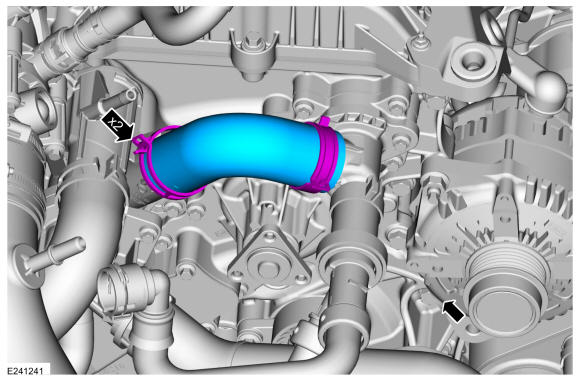

Install the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

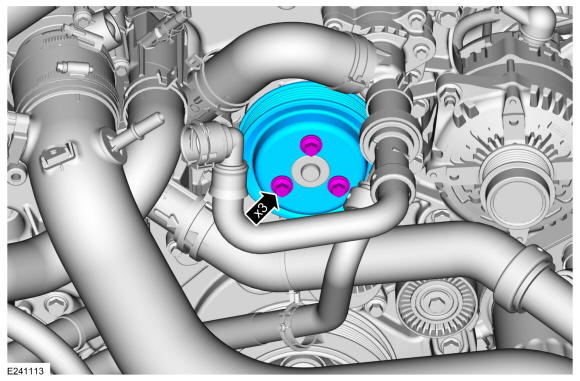

Position the coolant pump pulley and install the bolts finger tight.

Courtesy of FORD MOTOR COMPANY
Install the accessory drive belt. Refer to: Accessory Drive Belt .
Remove the plastic from the A/C compressor belt.
Tighten the coolant pump pulley bolts.
Torque: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY

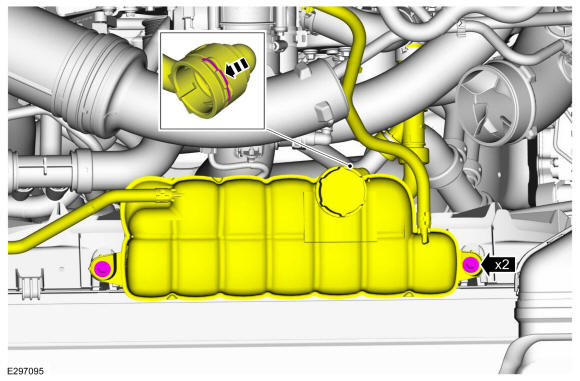

- Position the degas bottle and install the bolts.
  Torque: 62 lb.in (7 Nm)
- Connect the lower degas bottle hose and install the spring clip.
Courtesy of FORD MOTOR COMPANY
Install the LH CAC Intake Pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
