Valve Cover RH: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Installation of new seals is only required if damaged seals were removed.

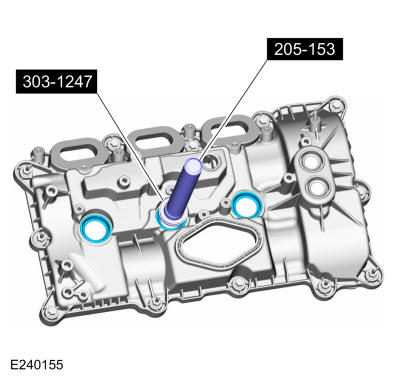

If removed, using the special tools, install the spark plug tube seals. Use Special Service Tool: 303-1247 VCT Spark Plug Tube Seal Remover and Installer, 205-153 (T80T-4000-W) Handle.

Courtesy of FORD MOTOR COMPANY
NOTE: Installation of new seals is only required if damaged seals were removed.

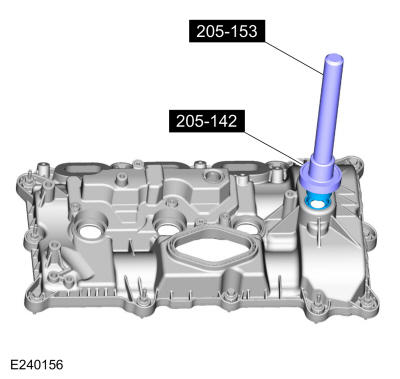

If removed, using the special tools, install the VCT oil control solenoid seals. Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone, 205-153 (T80T-4000-W) Handle.

Courtesy of FORD MOTOR COMPANY

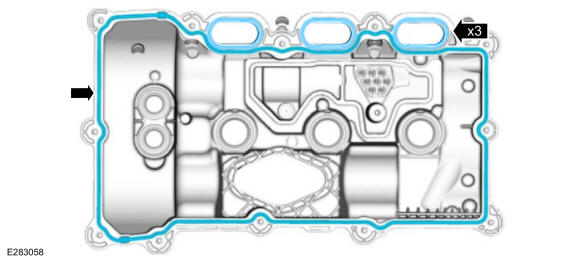

Install the new valve cover and intake port gaskets.

Courtesy of FORD MOTOR COMPANY
NOTE: If the valve cover is not installed and the fasteners tightened within 4 minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, use silicone gasket remover and metal surface prep. Failure to follow this procedure can cause future oil leakage.

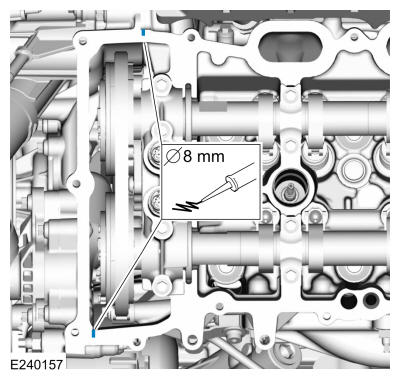

Apply an 8 mm (0.31 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-cylinder head joints.

Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY
Install the valve cover and tighten the studbolts, bolts in the sequence shown below.
Torque: 89 lb.in (10 Nm)

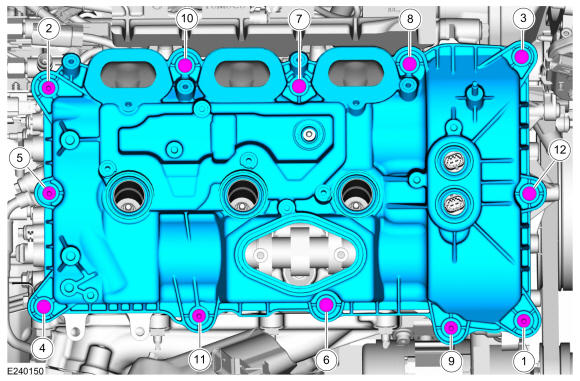

Fig 1: RH Valve Cover Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY

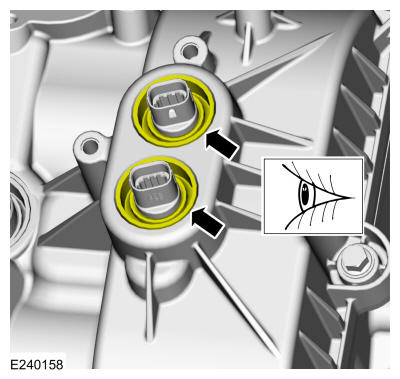

Make sure the VCT seals in the valve cover are below the top of the VCT oil control solenoid electrical connector or the VCT seal may leak oil.

Courtesy of FORD MOTOR COMPANY
Attach the fuel supply tube retainers.

Courtesy of FORD MOTOR COMPANY

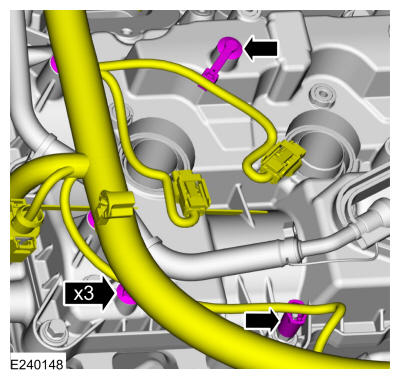

Attach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

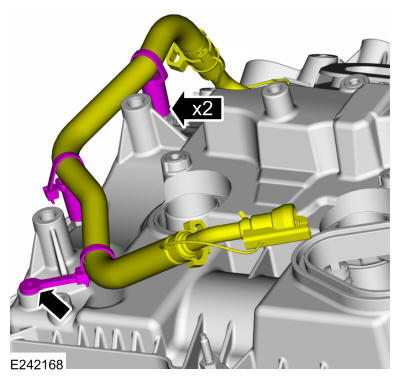

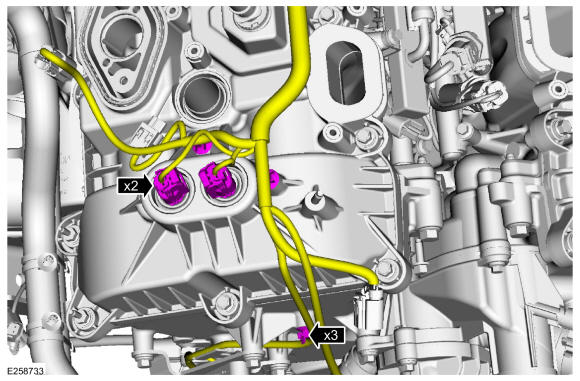

Connect the VCT solenoid electrical connectors and the wire retainers.

Courtesy of FORD MOTOR COMPANY

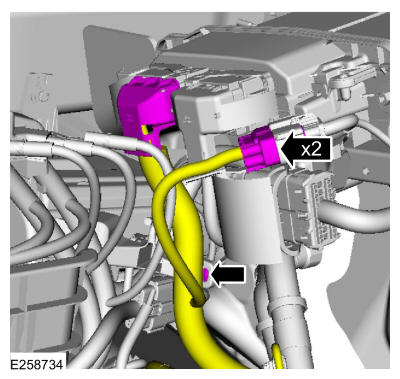

Install the PCM electrical connectors and the pin-type retainer.

Courtesy of FORD MOTOR COMPANY
Install the RH ignition coil-on-plugs. Refer to: Ignition Coil-On-Plug .
Install the high-pressure fuel pump. Refer to: High-Pressure Fuel Pump .

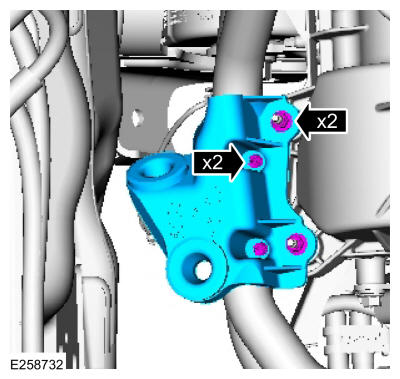

Position back the CAC tube bracket and install the pin-type retainers and the nuts.
Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
Install the intake manifold. Refer to: Intake Manifold .
Install the CAC intake pipe RH. Refer to: Charge Air Cooler (CAC) Intake Pipe .
