Timing Chain: Installation

LH timing chain

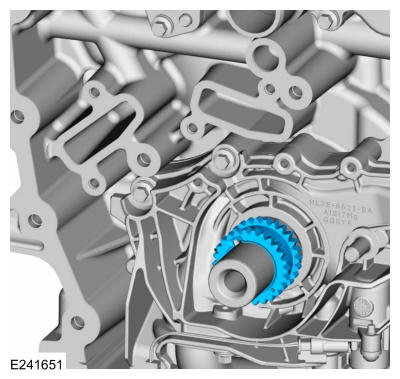

1. Install the timing chain sprocket.

   Courtesy of FORD MOTOR COMPANY

2. NOTE: The crankshaft sprocket is reversible with a timing mark on each face. For installation of each timing chain, utilize the timing mark on the front face of the crankshaft sprocket for chain alignment.

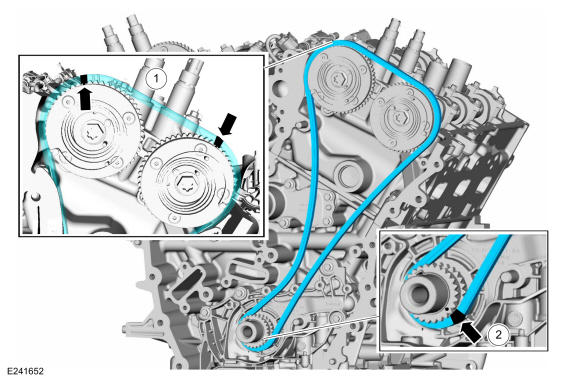

   1. Install the LH timing chain with the single colored links aligned with the timing marks on the VCT units.
   2. Install the double colored links so they straddle the timing mark on the crankshaft sprocket.

   Courtesy of FORD MOTOR COMPANY

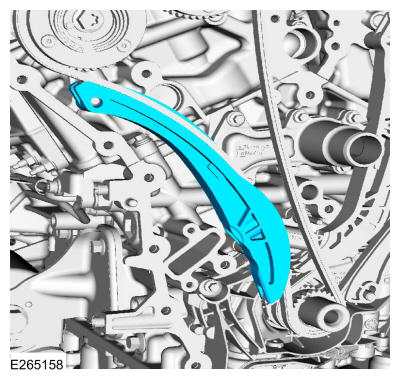

3. Install the LH timing chain tensioner arm.

   Courtesy of FORD MOTOR COMPANY

4. 1. Position the tensioner in a soft-jawed vise.
   2. Using pliers, squeeze the ends of the ratchet wire clip together.
   3. Using the soft-jawed vise, compress the plunger to the reset position.
   4. Install a locking pin in the 2 holes of the tensioner body to hold the plunger in place.

   Courtesy of FORD MOTOR COMPANY

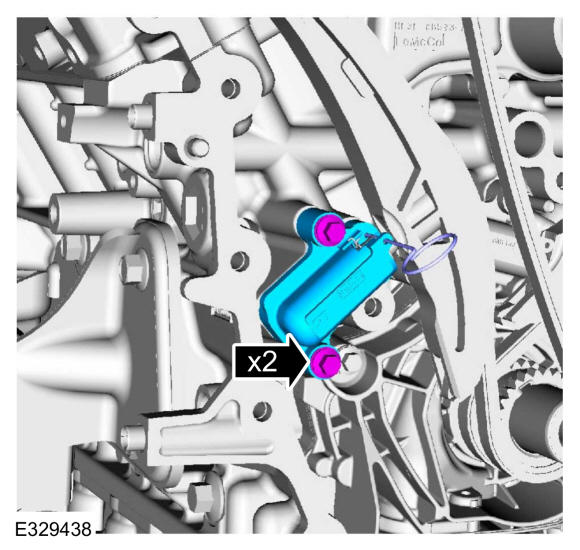

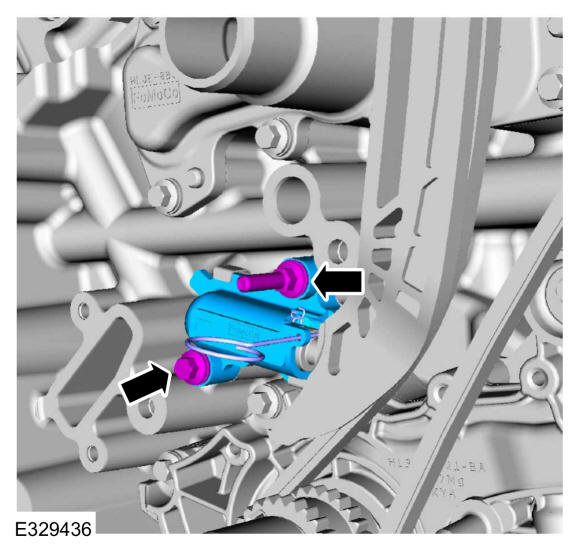

5. Position the LH timing chain tensioner with the end of the tensioner correctly engaged to the tensioner arm and install the fasteners.

   Torque: 89 lb.in (10 Nm)

   Courtesy of FORD MOTOR COMPANY

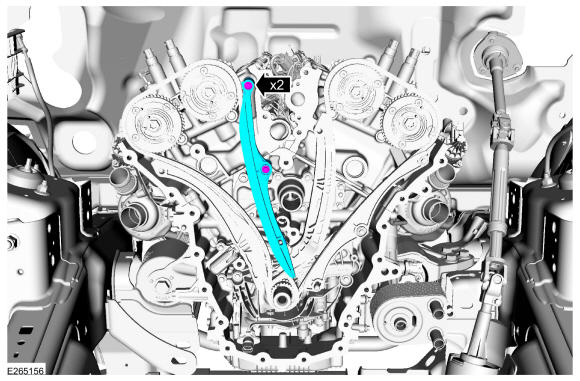

6. Install the LH timing chain guide and bolts.

   Torque: 89 lb.in (10 Nm)

   Courtesy of FORD MOTOR COMPANY

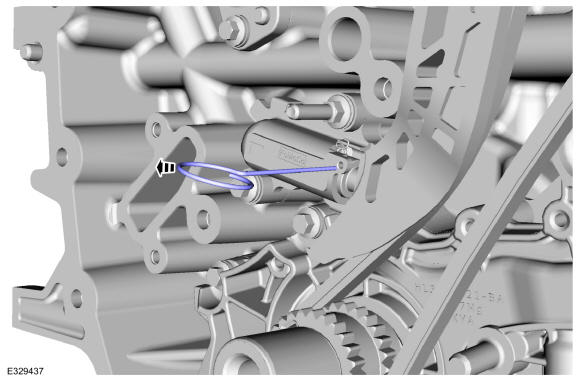

7. Remove the pin from the tensioner.

   Courtesy of FORD MOTOR COMPANY

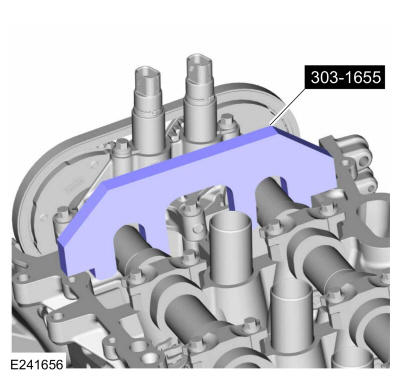

8. Remove Special Service Tool: 303-1655 Tool, Camshaft Holding.

   Courtesy of FORD MOTOR COMPANY

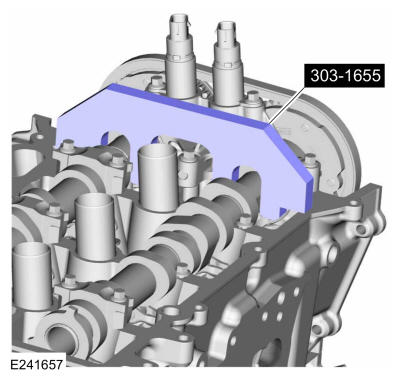

9. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

   Install Special Service Tool: 303-1655 Tool, Camshaft Holding.

   Courtesy of FORD MOTOR COMPANY

   RH timing chain

10. NOTE: The crankshaft sprocket is reversible with a timing mark on each face. For installation of each timing chain, utilize the timing mark on the front face of the crankshaft sprocket for chain alignment.

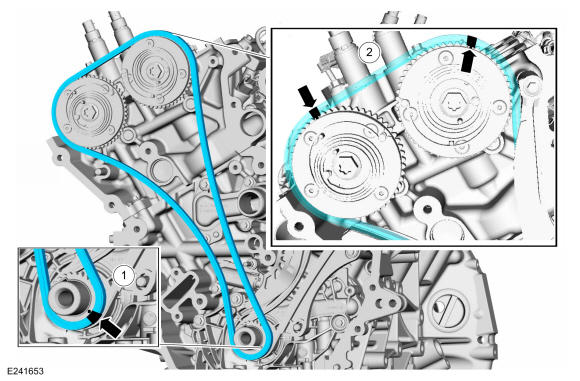

    1. Install the RH timing chain with the single colored links aligned with the timing marks on the VCT units.
    2. Install the double colored links so they straddle the timing mark on the crankshaft sprocket.

    Courtesy of FORD MOTOR COMPANY

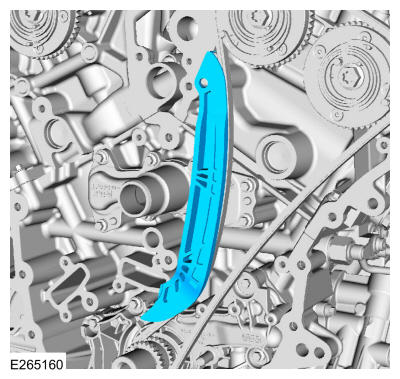

11. Install the RH timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

12. 1. Position the tensioner in a soft-jawed vise.
    2. Using pliers, squeeze the ends of the ratchet wire clip together.
    3. Using the soft-jawed vise, compress the plunger to the reset position.
    4. Install a locking pin in the 2 holes of the tensioner body to hold the plunger in place.

    Courtesy of FORD MOTOR COMPANY

13. Position the RH timing chain tensioner with the end of the tensioner correctly engaged to the tensioner arm and install the fasteners.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

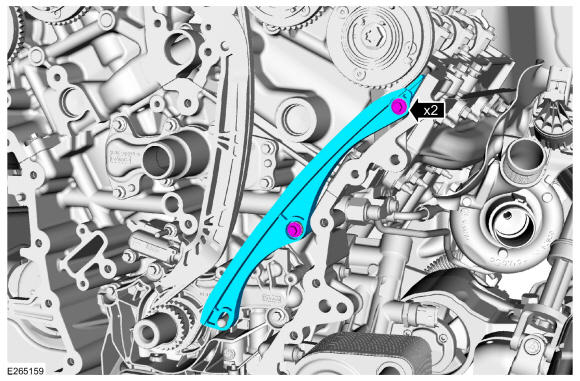

14. Install the RH timing chain guide and bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

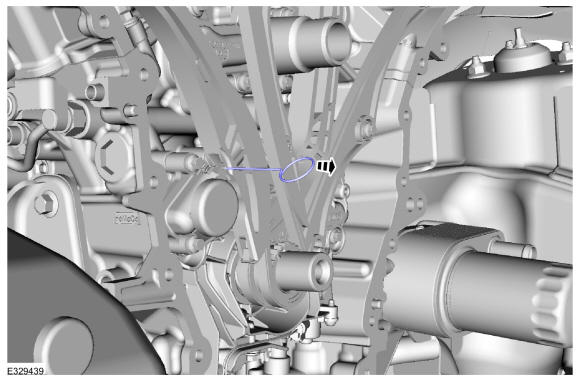

15. Remove the pin from the tensioner.

    Courtesy of FORD MOTOR COMPANY

16. Remove Special Service Tool: 303-1655 Tool, Camshaft Holding.

    Courtesy of FORD MOTOR COMPANY

    RH and LH timing chains

17. Install the engine front cover. Refer to: Engine Front Cover .
