Timing Chain Tensioner: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan may cause engine failure.

RH and LH tensioners

Remove the engine front cover. Refer to: Engine Front Cover .
RH timing chain tensioner

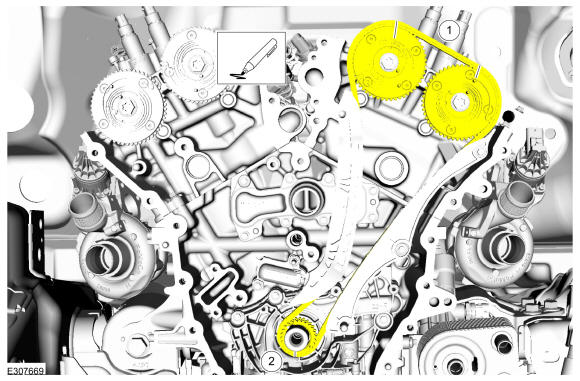

1. Scribe a location mark on the RH timing chain and the VCT units.
2. Scribe a location mark on the RH timing chain and the crankshaft sprocket.
Courtesy of FORD MOTOR COMPANY

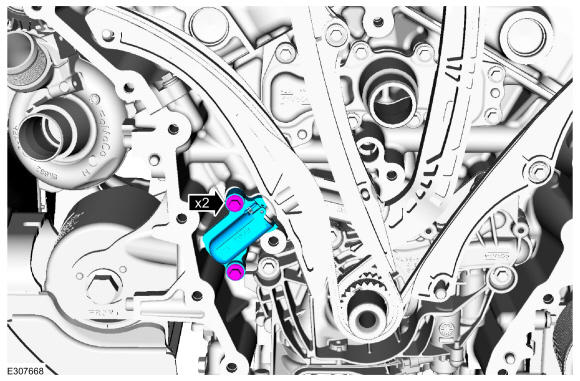

Remove the bolts and the RH timing chain tensioner.

Courtesy of FORD MOTOR COMPANY

LH timing chain tensioner
Install the crankshaft pulley bolt.

Courtesy of FORD MOTOR COMPANY
1. Rotate the crankshaft clockwise.
2. Position the crankshaft sprocket keyway at the 11 o'clock position.
3. Verify the timing marks on the VCT units are at the positions shown below.
Courtesy of FORD MOTOR COMPANY
NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

Install Special Service Tool: 303-1655 Tool, Camshaft Holding.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the RH timing chain guide.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the RH timing chain tensioner.

Courtesy of FORD MOTOR COMPANY
Remove the RH timing chain tensioner arm.

Courtesy of FORD MOTOR COMPANY
Remove the RH timing chain.

Courtesy of FORD MOTOR COMPANY
Remove the crankshaft pulley bolt.

Courtesy of FORD MOTOR COMPANY
1. Scribe a location mark on the LH timing chain and the VCT units.
2. Scribe a location mark on the LH timing chain and the crankshaft sprocket.
Courtesy of FORD MOTOR COMPANY

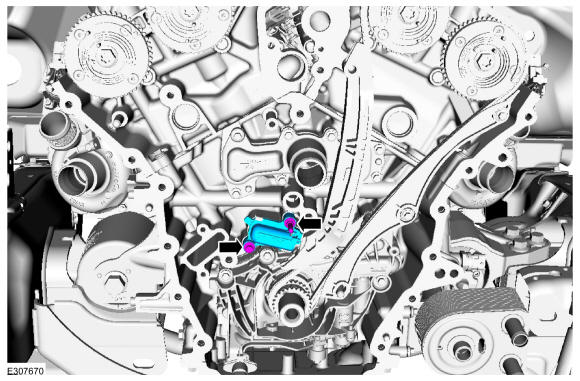

Remove the bolts and the LH timing chain tensioner.

Courtesy of FORD MOTOR COMPANY
