Oil Pump - Raptor: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan may cause engine failure.

4x2/4x4

Remove the engine front cover. Refer to: Engine Front Cover - Raptor .
Install the crankshaft pulley bolt.

Courtesy of FORD MOTOR COMPANY
1. Rotate the crankshaft clockwise.
2. Position the crankshaft sprocket keyway at the 11 o'clock position.

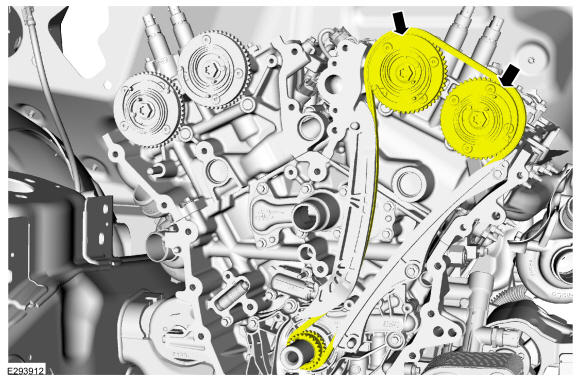

3. Verify the timing marks on the VCT units are at the positions shown below.
Courtesy of FORD MOTOR COMPANY
NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

Install Special Service Tool: 303-1655 Tool, Camshaft Holding.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the RH timing chain guide.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the RH timing chain tensioner.

Courtesy of FORD MOTOR COMPANY
Remove the RH timing chain tensioner arm.

Courtesy of FORD MOTOR COMPANY
Remove the RH timing chain.

Courtesy of FORD MOTOR COMPANY
Verify the timing marks on the VCT units are at the positions shown below.

Courtesy of FORD MOTOR COMPANY
NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

Remove Special Service Tool: 303-1655 Tool, Camshaft Holding.

Courtesy of FORD MOTOR COMPANY
NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

Install Special Service Tool: 303-1655 Tool, Camshaft Holding.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the LH timing chain guide.

Courtesy of FORD MOTOR COMPANY
Remove the studbolt, bolt and the LH timing chain tensioner.

Courtesy of FORD MOTOR COMPANY
Remove the LH timing chain tensioner arm.

Courtesy of FORD MOTOR COMPANY
Remove the LH timing chain.

Courtesy of FORD MOTOR COMPANY
Remove the crankshaft pulley bolt.

Courtesy of FORD MOTOR COMPANY
Remove the timing chain sprocket.

Courtesy of FORD MOTOR COMPANY
Remove the nuts, bolts and the crossmember.

Courtesy of FORD MOTOR COMPANY

4x4
Using an adjustable stand, support the front axle. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY
Remove the axle shaft housing carrier bushing bolt.

Courtesy of FORD MOTOR COMPANY
Remove the upper front axle carrier mounting bushing bolt.

Courtesy of FORD MOTOR COMPANY
Remove the lower front axle carrier mounting bushing bolt.

Courtesy of FORD MOTOR COMPANY
Using an adjustable stand, lower the axle to allow clearance for the oil pan to be removed. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

4x2/4x4
Remove the transmission tube pin-type retainer from the oil pan.

Courtesy of FORD MOTOR COMPANY
Remove the oil pan bolt.

Courtesy of FORD MOTOR COMPANY
Remove the oil pan bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: The generator wiring harness retainer is being removed for clearance to install the oil pan.

Detach the generator wiring harness retainer from the engine block.

Courtesy of FORD MOTOR COMPANY
Remove the oil pan bolts.

Courtesy of FORD MOTOR COMPANY
Using a pry tool on the pry pads shown below, remove the oil pan.

Courtesy of FORD MOTOR COMPANY
Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

Courtesy of FORD MOTOR COMPANY
Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

Courtesy of FORD MOTOR COMPANY
Remove the bolts and oil pump screen and pickup tube.

Courtesy of FORD MOTOR COMPANY
Remove and discard the oil pump screen and pickup tube O-ring seal.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and oil pump.

GFD459586

Courtesy of FORD MOTOR COMPANY
