Oil Cooler: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure the oil cooler-to-oil filter adapter is aligned.

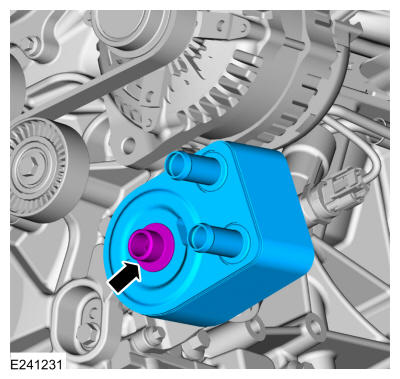

Install the oil cooler and the retainer.

Torque: Stage 1: 43 lb.ft (58 Nm) | Stage 2: 9°

Courtesy of FORD MOTOR COMPANY

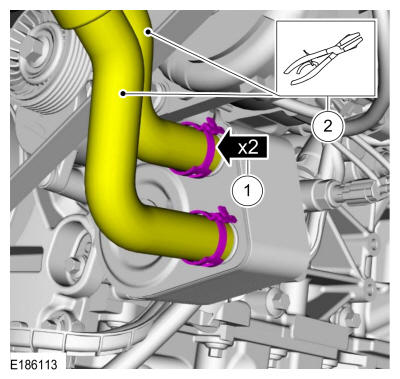

1. Using the hose clamp installer, install the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

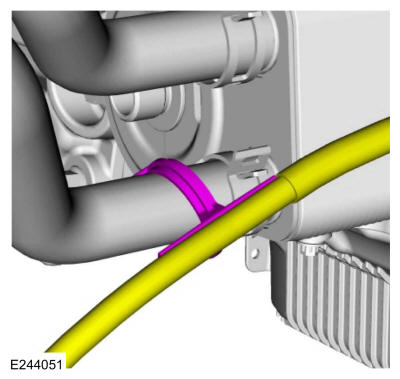

2. Remove the hose locking pliers. Use the General Equipment: Locking Pliers
Courtesy of FORD MOTOR COMPANY
Connect the block heater cord.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not lubricate the engine oil filter gasket.

Install a new engine oil filter.

Torque: Stage 1: 44 lb.in (5 Nm) | Stage 2: 180°

Courtesy of FORD MOTOR COMPANY
Install the air cleaner outlet pipe LH. Refer to: Air Cleaner Outlet Pipe LH .
Slide the engine appearance cover into the retaining bracket and install the retainers.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
Inspect and adjust the coolant level in the degas bottle.
Material: Motorcraft® Yellow Prediluted Antifreeze/Coolant / VC-13DL-G (WSS-M97B57-A2)
Inspect and adjust the engine oil level.
Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)
