Intake Manifold: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
Remove the engine appearance cover retainers, release the engine appearance cover from the rear retainers and then remove the engine appearance cover.

Courtesy of FORD MOTOR COMPANY
Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
Loosen the clamp and position the throttle body intake pipe aside.

Courtesy of FORD MOTOR COMPANY
Disconnect the throttle body electrical connector and wiring harness retainer.

Courtesy of FORD MOTOR COMPANY
Remove the PCV tube. Refer to: QUICK RELEASE COUPLING .

Courtesy of FORD MOTOR COMPANY
Disconnect the wire harness retainers from the intake manifold.

Courtesy of FORD MOTOR COMPANY
- Disconnect the fuel vapor tube to the intake manifold. Refer to: QUICK RELEASE COUPLING .
- Disconnect the vacuum hose.
Courtesy of FORD MOTOR COMPANY
Disconnect the hose couplings at turbocharger inlet tube. Refer to: QUICK RELEASE COUPLING .

Courtesy of FORD MOTOR COMPANY

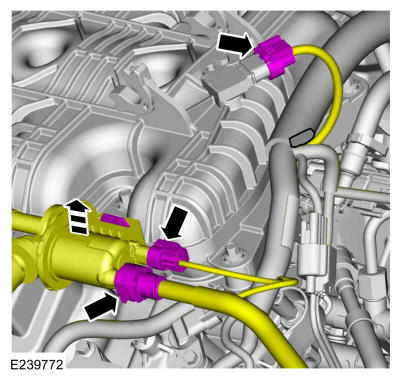

- Disconnect the MAPT electrical connector.
- Disconnect the EVAP purge solenoid electrical connector and quick connect coupling. Refer to: QUICK RELEASE COUPLING .
- Lift the EVAP purge valve off of the intake manifold mounting tab.
Courtesy of FORD MOTOR COMPANY

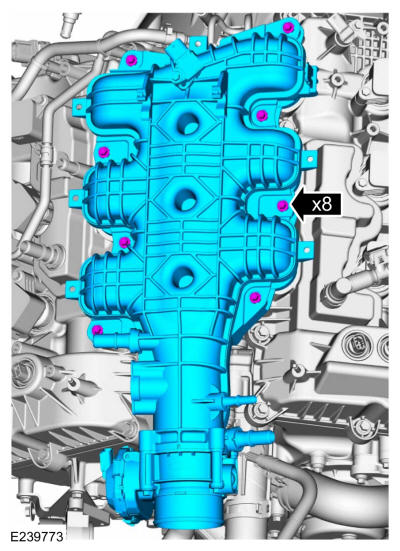

Remove the bolts and the intake manifold.

Courtesy of FORD MOTOR COMPANY

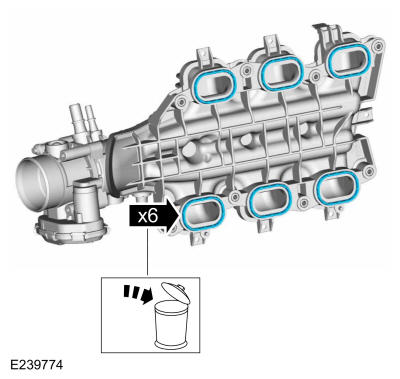

- Remove and discard the intake manifold gaskets.
- Clean and inspect all of the sealing surfaces of the cylinder heads and the intake manifold.

Courtesy of FORD MOTOR COMPANY
