Intake Manifold: Installation
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

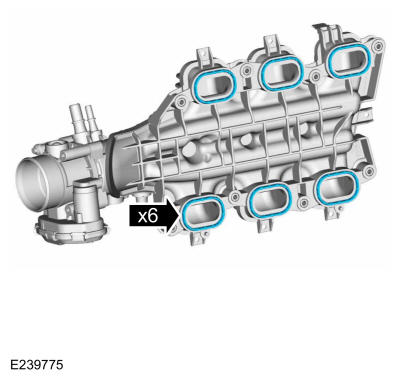

- Install the new intake manifold gaskets.
-
NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

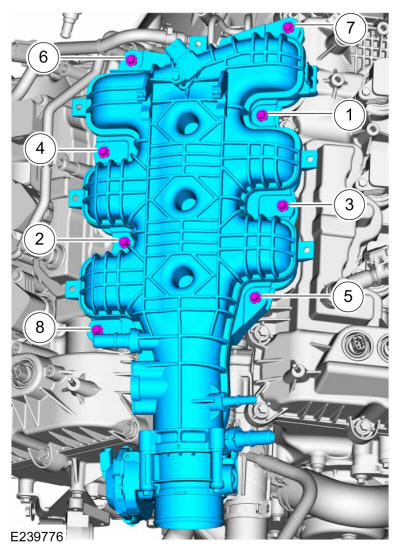

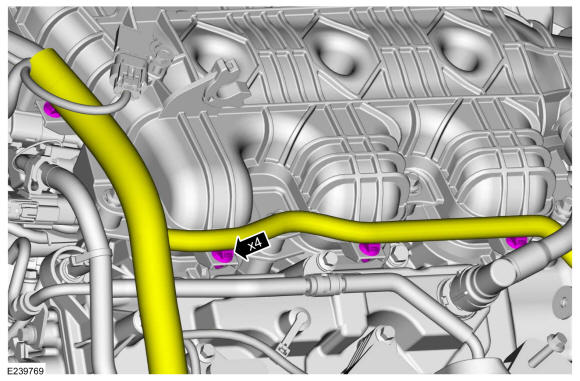

Install the intake manifold and the bolts.
Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45°
-
- Slide the EVAP purge valve onto the intake manifold mounting tab.

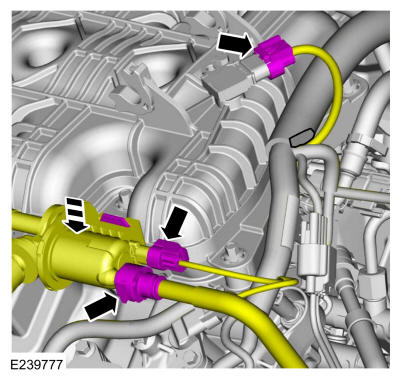

- Connect the EVAP purge solenoid electrical connector and quick connect coupling. Refer to: QUICK RELEASE COUPLING .
- Connect the MAPT electrical connector.

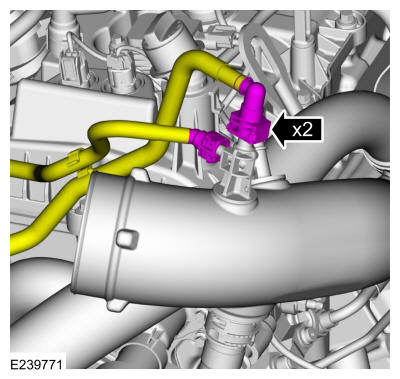

- Connect the quick connect couplings at turbocharger inlet tube. Refer to: QUICK RELEASE COUPLING
.
-

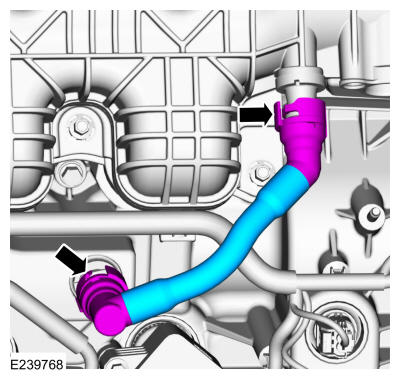

- Connect the fuel vapor tube to the intake manifold. Refer to: QUICK RELEASE COUPLING .

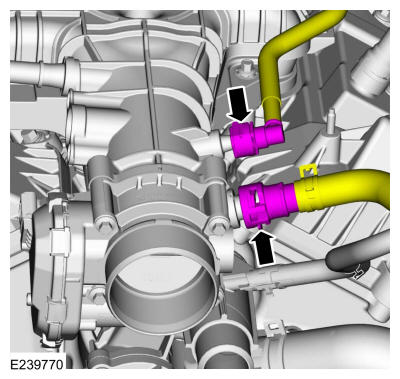

- Install the vacuum hose.
- Connect the wire harness retainers to the intake manifold.
- Install the PCV tube Refer to: QUICK RELEASE COUPLING
.

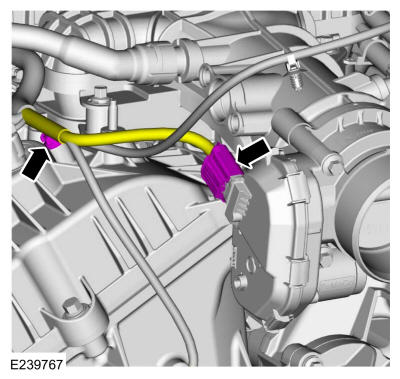

- Connect the throttle body electrical connector and wiring harness retainer.

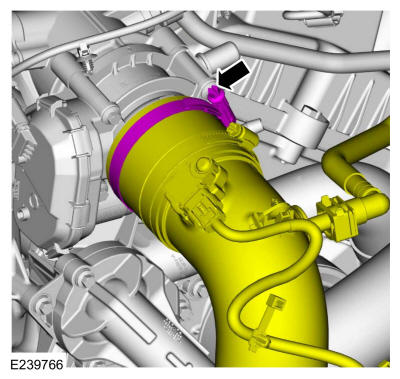

- Position back the throttle body intake pipe and tighten the clamp.
Torque: 44 lb.in (5 Nm)
- Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
- Slide the engine appearance cover into the retaining bracket and install the retainers.
Torque: 97 lb.in (11 Nm)
- Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
