Removal And Installation: Flexplate: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: The offset hole may be used in four locations.

    Install the flexplate and the bolts. Tighten in sequence shown below.

    Torque: 59 lb.ft (80 Nm)

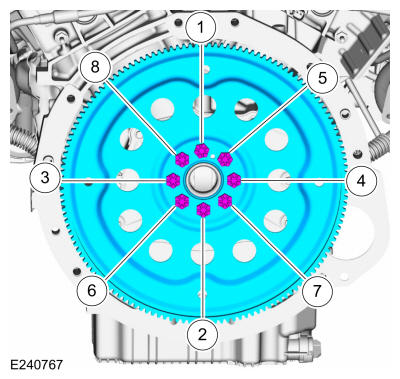

    Fig 1: Flexplate Bolts Tightening Sequence
    GFD460185Courtesy of FORD MOTOR COMPANY
  2. Install the transmission. Refer to: Transmission .
  3. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
