Exhaust Manifold RH: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

- Install new exhaust manifold studs in the sequence shown below.
  Torque: 159 lb.in (18 Nm)
- Install a new gasket.

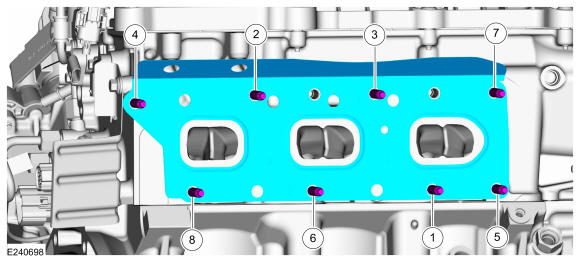

Fig 1: RH Exhaust Manifold Studs Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the exhaust manifold and new nuts in the sequence shown below.
Torque: Stage 1: 168 lb.in (19 Nm) | Stage 2: 18 lb.ft (25 Nm)

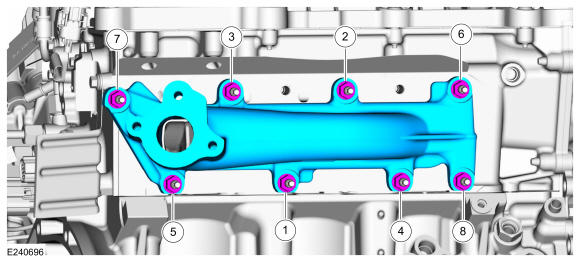

Fig 2: RH Exhaust Manifold Nuts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the RH turbocharger. Refer to: Turbocharger RH .
