Engine Mount RH: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Clean the engine mount-to-cylinder block and engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.

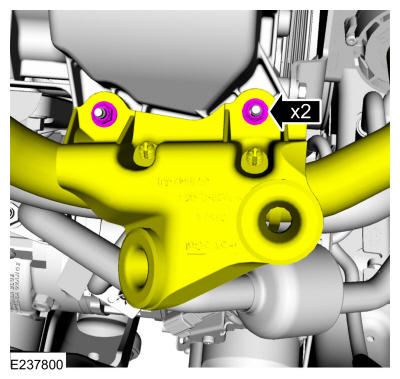

Position the RH engine mount into the vehicle.

Courtesy of FORD MOTOR COMPANY
Position the RH engine mount-to-cylinder block bracket and install the new bolts in the sequence shown below.
Torque: 57 lb.ft (77 Nm)

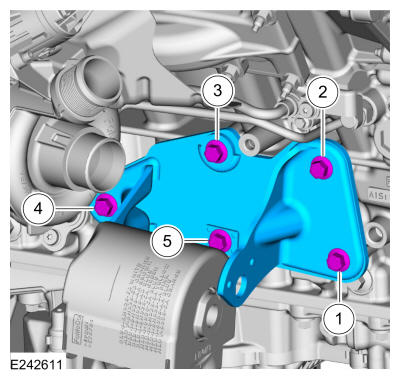

Fig 1: RH Engine Mount-To-Cylinder Block Bracket Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
NOTE: Only use hand tools when installing the engine mount studs or damage to the engine mount can occur.

NOTE: Apply threadlock to the stud threads prior to installation.

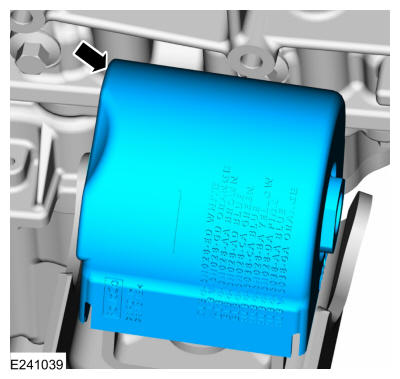

Install the engine mount studs.

Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Only use hand tools when installing the RH engine mount nuts or damage to the engine mount can occur.

Install the new RH engine mount nuts.

Torque: 111 lb.ft (150 Nm)

Courtesy of FORD MOTOR COMPANY
Lower the engine to the installed position.
NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

Install the new LH engine mount through bolt.

Torque: 258 lb.ft (350 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

Install the new RH engine mount through bolt.

Torque: 258 lb.ft (350 Nm)

Courtesy of FORD MOTOR COMPANY

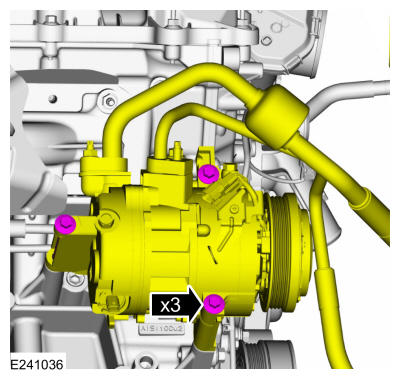

Position back the A/C compressor and install the bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

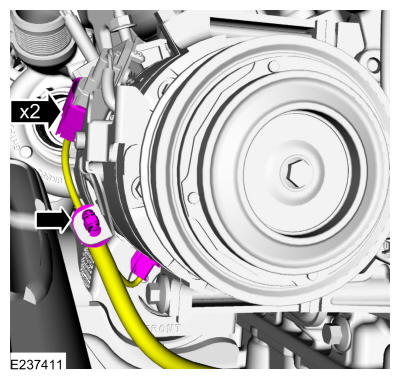

Connect the A/C compressor electrical connectors and wire retainer.

Courtesy of FORD MOTOR COMPANY

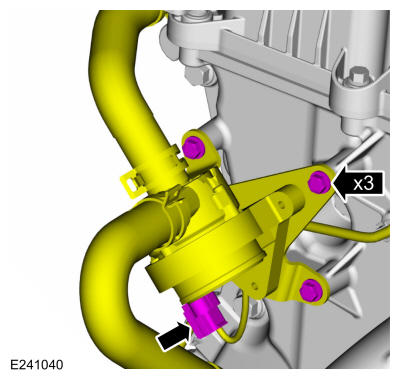

Position back the coolant pump and install the bolts. Connect the coolant pump electrical connector.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Install the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
2. Install the starter motor. Refer to: Starter Motor .
NOTE: Only use hand tools when loosening or tightening the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

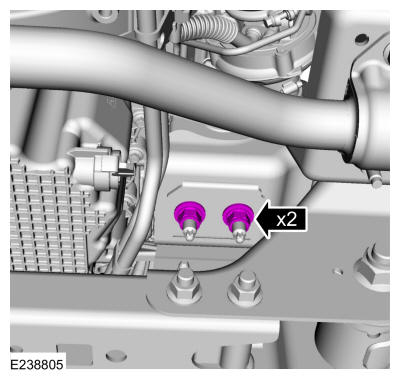

Remove and discard the transmission mount-to-crossmember nuts. Install new transmission mount-to-crossmember nuts.

Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY
Position the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe and install the bolts.
Torque: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY
Install the new RH catalytic converter-to-turbocharger nuts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
Install the new LH catalytic converter-to-turbocharger nuts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped, install the front driveshaft. Refer to: Front Driveshaft .
If equipped, install the skid plate and the bolts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
- If equipped, install the underbody shield and the bolts.
  Torque: 30 lb.ft (40 Nm)
- Install the pin-type retainers.
Courtesy of FORD MOTOR COMPANY
- If equipped, install the transmission housing cover and attach the retainer.
- Install the bolts.
  Torque: 71 lb.in (8 Nm)
Courtesy of FORD MOTOR COMPANY
Remove the special tools. Remove Special Service Tool: 303-F070 Support Bar, Engine, 303-1246 Engine Spreader Bar, 303-1654 Lift Eyes.

Courtesy of FORD MOTOR COMPANY
Install the right rear ignition coil. Refer to: Ignition Coil-On-Plug .
Install the intake manifold. Refer to: Intake Manifold .
Position back the CAC tube bracket and install the nuts.
Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
Install the CAC outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
Install the CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
Slide the engine appearance cover into the retaining bracket and install the retainers.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: LH shown, RH similar.
1. Position the hood shock and attach.
2. Install the clip.
Courtesy of FORD MOTOR COMPANY
Position the hood and install the nuts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Start and check the exhaust system for leaks.
