Engine Mount RH - Raptor: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Discard all engine mount fasteners and install new fasteners.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. NOTE: RH shown, LH similar.

    Index-mark the hood hinge location.

    GFD459469Courtesy of FORD MOTOR COMPANY
  3. Remove the nuts and the hood.
    GFD459470Courtesy of FORD MOTOR COMPANY
  4. NOTE: LH shown, RH similar.

    1. Release the clip.
    2. Detach and position the hood shock aside.

    GFD460135Courtesy of FORD MOTOR COMPANY
  5. Remove the engine appearance cover retainers. Release the engine appearance cover from the rear retainers and then remove the engine appearance cover.
    GFD460131Courtesy of FORD MOTOR COMPANY
  6. Remove the CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe - Raptor .
  7. Remove the CAC outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe - Raptor .
  8. Remove the nuts and position aside the CAC tube bracket.
    GFD460167Courtesy of FORD MOTOR COMPANY
  9. Remove the intake manifold. Refer to: Intake Manifold - Raptor .
  10. Remove the right rear ignition coil. Refer to: Ignition Coil-On-Plug .
  11. Install the special tools. Install Special Service Tool: 303-F070 Support Bar, Engine, 303-1246 Engine Spreader Bar, 303-1654 Lift Eyes.

    Torque: 18 lb.ft (25 Nm)

    GFD460136Courtesy of FORD MOTOR COMPANY
  12. Remove the bolts and the transmission housing cover.
    GFD460160Courtesy of FORD MOTOR COMPANY

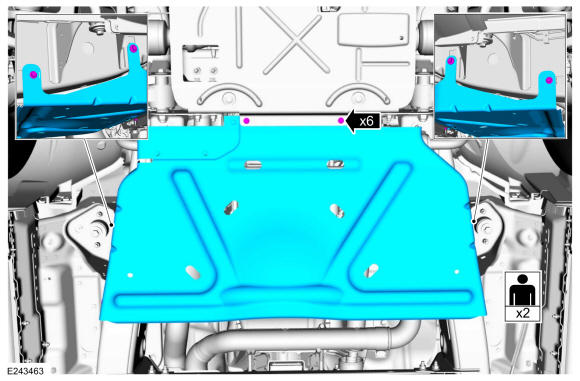

  13. Remove the bolts and the underbody shield.
    GFD460161Courtesy of FORD MOTOR COMPANY

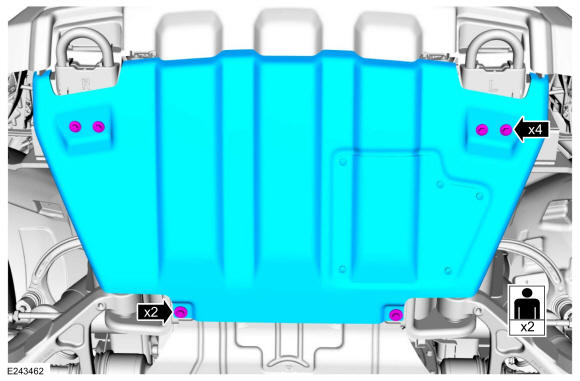

  14. Remove the bolts and the skid plate.
    GFD460162Courtesy of FORD MOTOR COMPANY
  15. Remove the front driveshaft. Refer to: Front Driveshaft .
  16. NOTE: Make sure that the mating faces are clean and free of foreign material.

    Remove and discard the LH catalytic converter flange nuts.

    GFD460140Courtesy of FORD MOTOR COMPANY
  17. NOTE: Make sure that the mating faces are clean and free of foreign material.

    Remove and discard the RH catalytic converter flange nuts.

    GFD460141Courtesy of FORD MOTOR COMPANY
    • NOTE: Make sure that the mating faces are clean and free of foreign material.
      NOTE: Support the exhaust intermediate pipe prior to removing the bolts or damage to the flex pipe may occur.

      Remove the exhaust flange bolts and separate the pipe.

    • Position the catalytic converter assembly back.

    GFD458871Courtesy of FORD MOTOR COMPANY
  19. NOTE: Only use hand tools when removing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Loosen the transmission mount-to-crossmember nuts.

    GFD458872Courtesy of FORD MOTOR COMPANY
  20. Remove the following items:

    1. Remove the starter motor. Refer to: Starter Motor - Raptor .
    2. Remove the A/C belt. Refer to: Air Conditioning (A/C) Compressor Belt .

  21. Disconnect the coolant pump electrical connector. Remove the bolts and position aside the coolant pump.
    GFD460168Courtesy of FORD MOTOR COMPANY
  22. Disconnect the A/C compressor electrical connectors and wire retainer.
    GFD460169Courtesy of FORD MOTOR COMPANY
  23. Remove the bolts and position aside the A/C compressor.
    GFD460170Courtesy of FORD MOTOR COMPANY
  24. NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Remove and discard the RH engine mount through bolt.

    GFD460142Courtesy of FORD MOTOR COMPANY
  25. NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Remove and discard the LH engine mount through bolt.

    GFD460143Courtesy of FORD MOTOR COMPANY
  26. NOTE: Only use hand tools when loosening or tightening the engine mount nuts and studs or damage to the engine mount can occur.
    NOTE: The engine mount studs may come off with the nuts.

    Remove and discard the engine mount nuts. Remove the engine mount studs.

    GFD460171Courtesy of FORD MOTOR COMPANY
  27. Raise the engine approximately 30 mm (1.18 in).

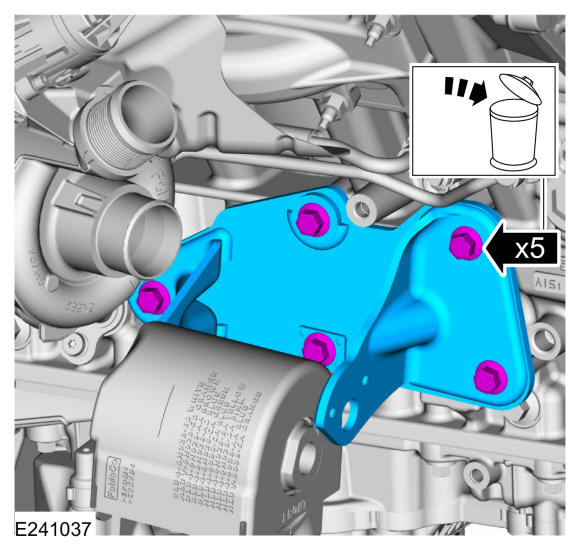

  28. Remove the bolts and the RH engine mount-to-cylinder block bracket. Discard the bolts.
    GFD460172Courtesy of FORD MOTOR COMPANY
  29. Remove the RH engine mount.
GFD460173Courtesy of FORD MOTOR COMPANY
