Engine Mount LH: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

4x2/4x4

  1. Clean the engine mount-to-cylinder block and engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.
  2. NOTE: If necessary, the following 4 steps are to install the LH engine mount insulator-to-cylinder block bracket.

    Install the LH engine mount-to-cylinder block bracket and install the new bolts in the sequence shown below.

    Torque: 57 lb.ft (77 Nm)

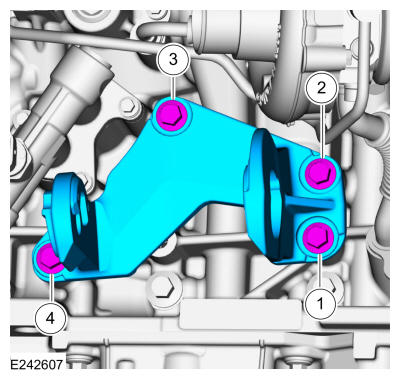

    Fig 1: Engine Mount-To-Cylinder Block Bracket Bolts Tightening Sequence
    GFD460150Courtesy of FORD MOTOR COMPANY

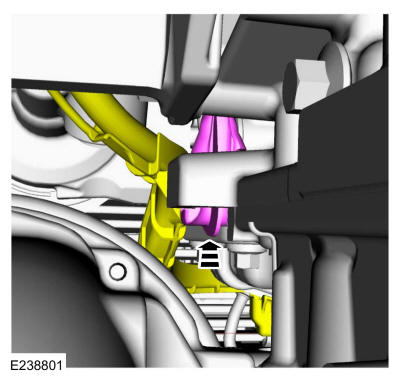

  3. Attach the generator wiring harness retainer to the engine block.
    GFD460151Courtesy of FORD MOTOR COMPANY

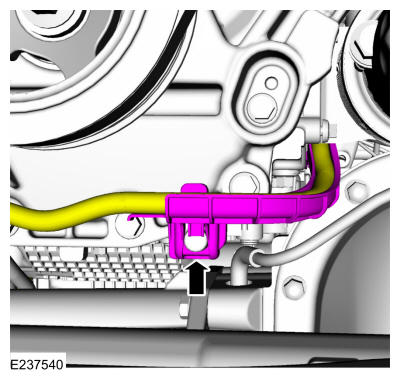

  4. Attach the generator wiring harness to the engine front cover.
    GFD460147Courtesy of FORD MOTOR COMPANY

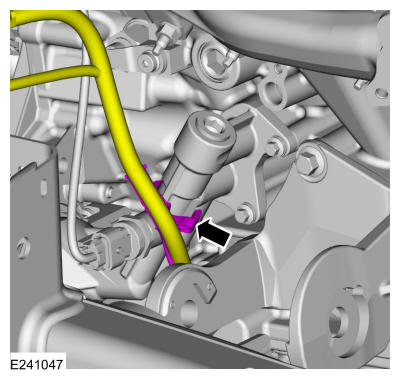

  5. Attach the generator wiring harness to the oil filter adapter.
    GFD460146Courtesy of FORD MOTOR COMPANY
  6. NOTE: Replace the nut plate with part number W716699-S439.

    If removed, install a new engine mount-to-frame nut plate.

    GFD458888Courtesy of FORD MOTOR COMPANY

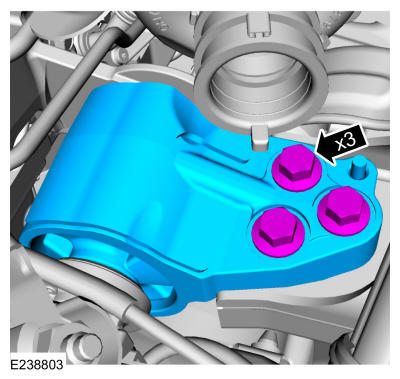

  7. Position the LH engine mount and hand tighten the new engine mount-to-frame bolts.
    GFD460152Courtesy of FORD MOTOR COMPANY

    4x4

  8. NOTE: Use care when positioning the front axle housing or the vacuum lines to the axle solenoid may become disconnected or damaged.

    Using an adjustable stand, raise the front axle carrier into position. Use the General Equipment: Vehicle/Axle Stands

    GFD458896Courtesy of FORD MOTOR COMPANY
  9. NOTE: It may be necessary to reposition the axle assembly to prevent interference with the steering components when installing the bolt.

    Install the new upper front axle carrier mounting bushing nut and the bolt finger tight.

    GFD458951Courtesy of FORD MOTOR COMPANY
  10. Install the new axle shaft housing carrier bushing nut and the bolt finger tight.
    GFD458898Courtesy of FORD MOTOR COMPANY
  11. Install the new lower front axle carrier mounting bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    GFD458899Courtesy of FORD MOTOR COMPANY
  12. Tighten the axle shaft housing carrier bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    GFD458953Courtesy of FORD MOTOR COMPANY
  13. Tighten the upper front axle carrier mounting bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    GFD458901Courtesy of FORD MOTOR COMPANY
  14. Remove the adjustable stand. Use the General Equipment: Vehicle/Axle Stands
    GFD458875Courtesy of FORD MOTOR COMPANY
  15. Install the steering gear boot.
    GFD458874Courtesy of FORD MOTOR COMPANY
    1. Position back the steering column shaft U-joint to the steering gear.
    2. WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

      Install a new steering column shaft bolt.

      Torque: 22 lb.ft (30 Nm)

    GFD458902Courtesy of FORD MOTOR COMPANY
  16. Remove the holding device from the steering wheel.
    GFD458607Courtesy of FORD MOTOR COMPANY

    4x2/4x4

  17. NOTE: Only use hand tools when removing or installing the engine mount-to-frame bolts or damage to the engine mount-to-frame nut plate can occur.

    Torque the LH engine mount-to-frame bolts in the sequence shown below.

    Torque: 129 lb.ft (175 Nm)

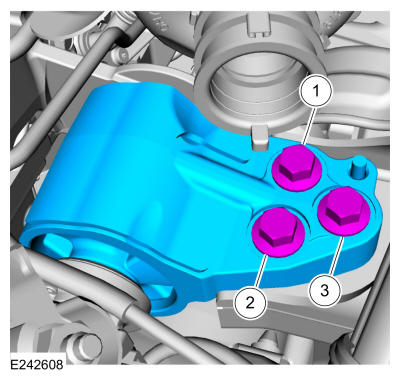

    Fig 2: LH Engine Mount-To-Frame Bolts Tightening Sequence
    GFD460153Courtesy of FORD MOTOR COMPANY
  18. Lower the engine to the installed position.
  19. NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

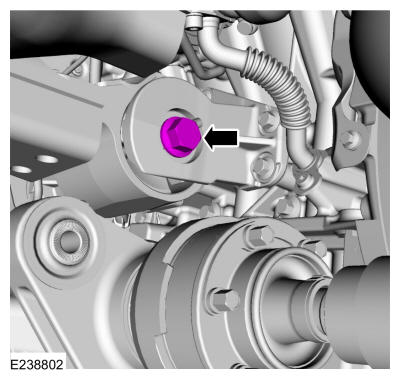

    Install the new LH engine mount through bolt.

    Torque: 258 lb.ft (350 Nm)

    GFD460154Courtesy of FORD MOTOR COMPANY
  20. NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

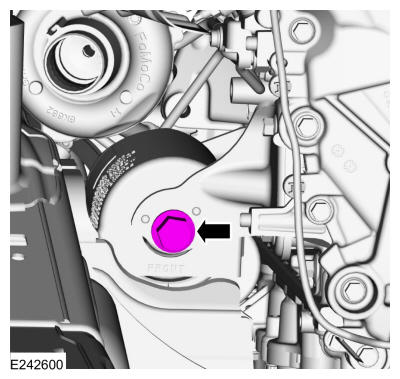

    Install the new RH engine mount through bolt.

    Torque: 258 lb.ft (350 Nm)

    GFD460155Courtesy of FORD MOTOR COMPANY
  21. NOTE: Only use hand tools when loosening or tightening the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Remove and discard the transmission mount-to-crossmember nuts. Install new transmission mount-to-crossmember nuts.

    Torque: 85 lb.ft (115 Nm)

    GFD458872Courtesy of FORD MOTOR COMPANY

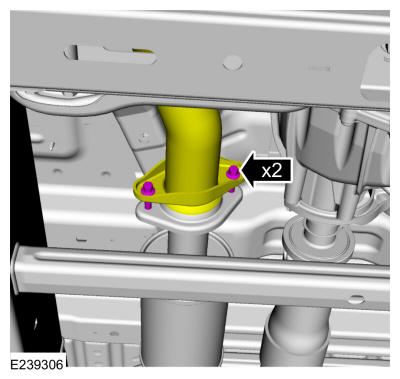

  22. Position the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe and install the bolts.

    Torque: 46 lb.ft (63 Nm)

    GFD460156Courtesy of FORD MOTOR COMPANY

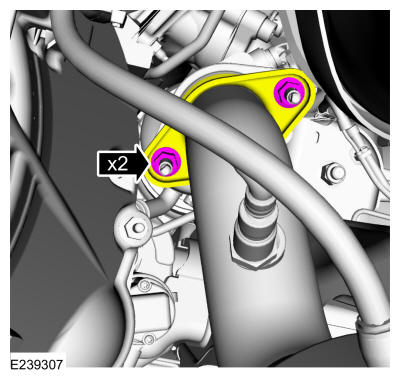

  23. Install the new RH catalytic converter-to-turbocharger nuts.

    Torque: 30 lb.ft (40 Nm)

    GFD460157Courtesy of FORD MOTOR COMPANY

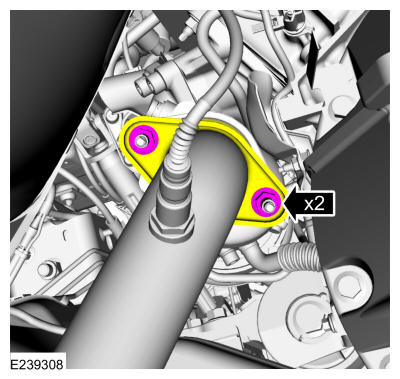

  24. Install the new LH catalytic converter-to-turbocharger nuts.

    Torque: 30 lb.ft (40 Nm)

    GFD460158Courtesy of FORD MOTOR COMPANY
  25. If equipped, install the front driveshaft. Refer to: Front Driveshaft .

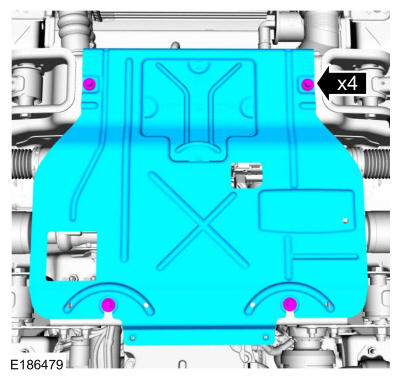

  26. If equipped, install the skid plate and the bolts.

    Torque: 30 lb.ft (40 Nm)

    GFD460139Courtesy of FORD MOTOR COMPANY
    • If equipped, install the underbody shield and the bolts.

      Torque: 30 lb.ft (40 Nm)

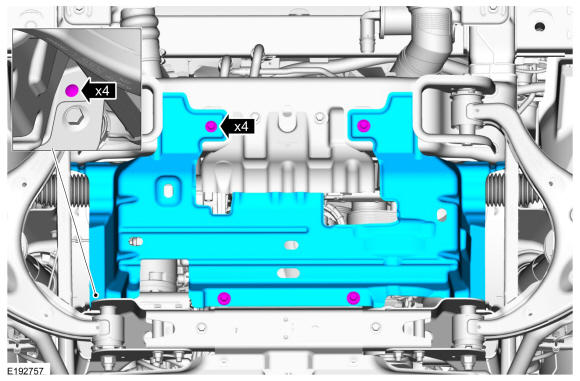

    • Install the pin-type retainers.

    GFD460138Courtesy of FORD MOTOR COMPANY
    • If equipped, install the transmission housing cover and attach the retainer.

    • Install the bolts.

      Torque: 71 lb.in (8 Nm)

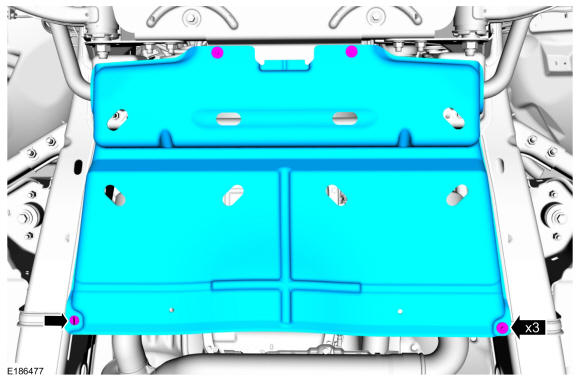

    GFD460137Courtesy of FORD MOTOR COMPANY

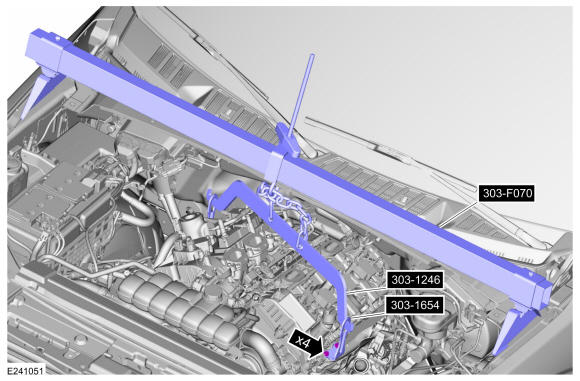

  27. Remove the special tools. Remove Special Service Tool: 303-F070 Support Bar, Engine, 303-1246 Engine Spreader Bar, 303-1654 Lift Eyes.
    GFD460136Courtesy of FORD MOTOR COMPANY
  28. Install the right rear ignition coil. Refer to: Ignition Coil-On-Plug .
  29. Install the intake manifold. Refer to: Intake Manifold .
  30. Install the CAC outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
  31. Install the CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
  32. Install the air cleaner. Refer to: Air Cleaner .
  33. Slide the engine appearance cover into the retaining bracket and install the retainers.

    Torque: 97 lb.in (11 Nm)

    GFD460099Courtesy of FORD MOTOR COMPANY
  34. NOTE: LH shown, RH similar.

    1. Position the hood shock and attach.
    2. Install the clip.

    GFD460159Courtesy of FORD MOTOR COMPANY
  35. Position the hood and install the nuts.

    Torque: 18 lb.ft (25 Nm)

    GFD459470Courtesy of FORD MOTOR COMPANY
  36. Start and check the exhaust system for leaks.
