Engine Mount LH - Raptor: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Use care when positioning the front axle housing or the vacuum lines to the axle solenoid may become disconnected or damaged.
NOTE: Discard all engine mount fasteners and install new fasteners.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. NOTE: RH shown, LH similar.

    Index-mark the hood hinge location.

    GFD459469Courtesy of FORD MOTOR COMPANY
  3. Remove the nuts and the hood.
    GFD459470Courtesy of FORD MOTOR COMPANY
  4. NOTE: LH shown, RH similar.

    1. Release the clip.
    2. Detach and position the hood shock aside.

    GFD460135Courtesy of FORD MOTOR COMPANY
  5. Remove the engine appearance cover retainers. Release the engine appearance cover from the rear retainers and then remove the engine appearance cover.
    GFD460131Courtesy of FORD MOTOR COMPANY
  6. Remove the air cleaner. Refer to: Air Cleaner .
  7. Remove CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe - Raptor .
  8. Remove CAC outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe - Raptor .
  9. Remove the intake manifold. Refer to: Intake Manifold - Raptor .
  10. Remove the right rear ignition coil. Refer to: Ignition Coil-On-Plug .
  11. Install the special tools. Install Special Service Tool: 303-F070 Support Bar, Engine, 303-1246 Engine Spreader Bar, 303-1654 Lift Eyes.

    Torque: 18 lb.ft (25 Nm)

    GFD460136Courtesy of FORD MOTOR COMPANY
  12. Remove the bolts and the transmission housing cover.
    GFD460160Courtesy of FORD MOTOR COMPANY
  13. Remove the bolts and the underbody shield.
    GFD460161Courtesy of FORD MOTOR COMPANY
  14. Remove the bolts and the skid plate.
    GFD460162Courtesy of FORD MOTOR COMPANY
  15. Remove the front driveshaft. Refer to: Front Driveshaft .
  16. NOTE: Make sure that the mating faces are clean and free of foreign material.

    Remove and discard the LH catalytic converter flange nuts.

    GFD460140Courtesy of FORD MOTOR COMPANY
  17. NOTE: Make sure that the mating faces are clean and free of foreign material.

    Remove and discard the RH catalytic converter flange nuts.

    GFD460141Courtesy of FORD MOTOR COMPANY
    • NOTE: Make sure that the mating faces are clean and free of foreign material.
      NOTE: Support the exhaust intermediate pipe prior to removing the bolts or damage to the flex pipe may occur.

      Remove the exhaust flange bolts and separate the pipe.

    • Position the catalytic converter assembly back.

    GFD458871Courtesy of FORD MOTOR COMPANY
  19. NOTE: Only use hand tools when removing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Loosen the transmission mount-to-crossmember nuts.

    GFD458872Courtesy of FORD MOTOR COMPANY
  20. NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Remove and discard the RH engine mount through bolt.

    GFD460142Courtesy of FORD MOTOR COMPANY
  21. NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Remove and discard the LH engine mount through bolt.

    GFD460143Courtesy of FORD MOTOR COMPANY
  22. Raise the engine approximately 30 mm (1.18 in).
  23. NOTE: Only use hand tools when removing or installing the engine mount-to-frame bolts or damage to the engine mount-to-frame nut plate can occur.

    Remove and discard the LH engine mount-to-frame bolts.

    GFD460144Courtesy of FORD MOTOR COMPANY
  24. Using a holding device, hold the steering wheel in the straight-ahead position.
    GFD458607Courtesy of FORD MOTOR COMPANY
    1. WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

      Remove and discard the steering column shaft bolt.

    2. Separate the steering column shaft U-joint from the steering gear.
    GFD458873Courtesy of FORD MOTOR COMPANY
  26. Remove the steering gear boot.
    GFD458874Courtesy of FORD MOTOR COMPANY
  27. Using an adjustable stand, support the front axle. Use the General Equipment: Vehicle/Axle Stands
    GFD458875Courtesy of FORD MOTOR COMPANY
  28. Remove and discard the lower front axle carrier mounting bushing bolt.
    GFD458876Courtesy of FORD MOTOR COMPANY
  29. Remove and discard the axle shaft housing carrier bushing nut and the bolt.
    GFD458877Courtesy of FORD MOTOR COMPANY
  30. NOTE: After loosening the bolt, it may be necessary to reposition the axle assembly to prevent interference with the steering components when removing the bolt.

    Remove and discard the upper front axle carrier mounting bushing nut and the bolt.

    GFD458878Courtesy of FORD MOTOR COMPANY
  31. Using an adjustable stand, lower the axle to allow clearance for the LH engine mount to be removed. Use the General Equipment: Vehicle/Axle Stands
    GFD458879Courtesy of FORD MOTOR COMPANY
  32. Remove the LH engine mount.
    GFD460145Courtesy of FORD MOTOR COMPANY
    1. Inspect the engine mount-to-frame nut plate for thread damage.
    2. If the nut plate is damaged, remove and discard the engine mount-to-frame nut plate.
    GFD458885Courtesy of FORD MOTOR COMPANY
  34. NOTE: If necessary, the following 4 steps are to remove the LH engine mount-to-cylinder block bracket.

    Detach the generator wiring harness from the oil filter adapter.

    GFD460146Courtesy of FORD MOTOR COMPANY
  35. Detach the generator wiring harness from the engine front cover.
    GFD460147Courtesy of FORD MOTOR COMPANY
  36. Detach the generator wiring harness retainer from the engine block.
    GFD460148Courtesy of FORD MOTOR COMPANY

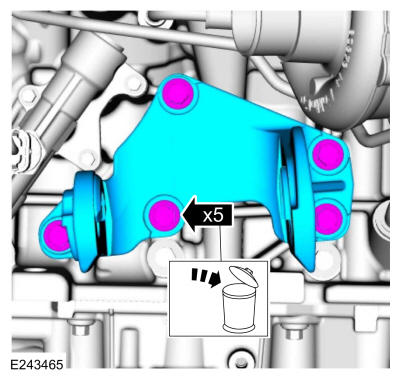

  37. Remove the bolts and the LH engine mount-to-cylinder block bracket. Discard the bolts.
GFD460163Courtesy of FORD MOTOR COMPANY
