Engine Front Cover: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

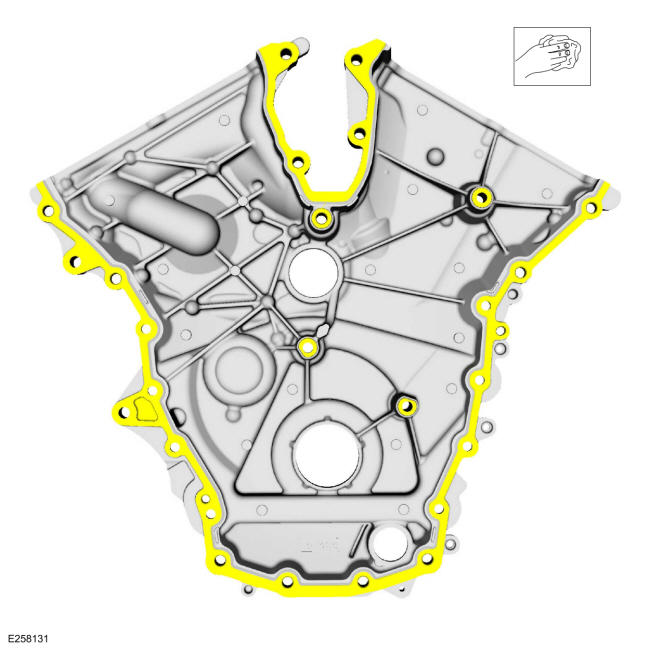

  1. GFD460117Courtesy of FORD MOTOR COMPANY

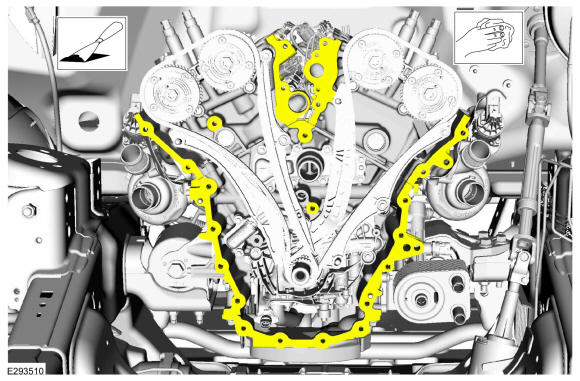

  2. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
    GFD460118Courtesy of FORD MOTOR COMPANY

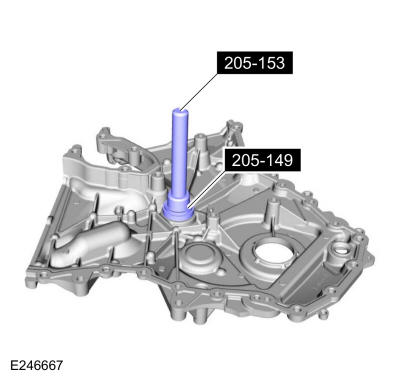

  3. Using the special tools, install the new engine front cover to coolant pipe seal. Use Special Service Tool: 205-149 (T80T-4000-R) Installer, Spindle Bearing, 205-153 (T80T-4000-W) Handle.
    GFD460119Courtesy of FORD MOTOR COMPANY
  4. Install Special Service Tool: 307-399 Alignment Pins, Transmission Fluid Pump.
    GFD460120Courtesy of FORD MOTOR COMPANY

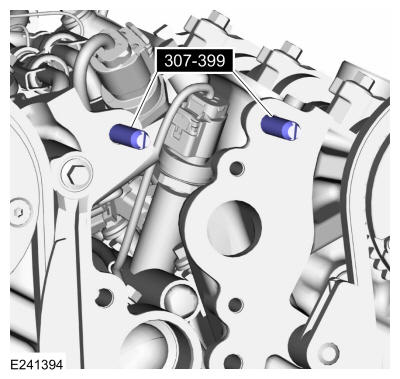

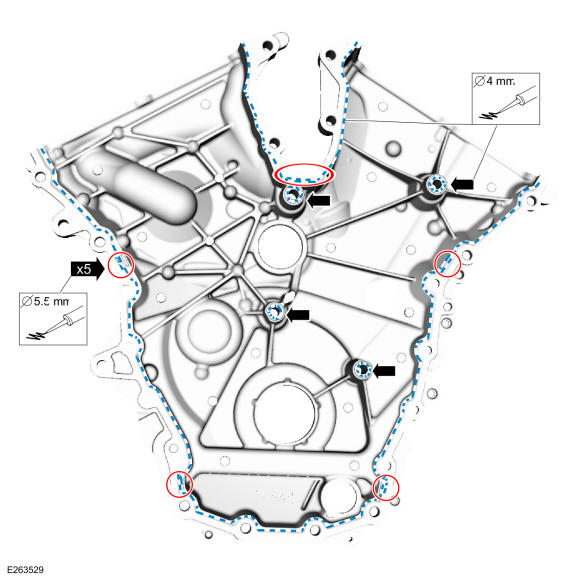

    • NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
      NOTE: The engine front cover and the 6 bolts must be installed within 4 minutes of the initial sealant application. The remainder of the engine front cover bolts must be installed and tightened within 35 minutes of the initial sealant application. If the time limits are exceeded, the sealant must be removed, the sealing area cleaned and sealant reapplied. To clean the sealing area, use silicone gasket remover and metal surface prep. Failure to follow this procedure can cause future oil leakage.

      Apply a 4.0 mm (0.16 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover sealing surfaces including the inner bolt bosses.

      Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    • Apply a 5.5 mm (0.21 in) bead of Motorcraft® High Performance Engine RTV Silicone to the oil pan-to-cylinder block joint and the cylinder head-to-cylinder block joint areas of the engine front cover in places as indicated.

      Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD460121Courtesy of FORD MOTOR COMPANY
  5. NOTE: Make sure the 2 locating dowel pins are seated correctly in the cylinder block.

    Install the engine front cover and the bolts.

    Torque: 27 lb.in (3 Nm)

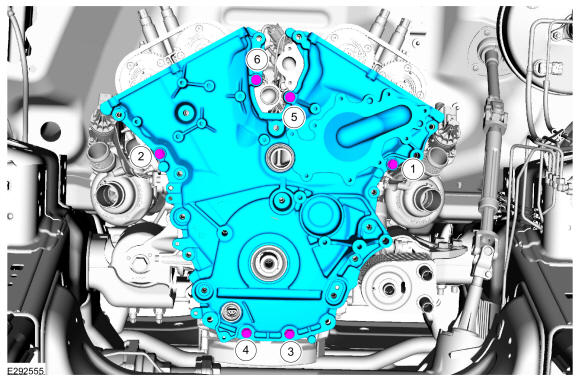

    Fig 1: Engine Front Cover Tightening Sequence (1 of 2)
    GFD460122Courtesy of FORD MOTOR COMPANY

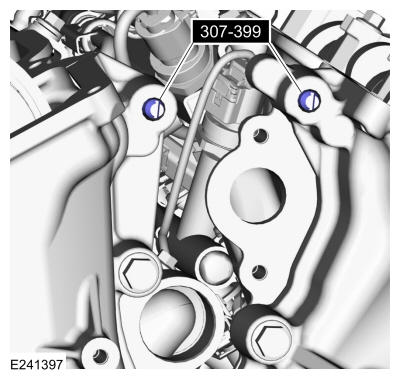

  6. Remove Special Service Tool: 307-399 Alignment Pins, Transmission Fluid Pump.
    GFD460123Courtesy of FORD MOTOR COMPANY
  7. Install the engine front cover bolts. Tighten in the sequence shown below in 2 stages.

    Torque: Stage 1: Tighten bolts 1 through 24 to: 177 lb.in (20 Nm) | Stage 2: Tighten bolt 1 through 24 an additional: 45°

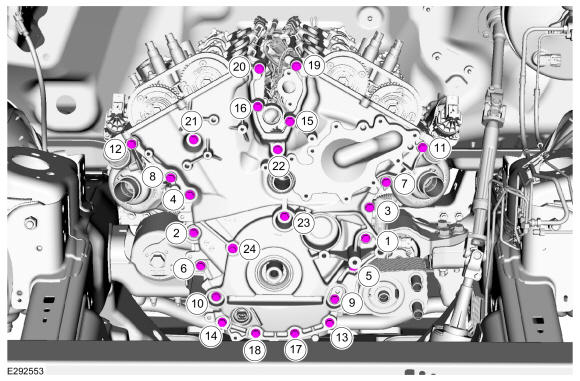

    Fig 2: Engine Front Cover Tightening Sequence (2 of 2)
    GFD460124Courtesy of FORD MOTOR COMPANY

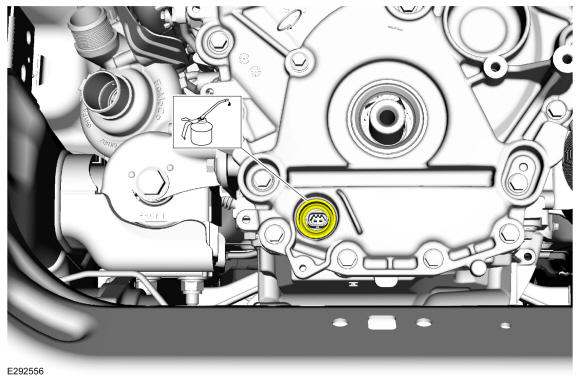

  8. With clean oil, lubricate and position the new oil pump electrical connector seal.
    GFD460125Courtesy of FORD MOTOR COMPANY

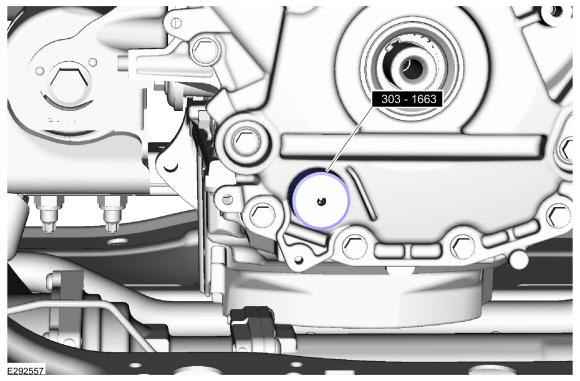

  9. NOTE: If the oil pump electrical connector seal is not properly installed, it may result in oil leakage.

    Using the special tool, install the oil pump electrical connector seal. Install Special Service Tool: 303-1663 Installer, VDOP Seal.

    GFD460126Courtesy of FORD MOTOR COMPANY

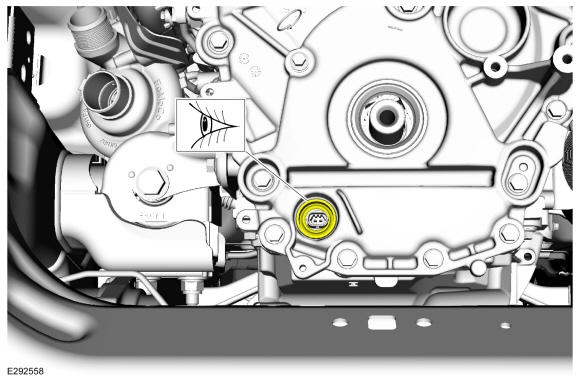

  10. NOTE: The front surface of the oil pump electrical connector seal will be level with the engine front cover recess.

    Inspect the oil pump electrical connector seal for proper installation.

    GFD460127Courtesy of FORD MOTOR COMPANY
  11. Install the transmission cooler bracket stud.
    GFD460112Courtesy of FORD MOTOR COMPANY

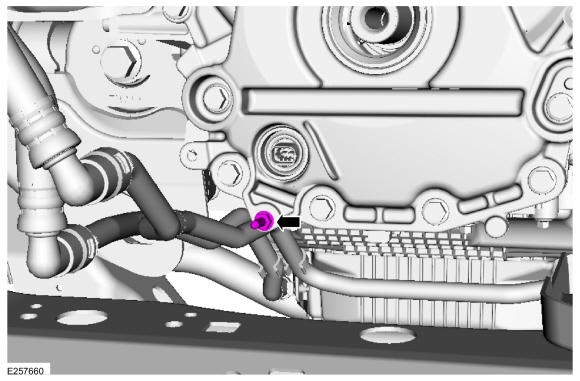

  12. Position back the engine wiring harness. Position back the transmission cooler tube bracket and install the nut.

    Torque: 106 lb.in (12 Nm)

    GFD460111Courtesy of FORD MOTOR COMPANY

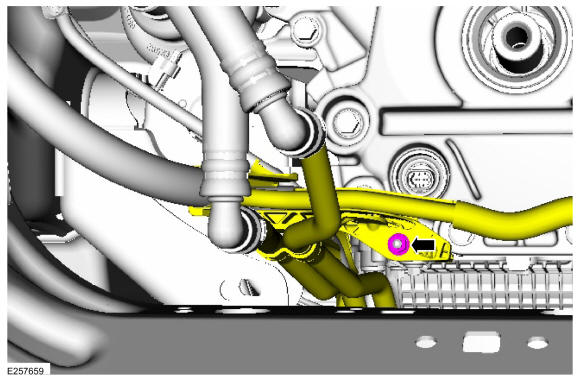

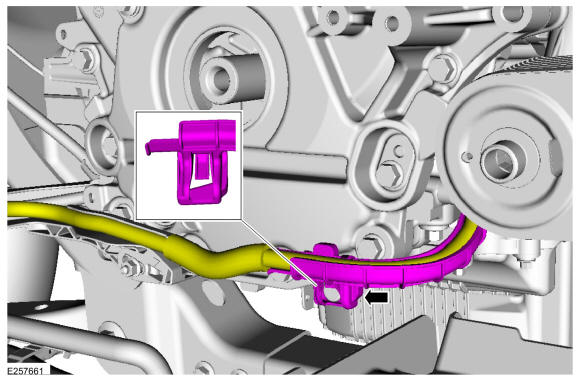

  13. Connect the generator wiring to the engine front cover.
    GFD460110Courtesy of FORD MOTOR COMPANY

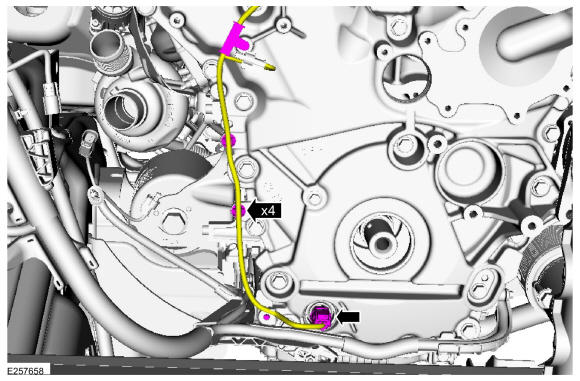

  14. Install the pin-type retainers and connect the oil pump electrical connector.
    GFD460108Courtesy of FORD MOTOR COMPANY
  15. Attach the starter motor wiring harness and retainer to the oil pan.
    GFD460109Courtesy of FORD MOTOR COMPANY

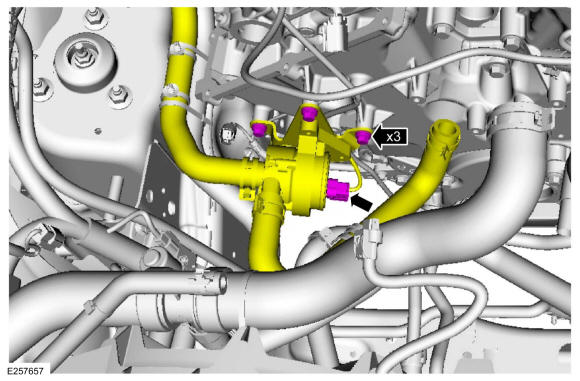

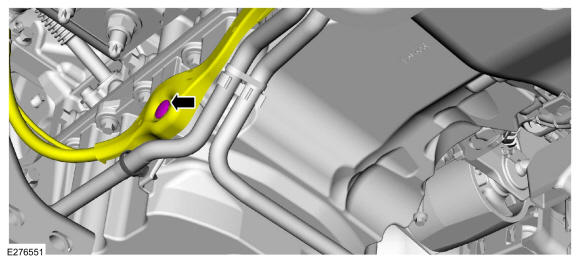

  16. Install the cabin heater coolant pump and bolts. Connect the electrical connector.

    Torque: 62 lb.in (7 Nm)

    GFD460107Courtesy of FORD MOTOR COMPANY
    • Install the accessory drive belt tensioner and bolts.

      Torque: 18 lb.ft (25 Nm)

    • Install the accessory drive belt idler pulley and bolt.

      Torque: 18 lb.ft (25 Nm)

    GFD460106Courtesy of FORD MOTOR COMPANY

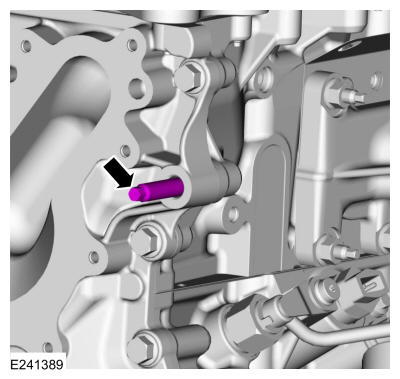

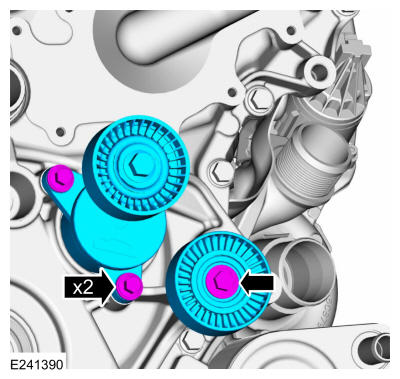

  17. Install the generator stud.

    Torque: 71 lb.in (8 Nm)

    GFD460105Courtesy of FORD MOTOR COMPANY
  18. Position back the generator. Install the nut and the bolt.

    Torque: 35 lb.ft (48 Nm)

    GFD460104Courtesy of FORD MOTOR COMPANY

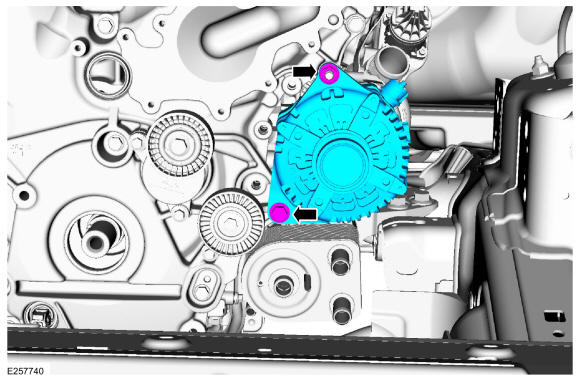

  19. NOTE: When installing the B+ terminal nut to the generator, finger-start the nut before tightening or component damage may occur.

    Install the B+ wire and nut, position back the protective cover and connect the electrical connector.

    Torque: 150 lb.in (17 Nm)

    GFD460128Courtesy of FORD MOTOR COMPANY

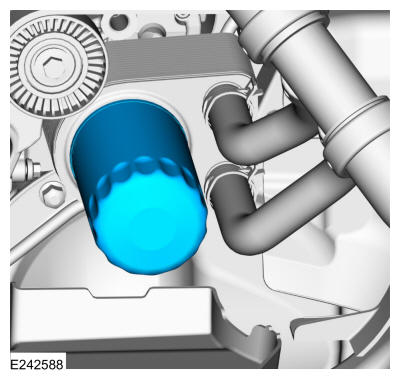

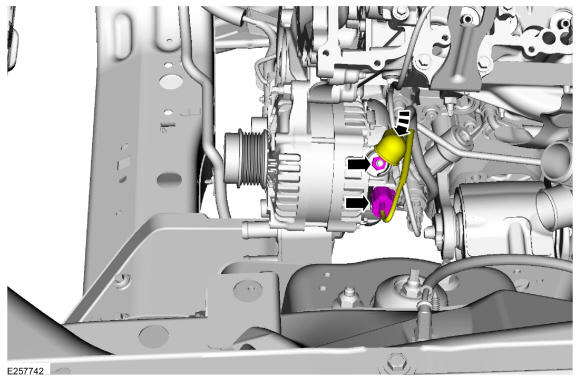

  20. NOTE: Do not lubricate the engine oil filter seal.

    Install a new engine oil filter.

    Torque: Stage 1: 44 lb.in (5 Nm) | Stage 2: 180°

    GFD460129Courtesy of FORD MOTOR COMPANY
  21. If equipped, install the transmission shield and retainers.

    Torque: 71 lb.in (8 Nm)

    GFD460100Courtesy of FORD MOTOR COMPANY

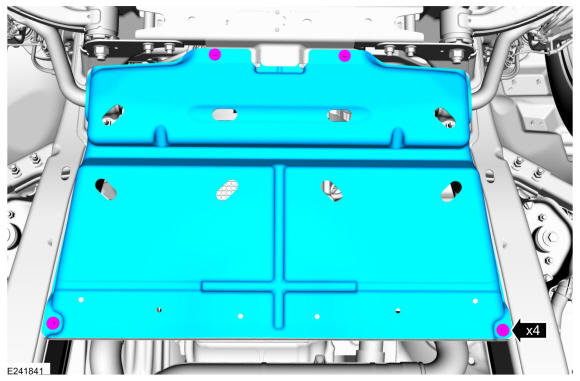

  22. Install the following items:

    1. Install the crankshaft front seal. Refer to: Crankshaft Front Seal .
    2. Install the coolant pump. Refer to: Coolant Pump .
    3. Install the thermostat housing. Refer to: Thermostat Housing .
    4. Install the RH valve cover. Refer to: Valve Cover RH .
    5. Install the LH valve cover. Refer to: Valve Cover LH .
    6. Install the charge air cooler outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .

  23. Slide the engine appearance cover into the retaining bracket and install the retainers.

    Torque: 97 lb.in (11 Nm)

    GFD460099Courtesy of FORD MOTOR COMPANY

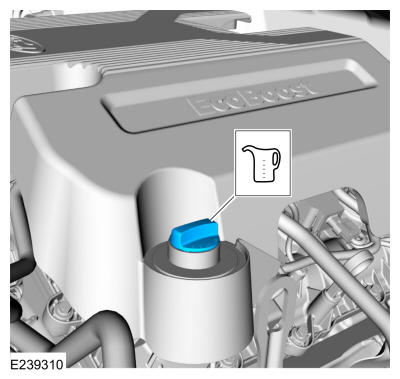

  24. Fill the engine with clean engine oil. Refer to: Specifications - Raptor .

    Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    GFD460130Courtesy of FORD MOTOR COMPANY
  25. Pressurize the fuel system. Refer to: Fuel System Pressure Release .
  26. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
