Crankshaft Front Seal: Installation
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

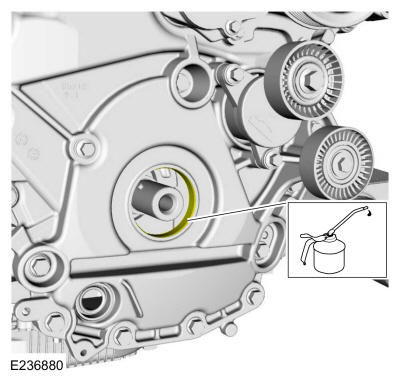

- Lubricate the crankshaft front seal bore with clean engine oil. Refer to: SPECIFICATIONS .

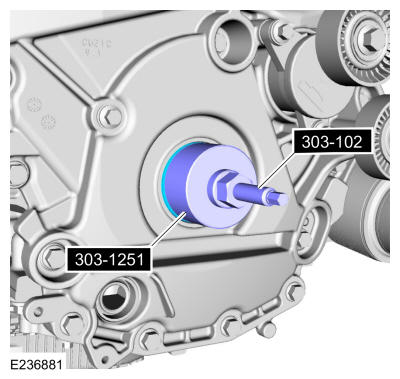

- Using the special tools, install the crankshaft front seal. Use Special Service Tool: 303-102 Installer, Crankshaft Pulley, 303-1251 Installer, Front Seal.

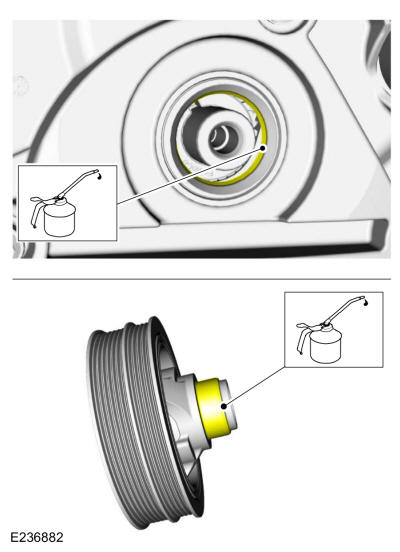

- Lubricate the crankshaft front seal and the crankshaft pulley with clean engine oil. Refer to: SPECIFICATIONS .

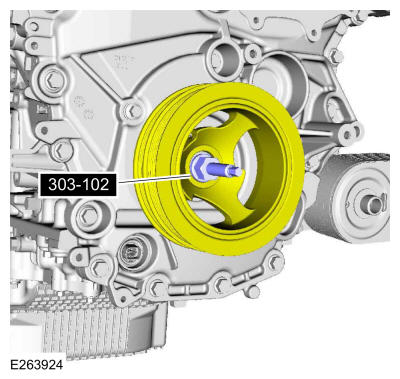

- Using the special tools, install the crankshaft pulley. Use Special Service Tool: 303-102 Installer, Crankshaft Pulley.

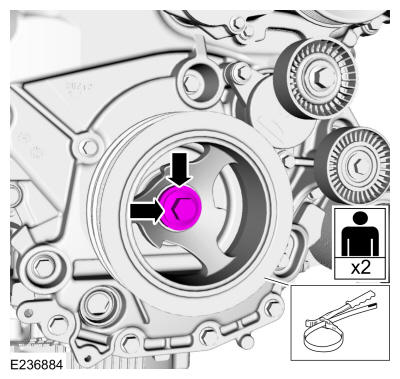

- Using the strap wrench, install the new crankshaft bolt and the washer and tighten in 3 stages. Use the General Equipment: Strap Wrench
Torque: Stage 1: 37 lb.ft (50 Nm) | Stage 2: 90° | Stage 3: 60°
- Install the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
- After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
