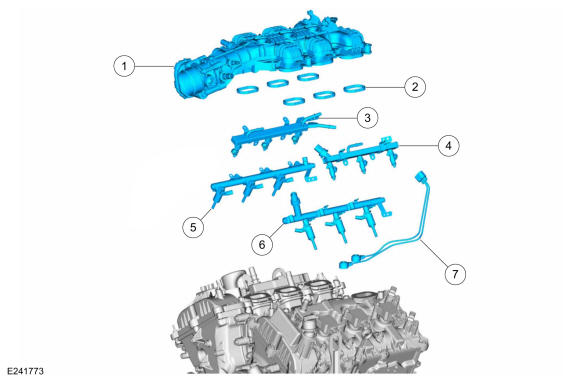

Exploded View Of Engine Upper
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Part Number |
Description |
| 1 |
9424 |
Intake manifold |
| 2 |
9H486 |
Intake manifold gasket |
| 3 |
9H487 |
Port injection fuel rail RH |
| 4 |
9H487 |
Port injection fuel rail LH |
| 5 |
9F797 |
Direct injection fuel rail RH |
| 6 |
9F797 |
Direct injection fuel rail LH |
| 7 |
12A699 |
Knock Sensor (KS) |
